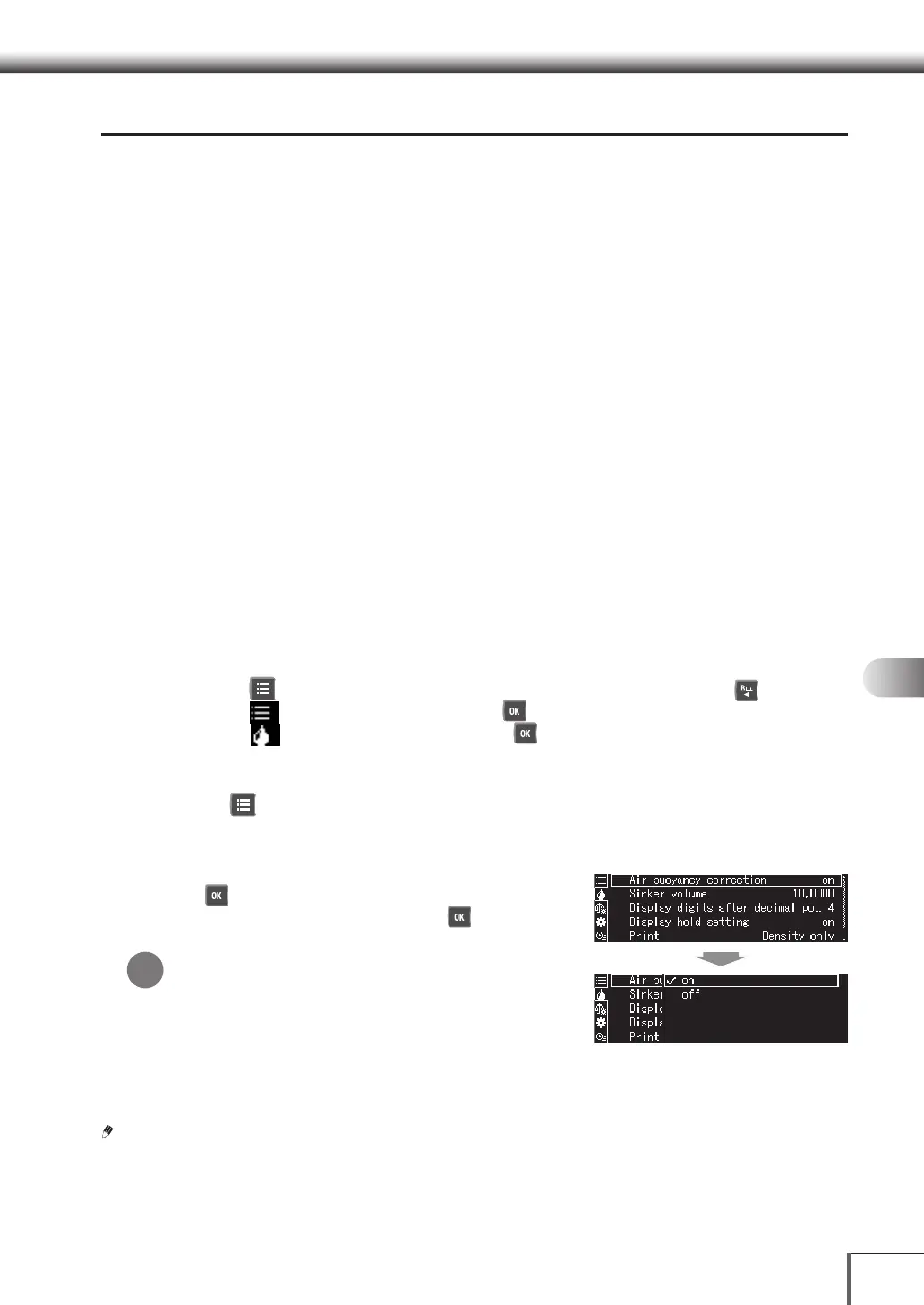

77 ApplicationsApplications

Measuring Liquid Density (Liquid density)
This function measures the weight of sinkers (solids) which its weight is already known in air and in the
targeted liquid, and then calculates their liquid density.
The procedures explained below are for when the user has prepared a suspension pan and water tank.
Measuring specific gravity can also be carried out more easily with the use of the optional simplified
specific gravity measurement kit SMK-601. See the instruction manual supplied with the kit for details.
Refer specific gravity measurement kit instruction manual for usage methods when using the kit.
 Preparing to Measure Liquid density
1. Make the preparations for measuring in air and in liquid
Make sure the AC adapter has been disconnected from the balance before attempting
installation.
^ [Ending Measurements] (P.34)
[Using the simplified specific gravity measurement kit]
Install the simplified specific gravity measurement kit inside the draft shield while referring
to the [SMK-601 Simplified Specific Gravity Measurement Kit Instruction Manual].
[Using the balance’s Below - weight hook]
Suspend a suspension pan (provided separately) on the Below - weight hook, and then
submerge the pan in the water tank liquid.
When the installation is complete, turn ON the power supply for the balance and set to the weight
display.
^ [Turning on the Power] (P.26)
2. Set the Liquid density mode
(1) Press [ MENU] while in the weight measurement mode, and then press [ LEFT].
(2) Select [ Select Mode], and then press [ OK].
(3) Select [ Liquid Density], and then press [ OK].
3. Start the Liquid density settings
Press [ MENU].
4. Set the Air Buoyancy Correction at ON or OFF
(1) Select [Air Buoyancy Correction], and then press
[ OK].
(2) Select [on] or [off], and then press [ OK].
The AP Series can carry out calculation which
includes air buoyancy correction and calculation
which does not include air buoyancy correction.
Which formula to use can be selected in the [Air
Buoyancy Correction].
Refer to the following for details on Air Buoyancy Correction.
^ [Solid specific gravity, liquid density calculation formulas] (P.97)
The [Air Buoyancy Correction Setting] function is included in software versions 1.01.28 and
later, and 1.01.I.01 and later. The [Air Buoyancy Correction Setting] function is not included in
versions older than 1.01.28 or 1.01.I.01.
Refer to the following for details on how to verify the software version.
^ [Software Version Verification Method] (P.26)
*
Precautions
