Connecting Personal Computers
It is possible to output weight values, setting statuses
and other data to personal computers in the same way
as with printers with the use of USB cables. USB cables
are available as options (S321-71730-42 USB cable
set). Connect personal computers to the balance in
accordance with the following procedures.
1.
Switch off the power to the
balance.
2.
Connect the USB cable between
the USB connector on the PC and
the [USB DEVICE] connector on
the rear of the balance.
3.
Switch on the power to the
balance.
4.
The USB driver will be
automatically installed on the PC.
If the USB driver does not install correctly
There are cases in which the USB driver will not be installed correctly if the personal computer
concerned is not connected to the Internet (not connected to a LAN).
In this event, download the following instruction manual and USB driver from the Internet, and
perform the installation procedure once again.
USB Interface Driver and Installation Manual Download Page
https://www.shimadzu.com/an/balance/moisture/moc63u3.html
5.
Downloading the [Multi-Balance Collect] and [Balance Keys]
weighing data capture software (free software) onto a PC
For customers who want to directly import balance data to a PC, we offer the [Multi-Balance
Collect] and [Balance Keys] weighing data capture software which run on Windows
®
10.
(1) Log into a personal computer equipped with Internet access with administrator authority.
(2) Start up the browser, and access the following site.
https://www.shimadzu.com/an/balance/index.html
(3) Click on the [Download] link for the software which you wish to download on the [Multi-
Balance Collect] and [Balance Keys] weighing data capture software download page and
follow the on-screen instructions to download the files.
[Multi-Balance Collect] and [Balance Keys] features
1. Balance data is directly collected in a Windows
®
application using an interface which is
similar to keyboard input.
2. This eliminates copying mistakes, increases work efficiency, and improves data reliability.
3. The software searches for usable serial ports and allows for easy configuration and
communication tests.
Refer to the following website for differences between [Multi-Balance Collect] and [Balance
Keys].
https://www.an.shimadzu.co.jp/balance/products/balance_keys/index.htm

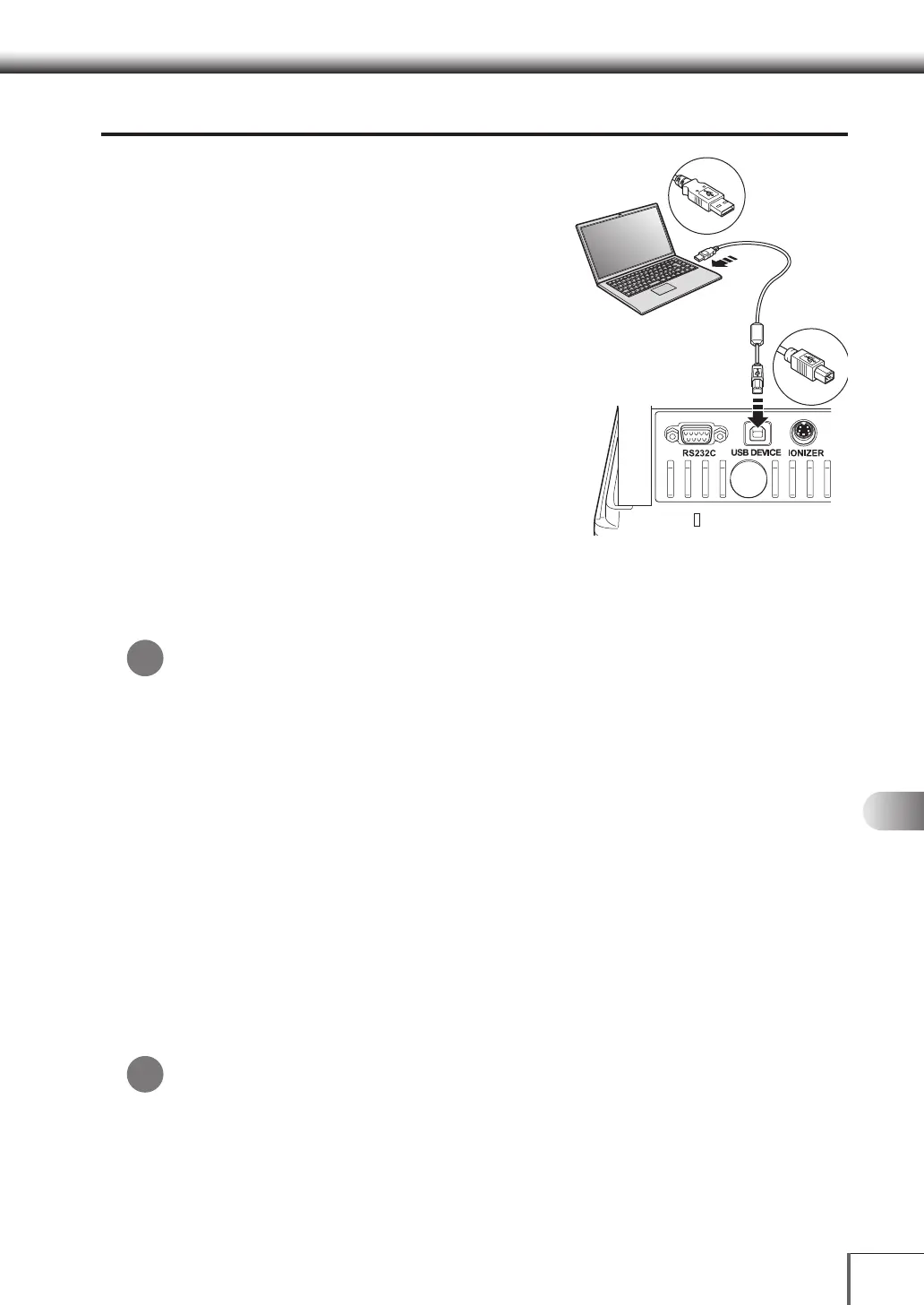

PC
Rear of the balance
Connect with a USB Cable
(A-B type)
*
*
