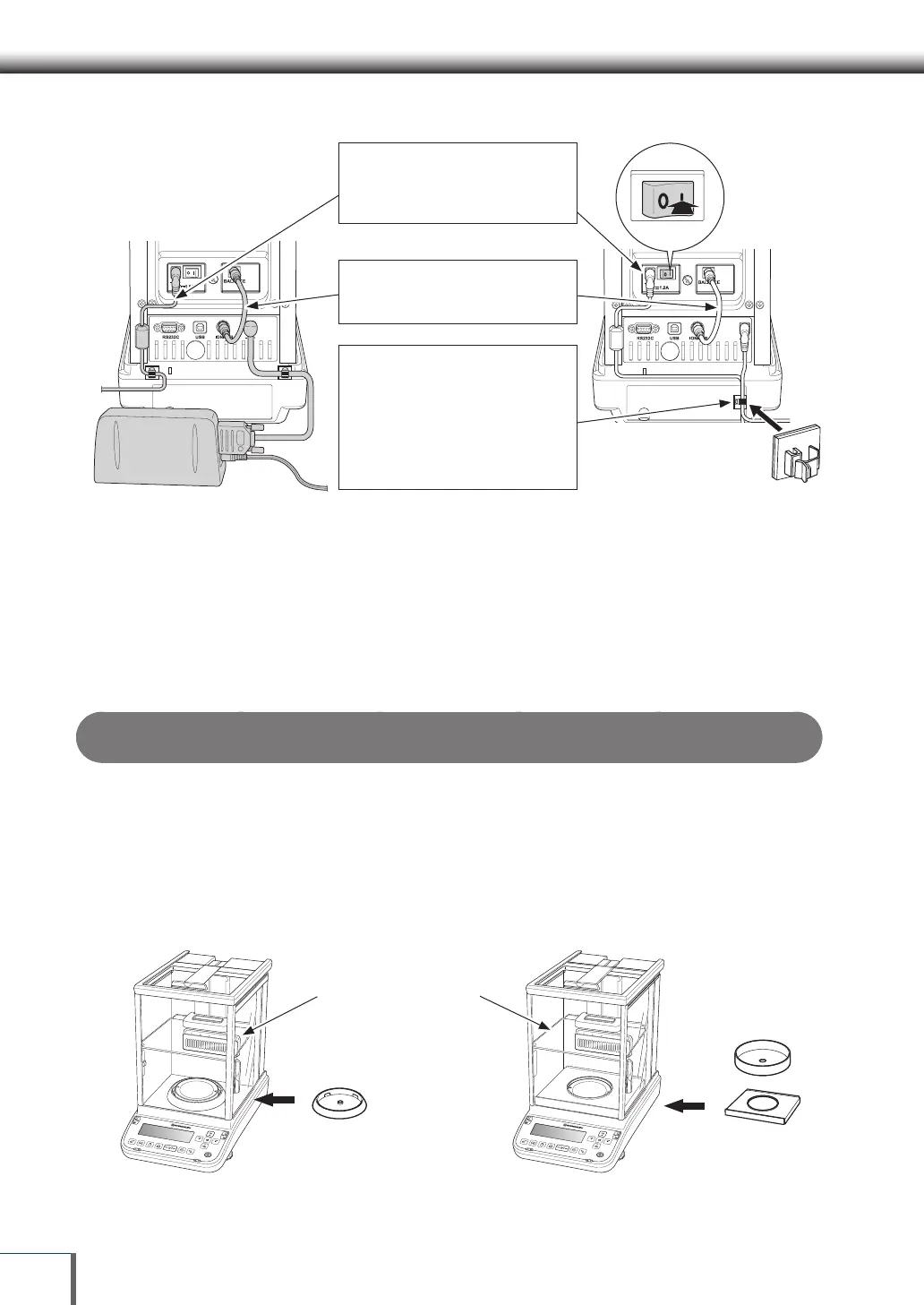

11 SetupSetup
semi-micro models Except semi-micro models
Insert the connected ionizer AC
adapter and AC cord into the DC IN
connector (for the ionizer). Connect the
ionizer power plug to a power outlet.
Connect the ionizer connectors (2
connectors) on the back of the ionizer
using the ionizer connection cable.
Attach the adapter cable holder on
the back of the main body at the
location shown in the figure. Remove
the backing paper from the holder
to expose the adhesive surface, and
then press the adhesive surface to the
main body in the orientation shown in
the figure.
7. Attach the parts around the pan and the protective cover
Two different configurations are available for the structure around the weighing pan in the W-AD
Series.
If using the shield plate, refer to the procedures starting from step “2. Attach the shield plate” on
page 21.
If using the shield case and stage, refer to the procedures starting from step “1. Attach the
shield case” on page 22.
Refer to “Pan area configuration and weighing performance (W-AD Series)” on this page for
information on selecting which pan area configuration to use.
Pan area conguration and weighing performance (W-AD Series)
Two different configurations are available for the structure around the weighing pan in the W-AD Series
((1) and (2) below).
Select one of the configurations based on the samples to be measured and ambient conditions while
referring to the following.
(1) Using the shield plate
This configuration should be used under normal
circumstances.
This is a simple pan area configuration, which makes
cleaning easier.
(2) Using the shield case and stage
This configuration should be used when you wish
to minimize the impact of air currents resulting from
temperature changes.
POWER
ION
ALARM
POWER
ION
ALARM
Shield plate
Stage
Shield case
Adjustable Windbreak Plate
Allows for easier removal of the pan and easier cleaning.
Also allows for easy measurement even if samples are
larger than the pan.
Reduces the impact of air currents inside the weighing
chamber resulting from temperature changes caused by
air conditioning, and allows for greater responsiveness
and stability.
When measuring using medicine wrapping paper,
microtubes, etc., use the included multi-stand.
