18
11 SetupSetup

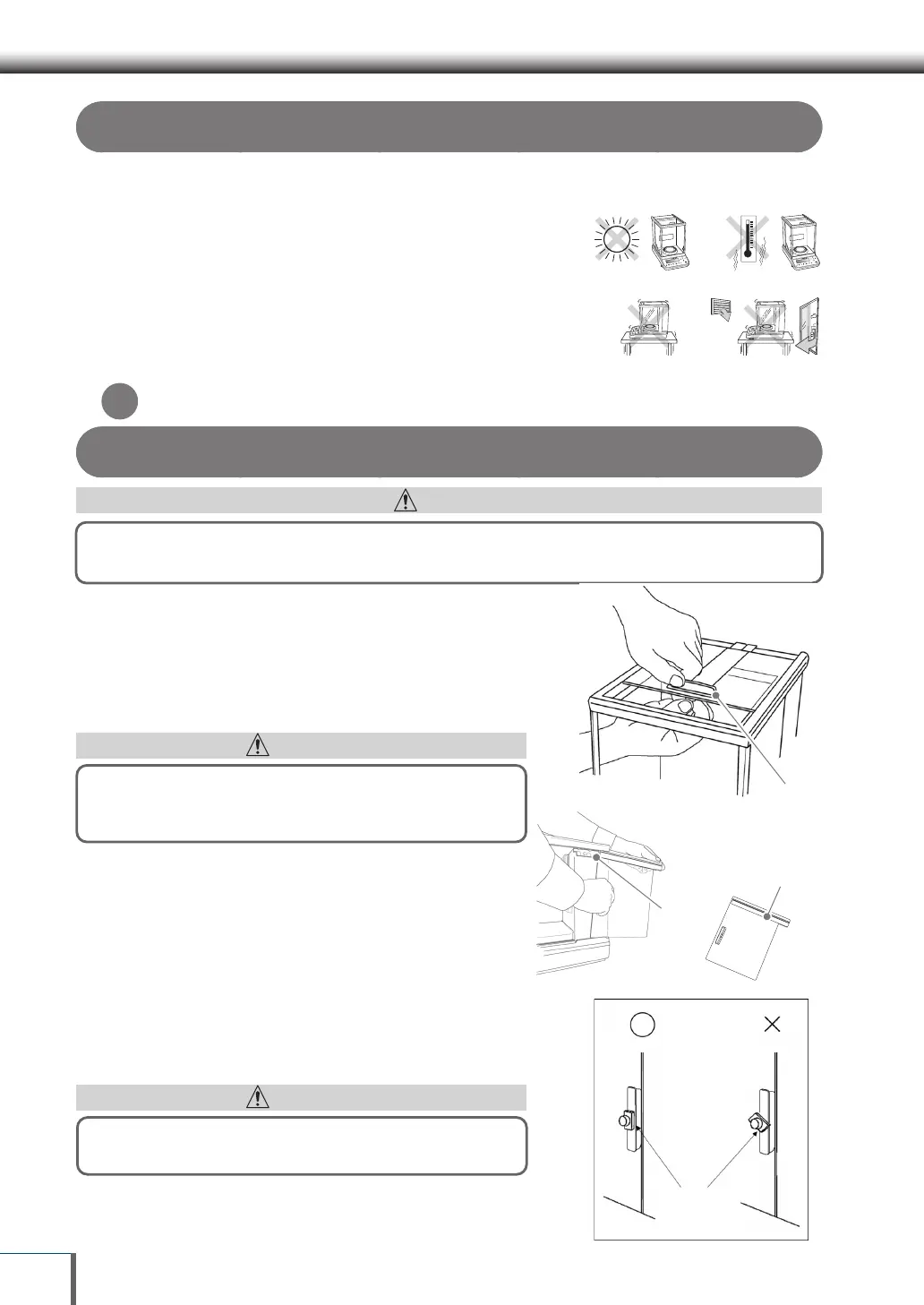

Deciding on an Installation Environment
The environment in which the balance is installed has an enormous effect on its performance.
It is therefore necessary to avoid the following environments and chose an appropriate environment
in order to ensure accurate and reliable measurement results. Install the balance on a flat surface in a
location with minimal vibrations.
* Avoid the following installation environments
(see the illustrations below).
- Environments with vibrations.
- Environments with direct sunlight.
- Environments with air currents from air-conditioners, ventilators,
open doors and windows, etc.
- Environments with extreme temperature changes,or high/low
temperature, or high/low humidity.
Observe the instructions listed in ^ [Safety Precautions] (P.5) to ensure safe measurements.
Using a verified balance as a legal measuring instrument in the EU:
The balance must be used within the temperature range indicated on the verification label.
Parts attachment (W-AD Series)
CAUTION
Verify that the stopper knobs are attached to the glass doors (top, left, right) before turning ON the power. Failure to do
so could result in the glass doors being damaged.
1. Attach the glass door (top)
As shown in the figure to the right, insert the glass
door (top) handle towards the front of the top
section, and attach the stopper knob from inside the
weighing chamber so that it is parallel to the handle.
CAUTION
If the stopper part of the stopper knob sticks out further than the
handle, the door will not close fully, so attach so that it is parallel to
the handle. Refer to the figure on the right.
2. Attach the glass door (right)
As shown in the figure to the right; hold the glass door
(right) handle with your right hand, and the top edge
with your left hand, and lay the bottom edge of the glass
door into the groove of the balance main body rail.
Align the rail with the main body top groove, and
raise your left hand slightly to move the glass door
into a horizontal position while slowly inserting.
Close the glass door half way, and attach the stopper
knob from inside the weighing chamber so that it is
parallel to the handle, then fully close the glass door.
CAUTION
Be careful not to touch, or get any dirt or debris into the glass door rack
gear or main body pinion gear, etc. Doing so could result in damage.
3. Attach the glass door (left)
Attach using the same procedure as for the glass
door (right).
*
Pinion gear
Rack gear of
Glass draft shield
handle
stopper knob
To Next Page
