MaintenanceMaintenance


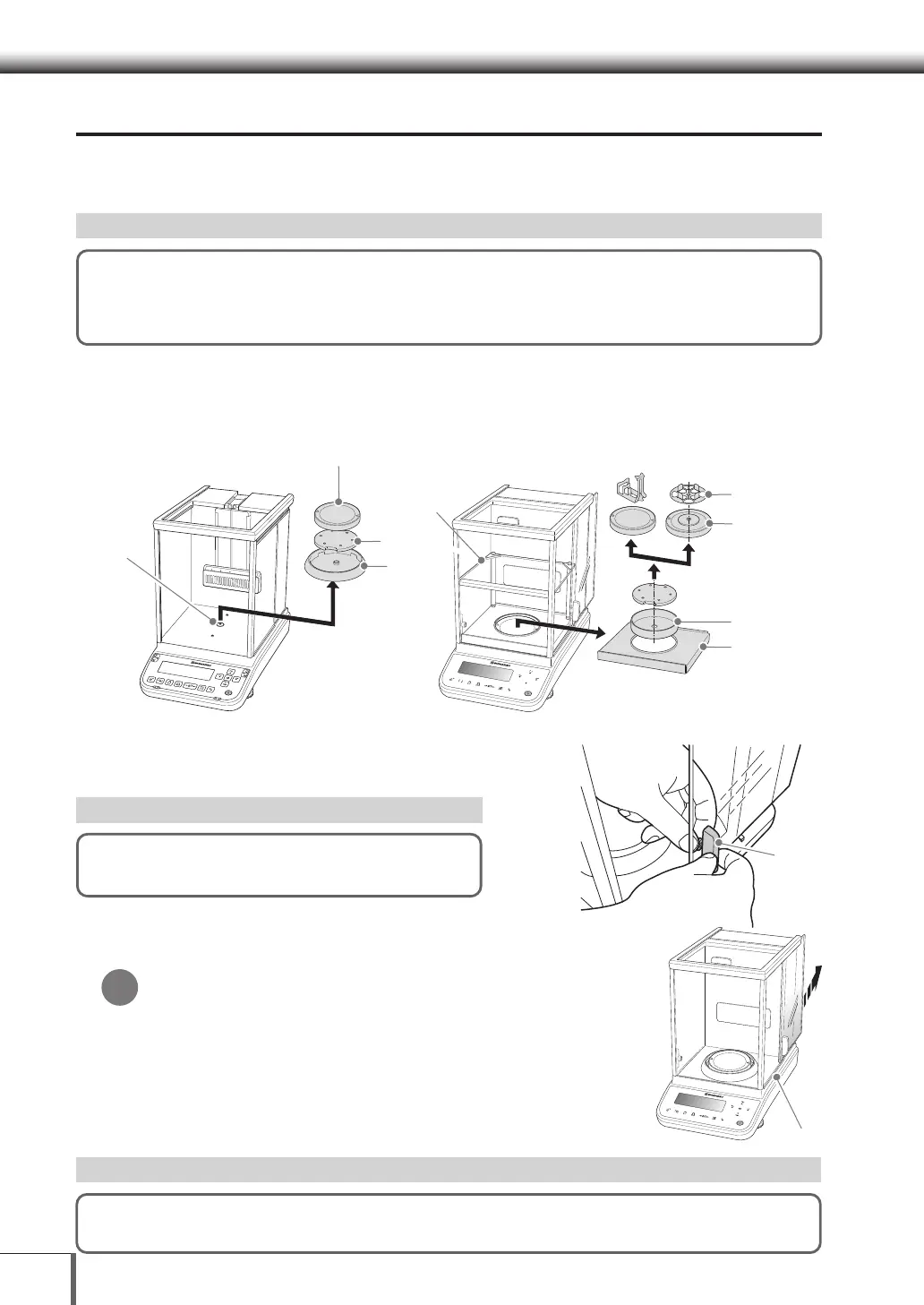

Removing the Glass Draft Shield
It is possible to remove the glass draft shield to clean the door rails.
Refer to ^ [Parts attachment (W-AD Series)] (P.18) for details on W-AD Series glass door and
Adjustable Windbreak Plate removal.
!
CAUTION
Handle the glass door with due care.
· Take care when handling the glass door so as not to crack it.
· Take care not to injure your hands on the door rail.
· Exercise due care when handling broken glass
1.
Remove the pan, the pan supporter, the shield plate, the
Adjustable Windbreak Plate, the stage, the shield case, the
multi-stand and AP Holder.
For AP225W only
OK
FUNC
g
d
POWER
ION
ALARM
Pan support
shaft
Draft shield
inner plate
(option)
Pan
Pan
supporter
Shield
Plate
Shield case
Pan for fixing
the multi-
stand
Stage
multi-stand etc.
For semi-micro models
2.
Turn the knob on the inner side of the
handle to remove the handle
!
Prohibit
Do not touch the pan support shaft.
This could damage the balance.
3. Pull the glass door out from the rear
Replacing the door rails
It is possible to replace the door rails on the left and right of the
glass draft shield in the event of them wearing down or it being
impossible to remove soiling. The door rails are easily removed by
lifting them upwards from the bottom. (excluding the W-AD Series)
4.
Install the glass door following the steps in
reverse order when it is removed
!
CAUTION
When fitting the glass door, be sure to fit the knob.
If you forget to attach the knob, the glass door could fall off.
Handle
Door rails
*
