Operating instructions Distance measuring device DL100 – CANopen®
Accessories
15.3 Mounting systems
15.3.1 Alignment bracket
130.8
(5.15)
75.7 (2.98)
85.3 (3.36)
max. 120.8 (4.76)
126
(4.96)
126 (4.96)
Ø 5.4
(0.21)
5
(0.20)
5
(0.20)
5
(0.20)
5
(0.20)
48
(1.89)
48 (1.89)
12.7
(0.50)
137 (5.39)
14.5
(0.57)
All dimensions in mm (inch)

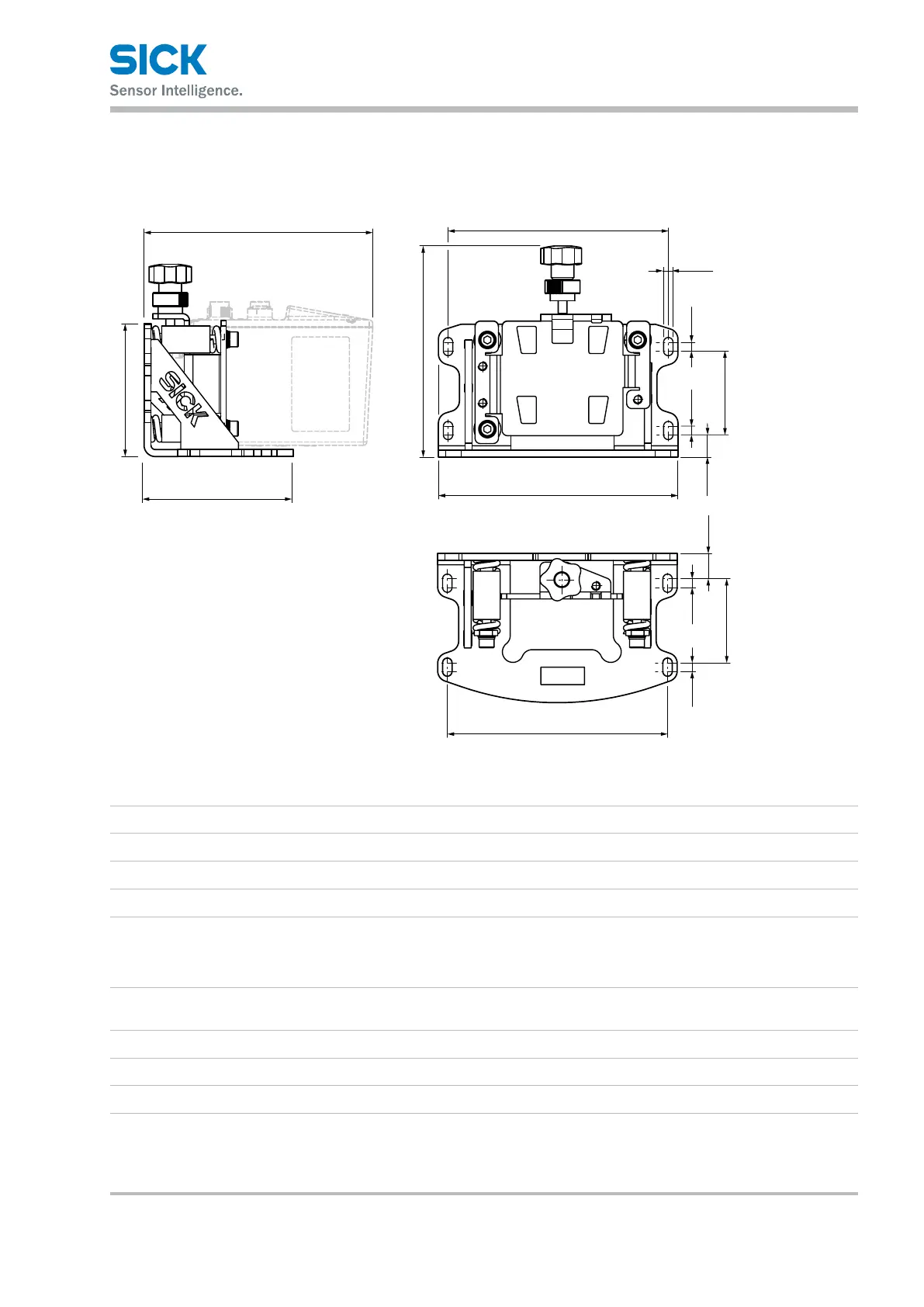

Fig. 40: Alignment bracket
Description Alignment bracket
Type BEF-AH-DX100
Part no. 2058653
Material: Zinc-plated steel sheet
15.3.2 Deectormirrorformountingatalignmentbracket
Description Deectormirrorfordeectingthelightbeamby90°.
Can only be mounted at alignment bracket BEF-AH-DX100.
Type BEF-BEF-DX100
Part no. 2068395
Material: Zinc-plated steel sheet
