Operating instructions Distance measuring device DL100 – CANopen®
Setup and function
22 © SICK AG • Subject to change without notice • 8015416/ZPN2/2017-09-08
4.2 Function
Set
Esc
Et
h P
rofibus
PWR
M
F
1
M
F
2
L
NK
B
F
STA
<
<
1
2
4
3

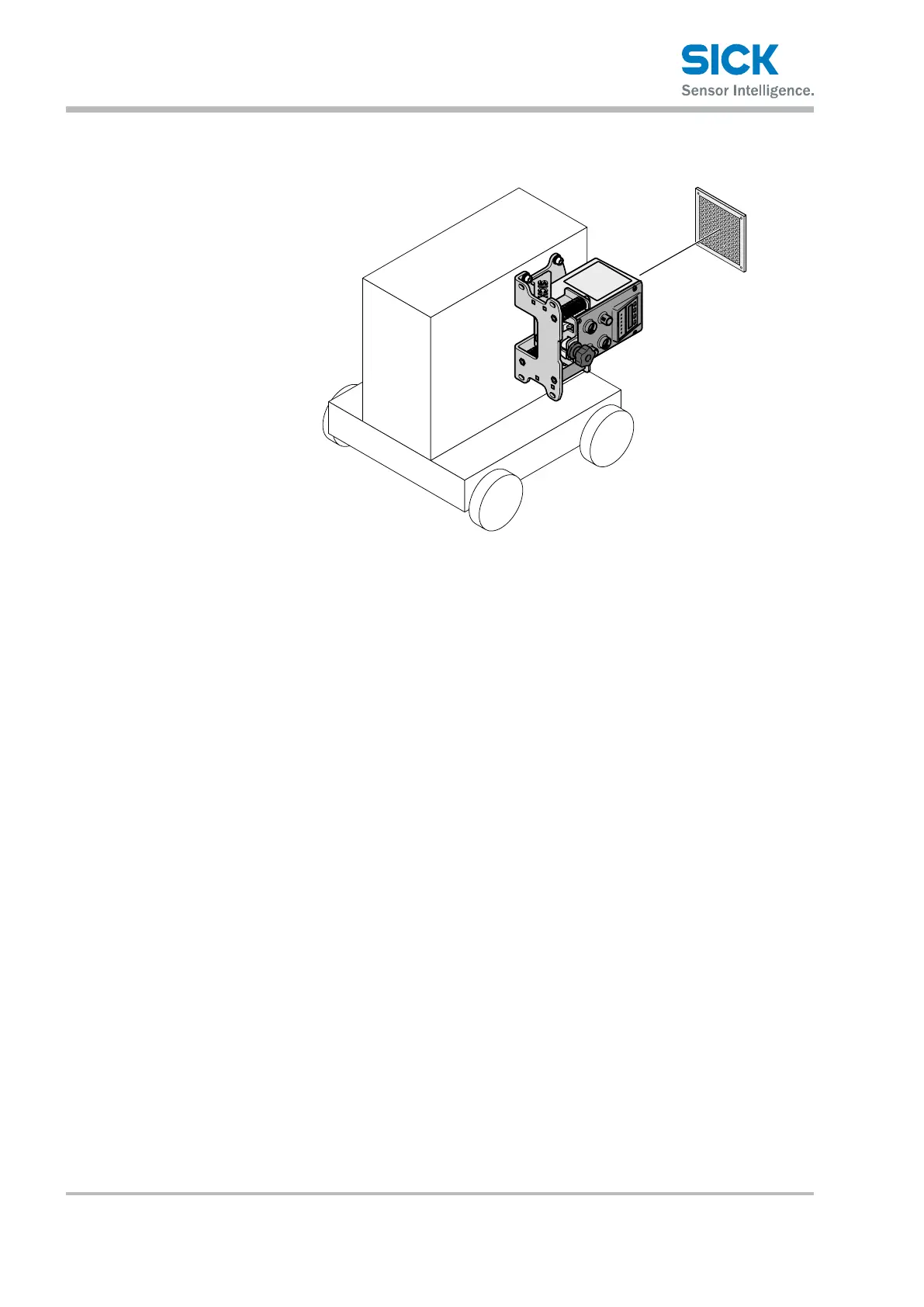

Fig. 4: Function "distance measuring device DL100"
1 Vehicle
2 Reector
3 Distance measuring device DL100
4 Alignment bracket
The distance measuring device DL100 comprises optics, a sender/receiver
unit and an evaluation unit. The sender emits the laser beam. The receiver
receiveslightreectedbythereector.Theevaluationelectricalunitdeter-
minesthedistancebetweensensorandreectorbytimeofightmeasure-
ment.
Formeasurement,eitherthereectororthemeasuringdevicemaymove
linearly along the laser beam.
The distance measuring device DL100 is equipped with two CANopen
®
interfaces and one Ethernet interface. The CANopen
®
interfaces serve
communication via CANopen
®
. The Ethernet interface serves communica-
tion, diagnosis and parameterization via SOPAS ET.
The measured distance is transferred via the "CANopen
®
" interface and
may be used, e.g. for the control unit or a position-control circuit.
