15.4 Other accessories
235 (9.25)
135 (5.31)
305 (12.01)
345 (13.58)
154 (6.06)
51.5°
51.5°
R74
M10
10.5
(0.41)
26
(1.02)
All dimensions in mm (inch)

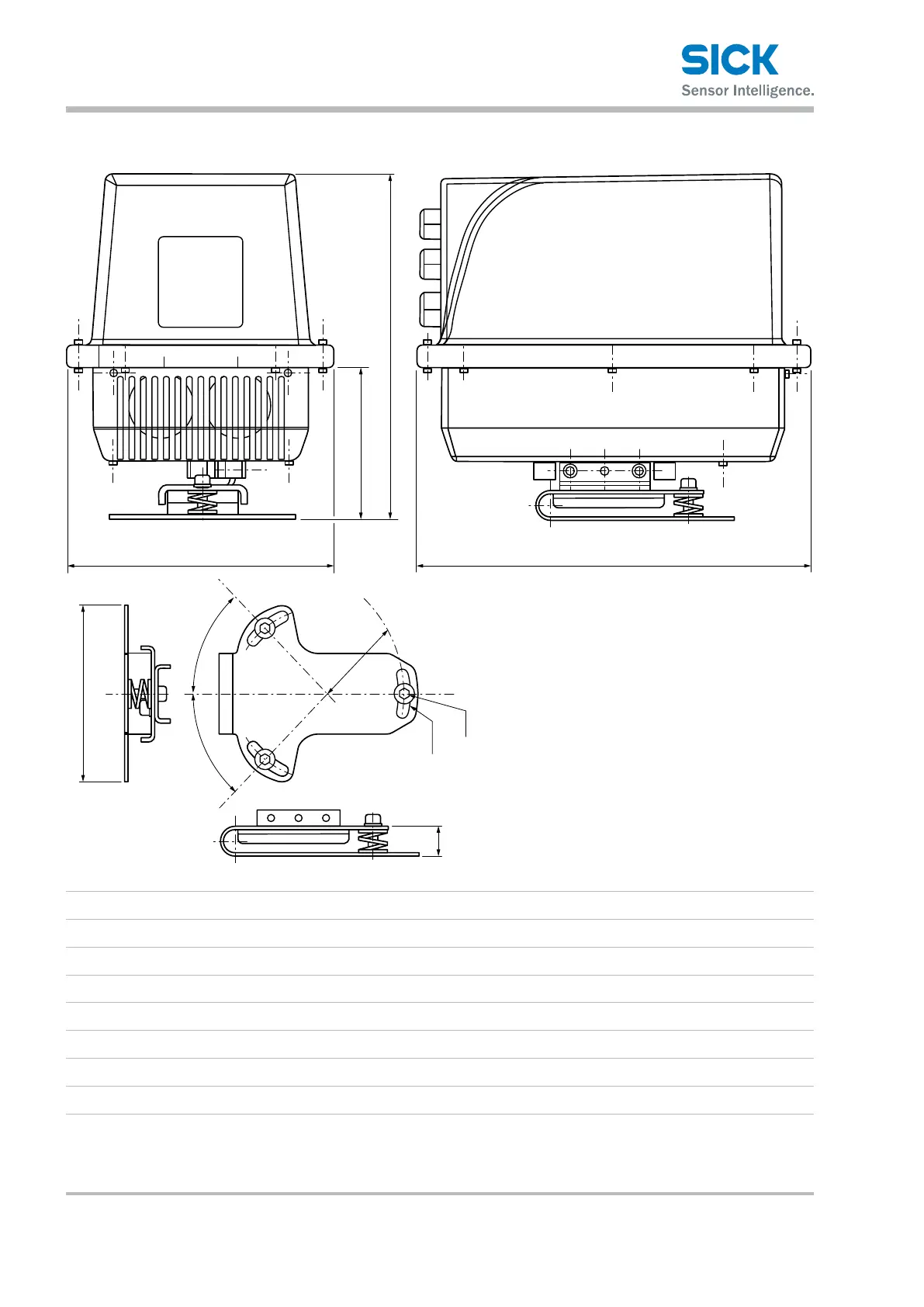

Fig. 41: Cooling casing
Description Cooling casing
Type TPCC-Dx100
Part no. 6048328
Material Glass-berreinforcedplastic(GFK)
Operating ambience temperature –20…+75°C(short-term+80°C)
Supply voltage 24VDC±20%
Current consumption 15 A at 24 V DC
Enclosure rating IP 54
