Operating instructions Distance measuring device DL100 – CANopen®
Operation at the measuring device
8.5.8 Submenu „MF1 – Dist“
This submenu is used to parameterize the multifunction output MF1 as
distance switching output.
You can get to the menu "Dist" via the menu path:
Main menu →
→ Menu → → CANopn → → more → →
MFx On → → MF1 → → ActSta → → Functn → → Dist
Requirements for the display
• Menu "more": Option "Yes"
• Menu "MFx On": Option "Enable"
• Parameter "Functn": Option "Dist"
Parameter Description
Limit Set distance-dependent switching threshold
Hysteresis Set Hysteresis for the switching threshold
Table 16: Submenu "MF1 – Dist"
inactiv
e
active
Limit
Hyst
Dist
.

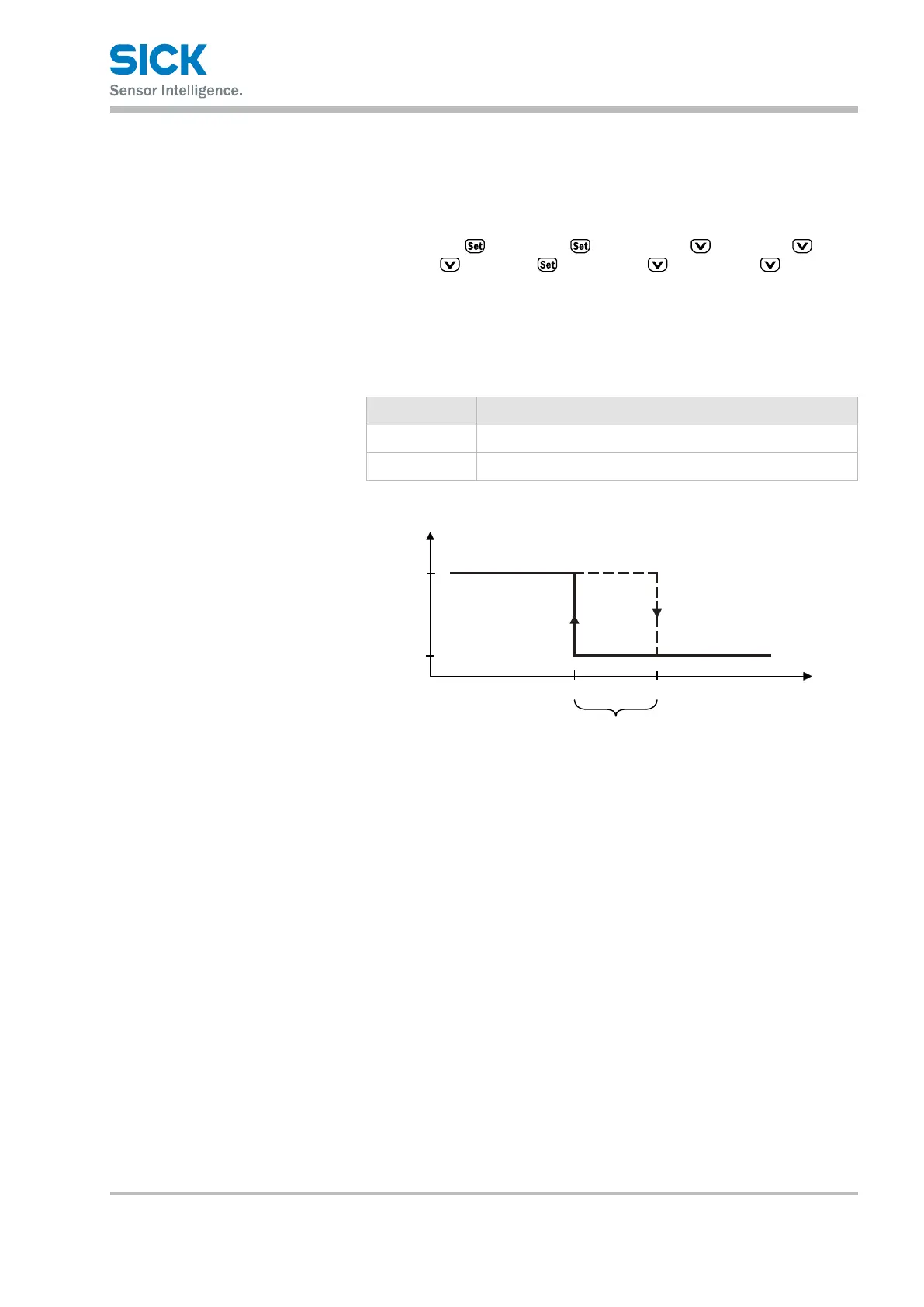

Fig. 26: Displaying the function "Dist."
Limit Distance-dependent switching threshold
Hyst: Switching threshold hysteresis
Dist: Measured distance
