SICK S300 Series User Manual

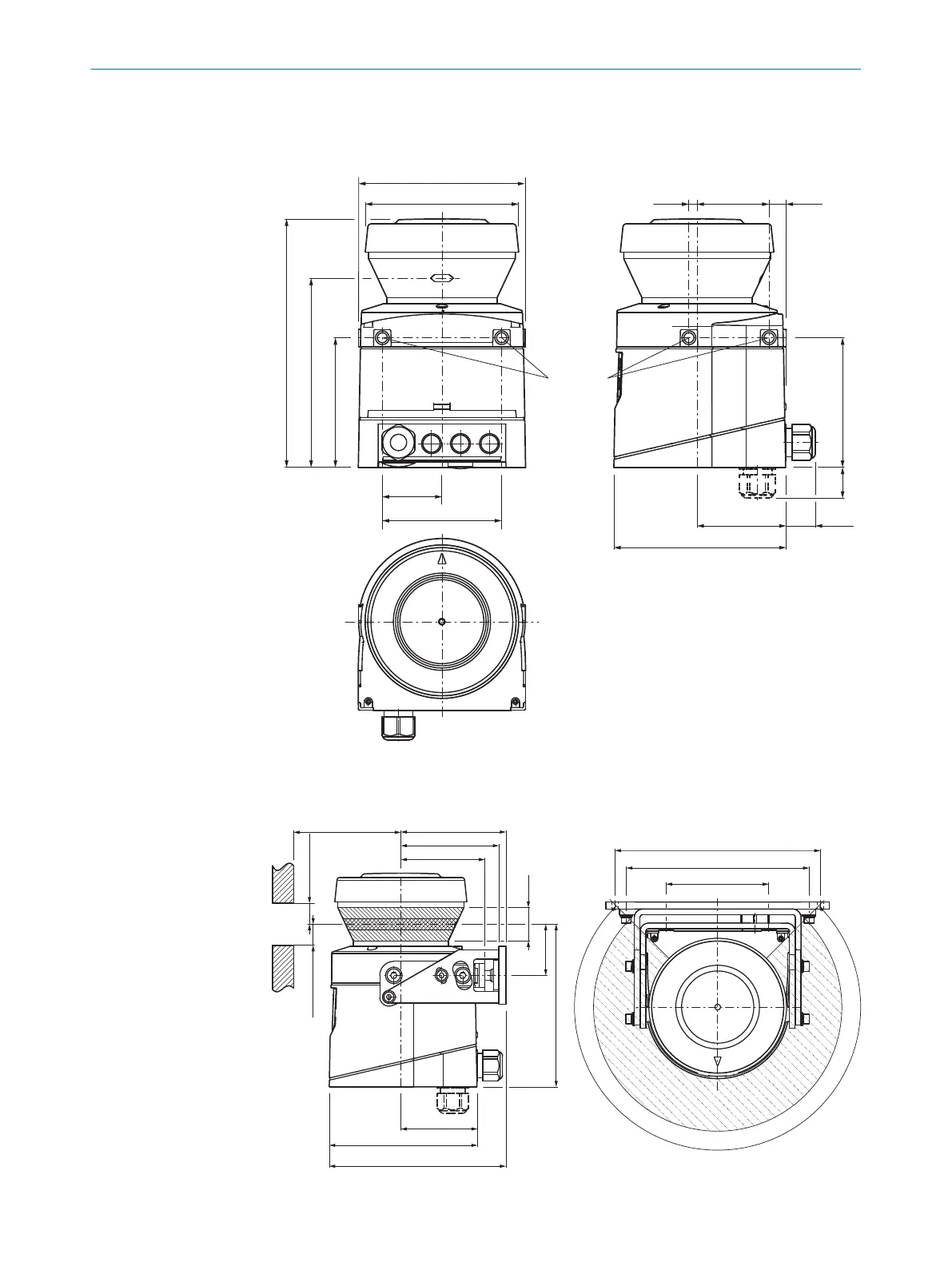

12.6 Dimensional drawings
Safety laser scanner
24
25
79,3
106
54,5
M5 x 7,5
5
49
±0,2
10,5
102
Ø 94
152
116
79,3
36,5
73
Figure 81: Dimensional drawing safety laser scanner (mm)
Scan plane origin
≤ 200
≥ 15
≥ 15
74,7
69,7
59,7
23,8
36,4
116
54,5
106
126
146
130
73
270°
Figure 82: Dimensional drawing scan plane origin with mounting kit 1a, 2 and 3 (mm)
TECHNICAL DATA 12
8010948/ZA21/2020-06-18 | SICK O P E R A T I N G I N S T R U C T I O N S | S300
135
Subject to change without notice

SICK S300 Series Specifications

General

Scanning angle	270 °
Number of monitoring cases	4
Protection class	IP65
Number of scanning planes	1
Angular resolution	0.5°
Interface	RS-422, Ethernet
Supply voltage	24 V DC
Ambient operating temperature	0 °C ... +50 °C
Laser class	1 (IEC 60825-1)
Storage temperature	–25 °C ... +70 °C
Protective field range	0.1 m to 3 m
