SICK S300 Series User Manual

5
3
2
4
1

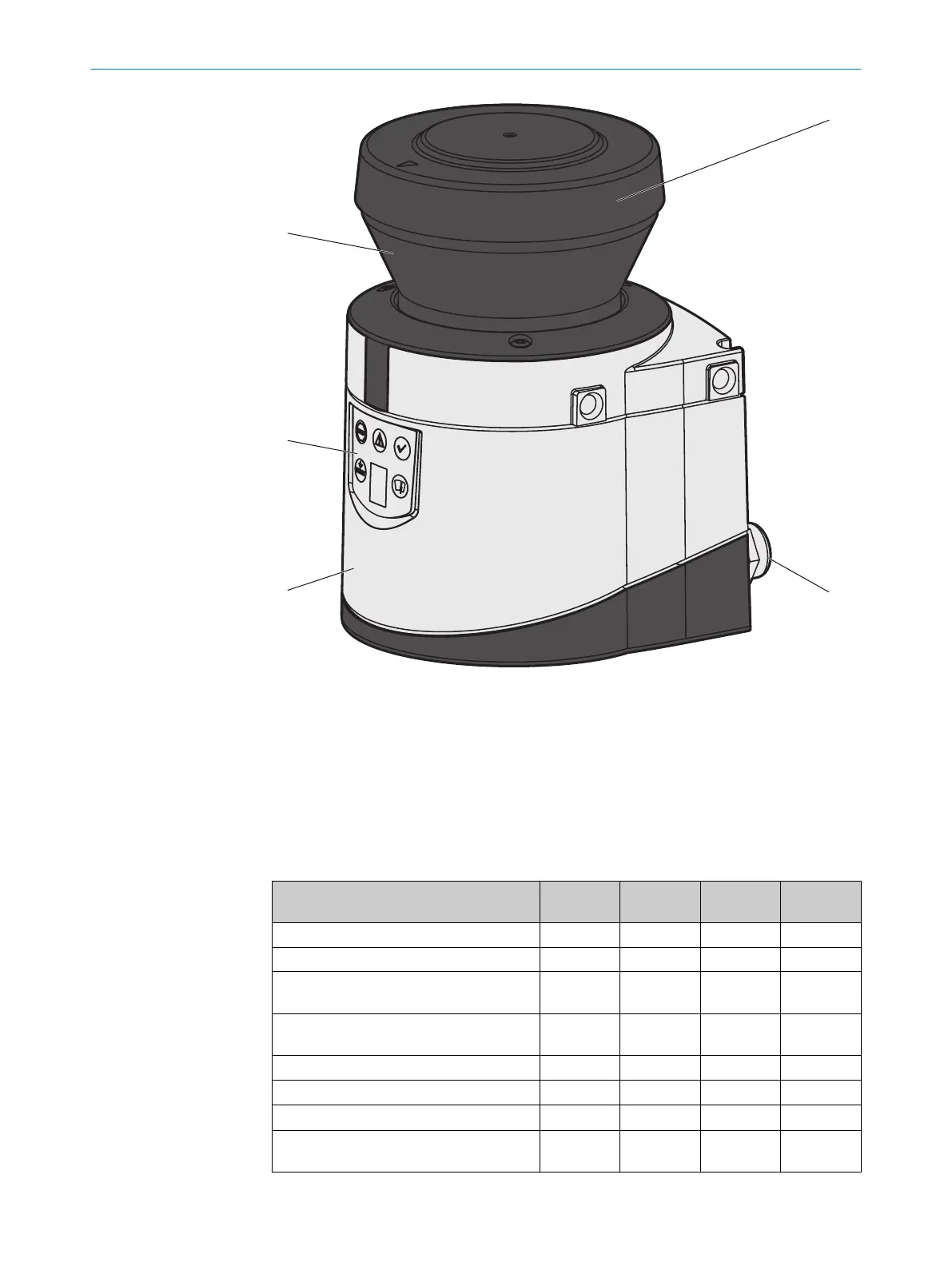

Figure 4: Device components
1
Light emission window
2
LEDs and 7-segment display
3
Sensor
4
Optics cover
5
System plug
3.2.3 Functions
Table 1: Functions
Function
Standard Advanced
Profes‐
sional
Expert
Protective field range, radial [m] 2/3 2/3 2/3 2/3
Warning field range, radial [m]
1)
8 8 8 8
Object resolution [mm] 30/40/50/
70/150
2)
30/40/50/
70/150
2)
30/40/50/
70/150
2)
30/40/50/
70/150
2)
Output signal switching device pairs
(O
SSDs)
1 1 1 1
External device monitoring (EDM)
l
3)
l
3)
l
3)
l
3)
Universal I/Os 5 5 5 5
Restart interlock/delay
l
3)
l
3)
l
3)
l
3)
Field sets comprising one protective field
and 2 w
arning fields
1 4 8 16
3 PRODUCT DESCRIPTION
16
O P E R A T I N G I N S T R U C T I O N S | S300 8010948/ZA21/2020-06-18 | SICK
Subject to change without notice

SICK S300 Series Specifications

General

Scanning angle	270 °
Number of monitoring cases	4
Protection class	IP65
Number of scanning planes	1
Angular resolution	0.5°
Interface	RS-422, Ethernet
Supply voltage	24 V DC
Ambient operating temperature	0 °C ... +50 °C
Laser class	1 (IEC 60825-1)
Storage temperature	–25 °C ... +70 °C
Protective field range	0.1 m to 3 m
