SICK S300 Series User Manual

Mounting in a corner

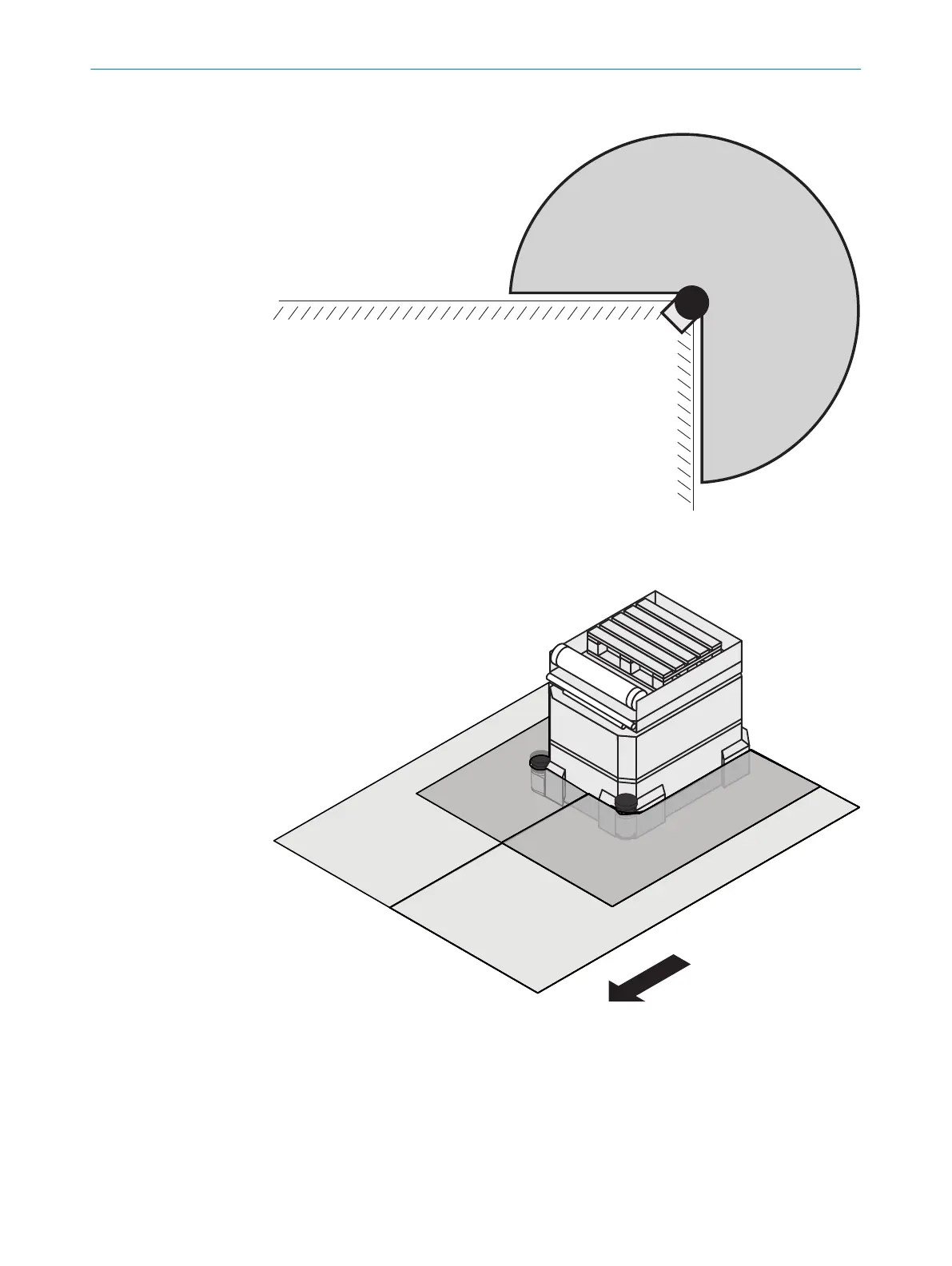

Figure 23: Avoid unsecured areas
T
o avoid unsecured areas, the device can, for example, be mounted in a corner.
Figure 24: Mounting example for front and side protection in one direction of travel
If t
wo safety laser scanners are mounted at a 45° angle on the front corners of a vehi‐
cle, you can configure the protective field in such a way that no unsecured areas are
created and the hazardous areas on narrow tracks can also be protected.
PROJECT PLANNING 4
8010948/ZA21/2020-06-18 | SICK O P E R A T I N G I N S T R U C T I O N S | S300
33
Subject to change without notice

SICK S300 Series Specifications

General

Scanning angle	270 °
Number of monitoring cases	4
Protection class	IP65
Number of scanning planes	1
Angular resolution	0.5°
Interface	RS-422, Ethernet
Supply voltage	24 V DC
Ambient operating temperature	0 °C ... +50 °C
Laser class	1 (IEC 60825-1)
Storage temperature	–25 °C ... +70 °C
Protective field range	0.1 m to 3 m
