SICK S300 Series User Manual

5
20,5
158,8
150
130
41

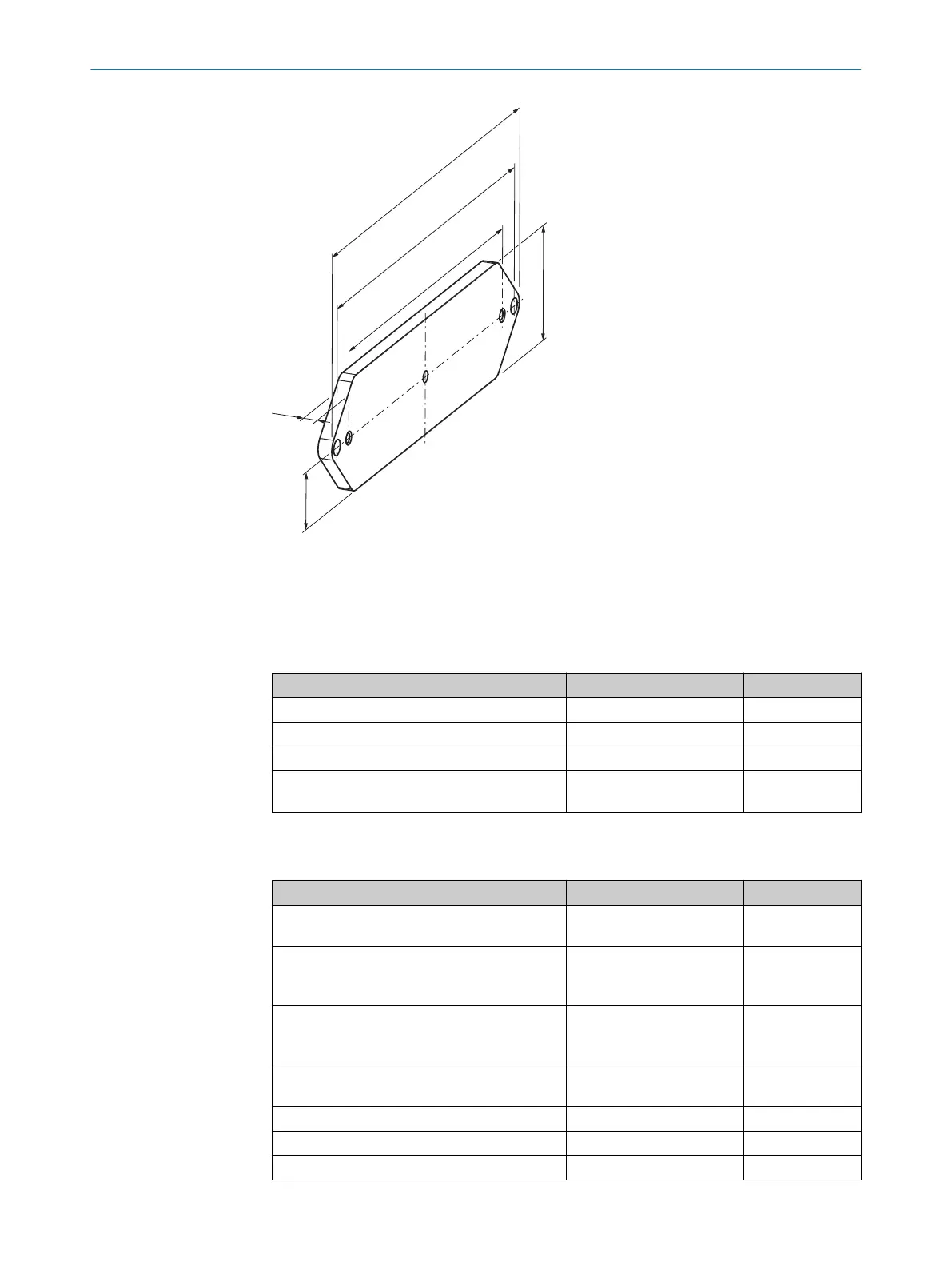

Figure 86: Dimensional drawing mounting kit 3 (mm)
15.3 Additional accessories
Safety relays/compact safety controller
T
able 45: Ordering information safety relays/compact safety controller
Part Type code Part number
Safety relay UE102FG3 UE102FG3 1043916
Safety relay UE122FG3 UE122FG3 1043918
Safety relay UE103OS with screw terminals UE103OS2 6024917
Safety relay UE103OS with removable termi‐
nals
UE103OS3 6024918
Safety controllers
T
able 46: Safety controller ordering information
Part Type code Part number
Flexi Soft CPU0 main module
Dual le
vel spring terminals
FX3-CPU000000 1043783
Flexi Soft CPU1 main module
2 E
FI connections
Dual level spring terminals
FX3-CPU130002 1043784
Flexi Soft XTIO expansion module
8 in
puts/4 outputs
Dual level spring terminals
FX3-XTIO84002 1044125
Flexi Soft XTDI input expansion module
8 inputs, dual level spring terminals
FX3-XTDI80002 1044124
Flexi Soft system plug FX3-MPL000001 1043700
Flexi Classic main module UE410-MU3T5 6026136
Flexi Classic expansion module UE410-XU3T5 6032470
15 ACCESSORIES
140
O P E R A T I N G I N S T R U C T I O N S | S300 8010948/ZA21/2020-06-18 | SICK
Subject to change without notice

SICK S300 Series Specifications

General

Scanning angle	270 °
Number of monitoring cases	4
Protection class	IP65
Number of scanning planes	1
Angular resolution	0.5°
Interface	RS-422, Ethernet
Supply voltage	24 V DC
Ambient operating temperature	0 °C ... +50 °C
Laser class	1 (IEC 60825-1)
Storage temperature	–25 °C ... +70 °C
Protective field range	0.1 m to 3 m
