SICK S300 Series User Manual

≥ 100 mm

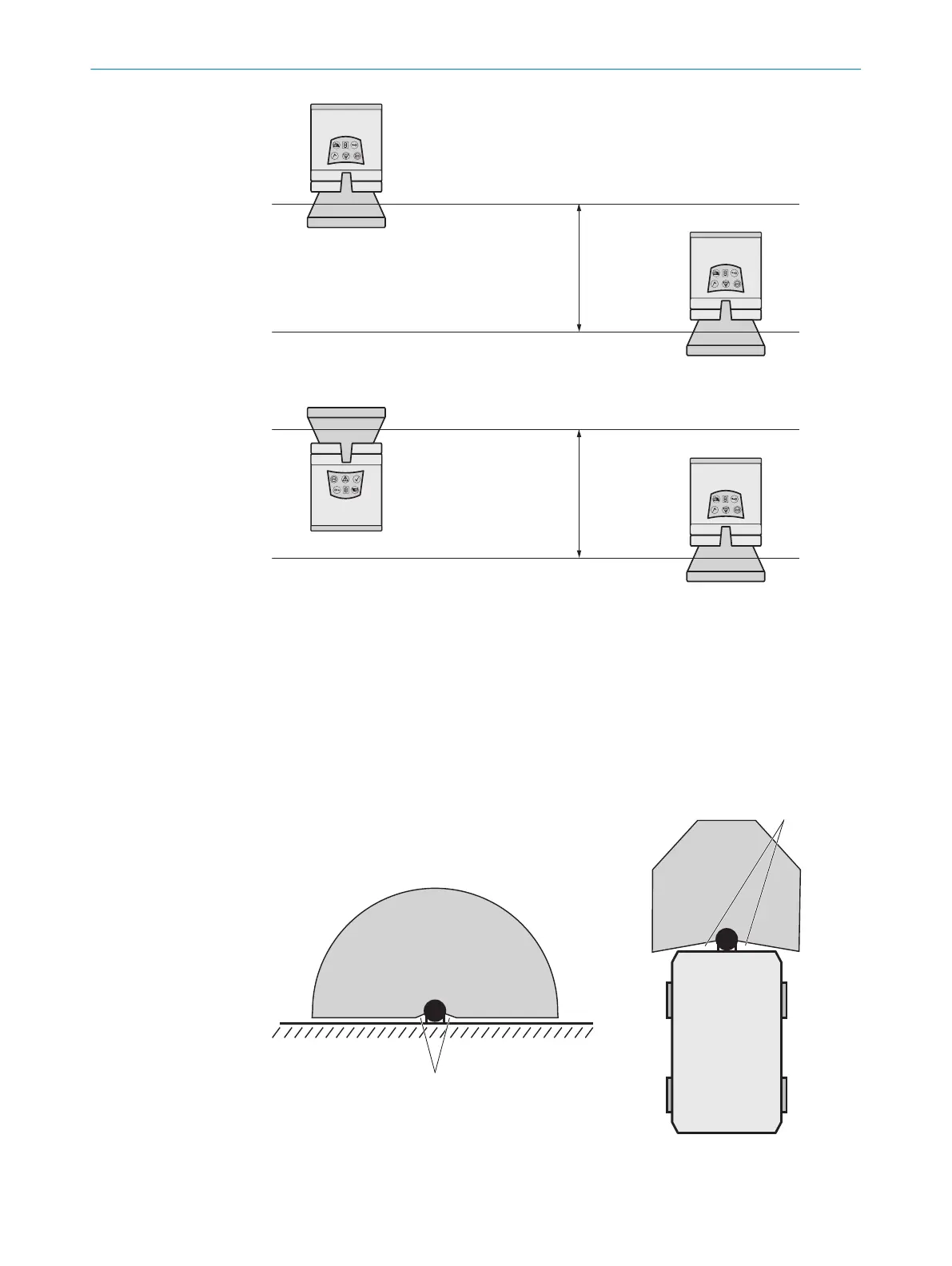

Figure 20: Mounting both devices upside down, offset parallel
≥ 100 mm
Figure 21: Mounting one device upside down, offset parallel
Further topics
•
"Brackets", page 138
4.3.2 Measures to prevent unsecured areas
Overview
W
hen mounting the safety laser scanner, there may be areas which it cannot detect
(1).
1
1
Figure 22: Unsecured areas
PROJECT PLANNING 4
8010948/ZA21/2020-06-18 | SICK O P E R A T I N G I N S T R U C T I O N S | S300
31
Subject to change without notice

SICK S300 Series Specifications

General

Scanning angle	270 °
Number of monitoring cases	4
Protection class	IP65
Number of scanning planes	1
Angular resolution	0.5°
Interface	RS-422, Ethernet
Supply voltage	24 V DC
Ambient operating temperature	0 °C ... +50 °C
Laser class	1 (IEC 60825-1)
Storage temperature	–25 °C ... +70 °C
Protective field range	0.1 m to 3 m
