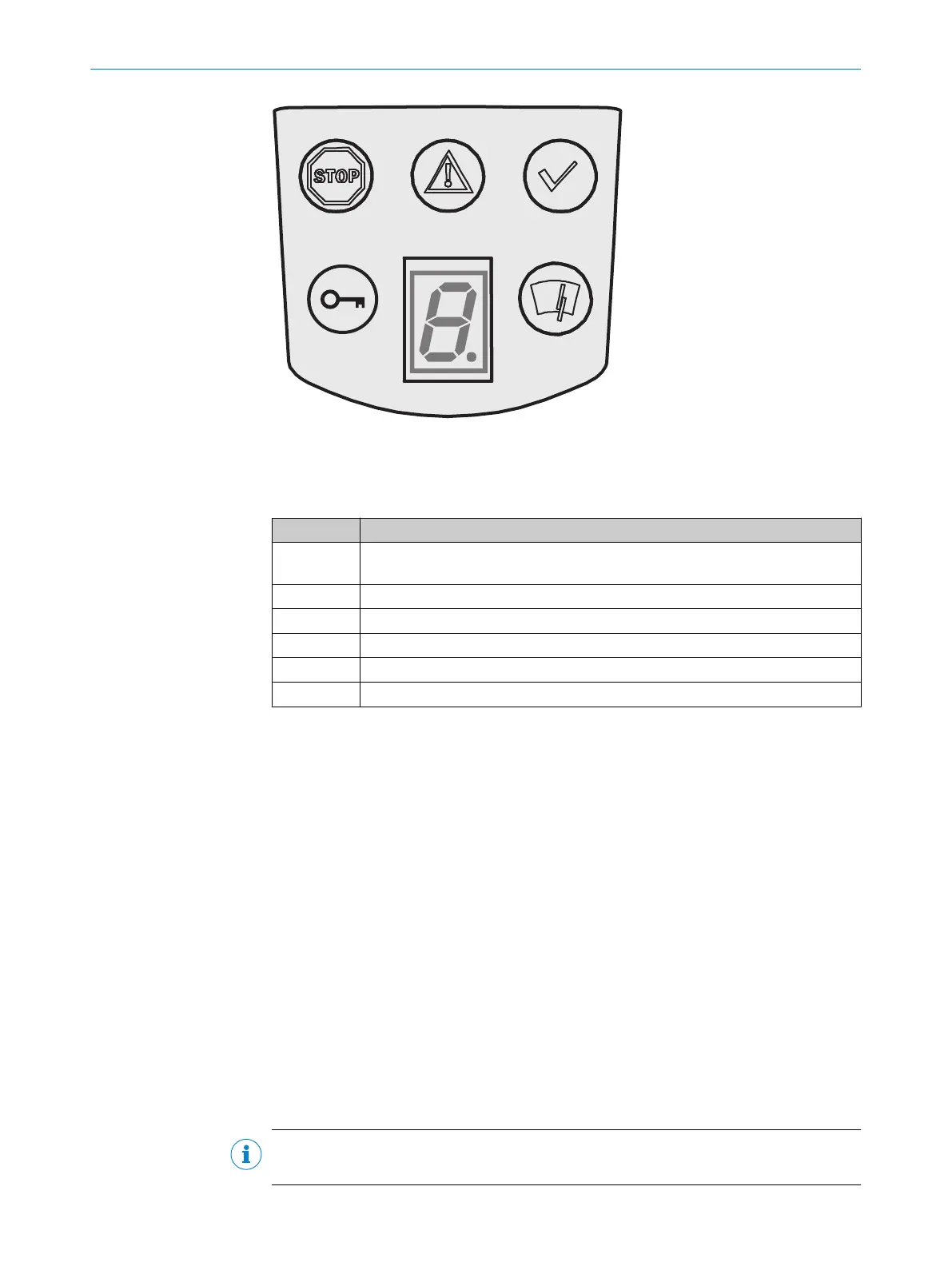

Figure 6: Status indicators of the safety laser scanner
T
he icons have the following meanings:
Table 2: Status indicators
Symbol Meaning
Ê
OSSDs in OFF state. For example, Object in the protective field, Monitored con‐
t
our has changed, Reset required, Lock-out.
É
Warning field interrupted (Object in the warning field)
Ë
OSSDs in the ON state (No object in the protective field)
Ü
Reset required
Ð
Optics cover is dirty
7-segment display to indicate the status and errors
Further topics
•
"Er
ror and status indications of the LEDs", page 113
•
"Error and status indications on the 7segment display", page 114
3.2.6 Protective field, warning field and field set
Protective field
T
he protective field protects the hazardous area of a machine or vehicle. As soon as the
safety laser scanner recognizes an object in the protective field, the device switches the
OSSDs to the OFF state thereby causing the machine to be switched off or the vehicle
to be stopped.
Warning field
The warning fields can be defined so that the safety laser scanner detects an object
even before the actual hazardous area.
Warning field 1 can be used in particular for vehicle protection applications to detect an
object before the actual hazardous area and to slowly retard the movement of the vehi‐
cle or bring it to a standstill. This can reduce the wear on the brakes of the AGV. Warn‐
ing field 2 can also be used to trigger a warning signal.
NOTE
A w
arning field must not be used for tasks relating to the protection of people.
3 PRODUCT DESCRIPTION
18
O P E R A T I N G I N S T R U C T I O N S | S300 8010948/ZA21/2020-06-18 | SICK
Subject to change without notice
