Field set comprising a protective field and warning field(s)
Pr
otective fields and warning fields form the so-called field set. These field sets are con‐
figured using the CDS. You can configure the fields to be radial, rectangular or free
form. When the area to be monitored changes, you can reconfigure the safety laser
scanner via the software without additional mounting work.
Depending on the variant, you can define up to 16 field sets and save them in the
safety laser scanner. This allows you to switch to another field set if the monitoring situ‐
ation changes.
You can configure field sets that comprise one protective field and one or two warning
fields.

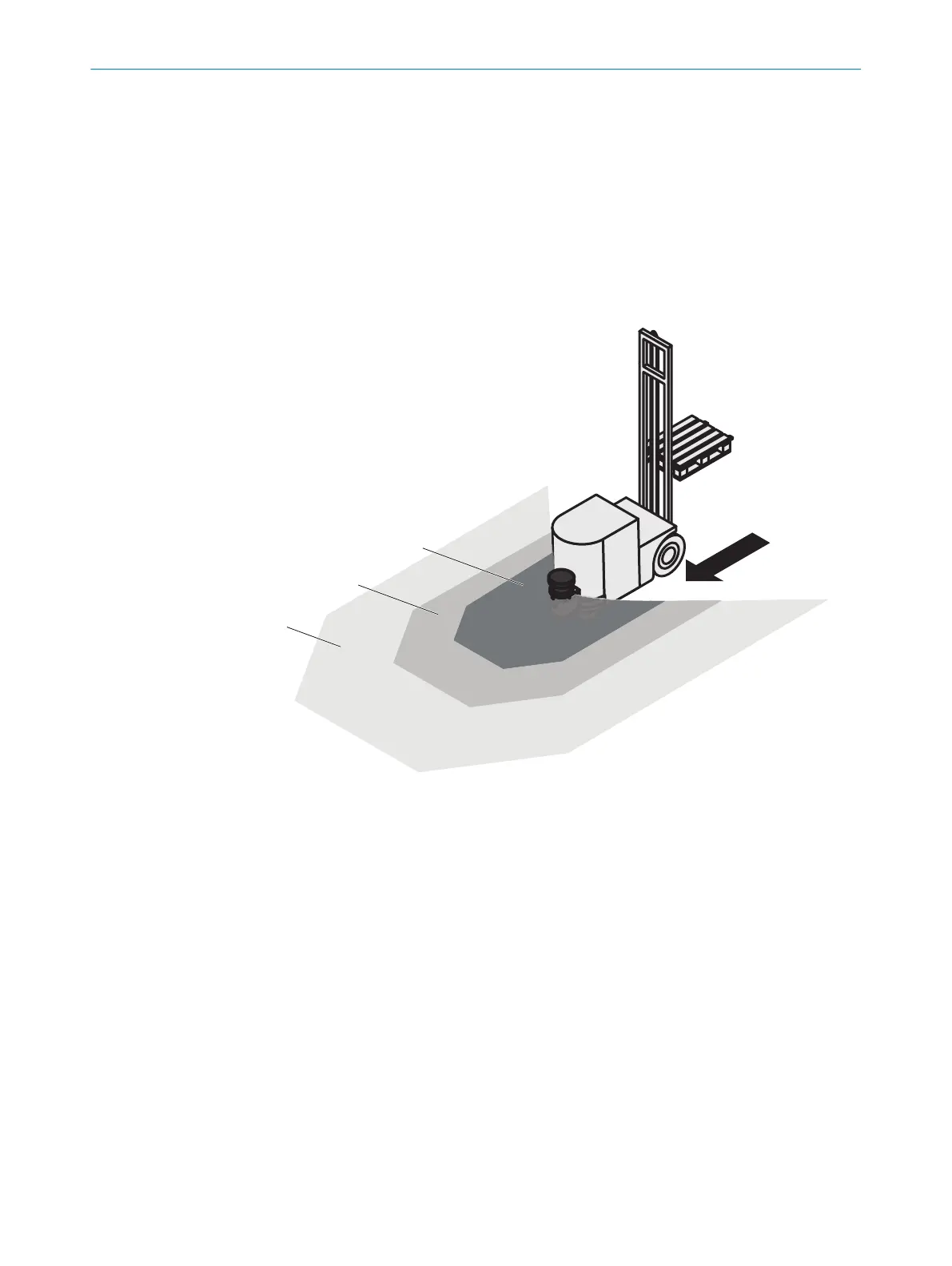

Figure 7: Field set with one protective field and two warning fields
1
Protective field
2
Warning field 1
3
Warning field 2
Further topics
•
"F
unctions", page 16
3.2.7 Monitoring cases
Depending on the variant used, up to 32 monitoring cases can be defined and selected
dur
ing operation via local static or dynamic control inputs or via EFI. This makes it pos‐
sible, for example, to perform process-dependent hazardous area protection or speed-
dependent vehicle monitoring.
