SICK S300 Series User Manual

Function
Standard Advanced
Profes‐
sional
Expert
Programmable monitoring cases in stand-
alone oper
ation
1 4 16 32
Programmable monitoring cases in an EFI
s
ystem
32 32 32 32
Static control inputs for monitoring case
switching
– 2 1 1
Static/dynamic control inputs for monitor‐
ing case switching
– – 2 2
EFI interface (safe SICK device communi‐
c
ation)
l l l l
Park mode, activation by monitoring case –
l l l
Standby, activation by EFI bit or standby
in
put
l l l l
Configuration memory in the system plug
l l l l
RS422 data interface
l l l l
Extended CMS features (reflector detec‐
t
ion, filter function for measured values)
– – –
l
1)
Warning field range for a radiance factor of 30% (see "Char
acteristic curves", page 128).
2)
150 mm resolution configurable only for the Long Range variant with a 3 m scanning range.
3)
Availability depends on the configuration of the universal I/Os (see "Universal I/O connections",
page 88).
3.2.4 Scanning ranges
The device variants differ with regards to their maximum scanning range and the resul‐
t
ant protective field size.
1 2

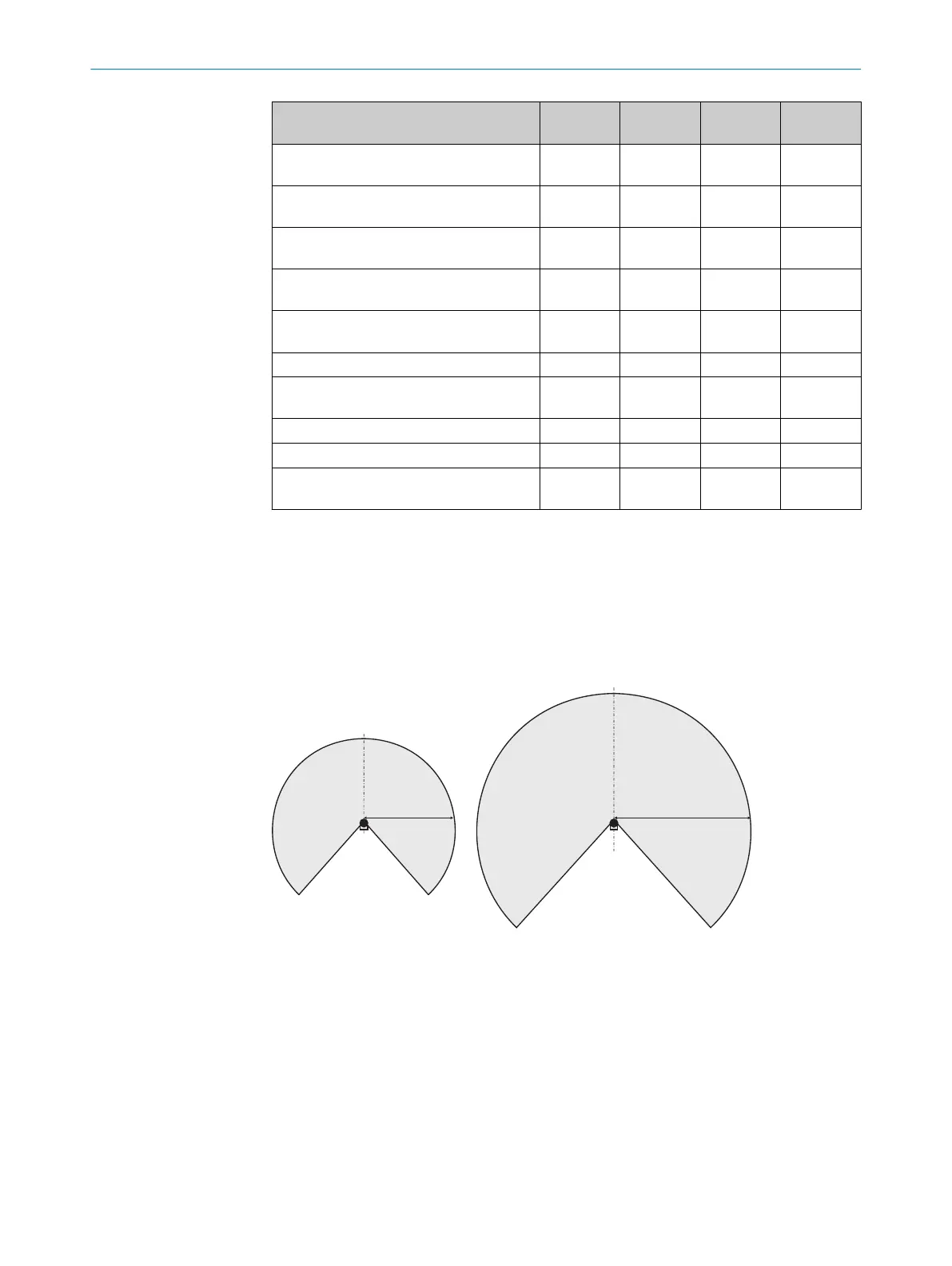

Figure 5: Protective field ranges
1
Medium Range, maximum scanning range 2 m
2
Long Range, maximum scanning range 3 m
3.2.5 Status indicators
The LEDs and 7-segment display signal the operational status of the device. They are
f
ound on the front side of the device.
PRODUCT DESCRIPTION 3
8010948/ZA21/2020-06-18 | SICK O P E R A T I N G I N S T R U C T I O N S | S300
17
Subject to change without notice

SICK S300 Series Specifications

General

Scanning angle	270 °
Number of monitoring cases	4
Protection class	IP65
Number of scanning planes	1
Angular resolution	0.5°
Interface	RS-422, Ethernet
Supply voltage	24 V DC
Ambient operating temperature	0 °C ... +50 °C
Laser class	1 (IEC 60825-1)
Storage temperature	–25 °C ... +70 °C
Protective field range	0.1 m to 3 m
