SICK S300 Series User Manual

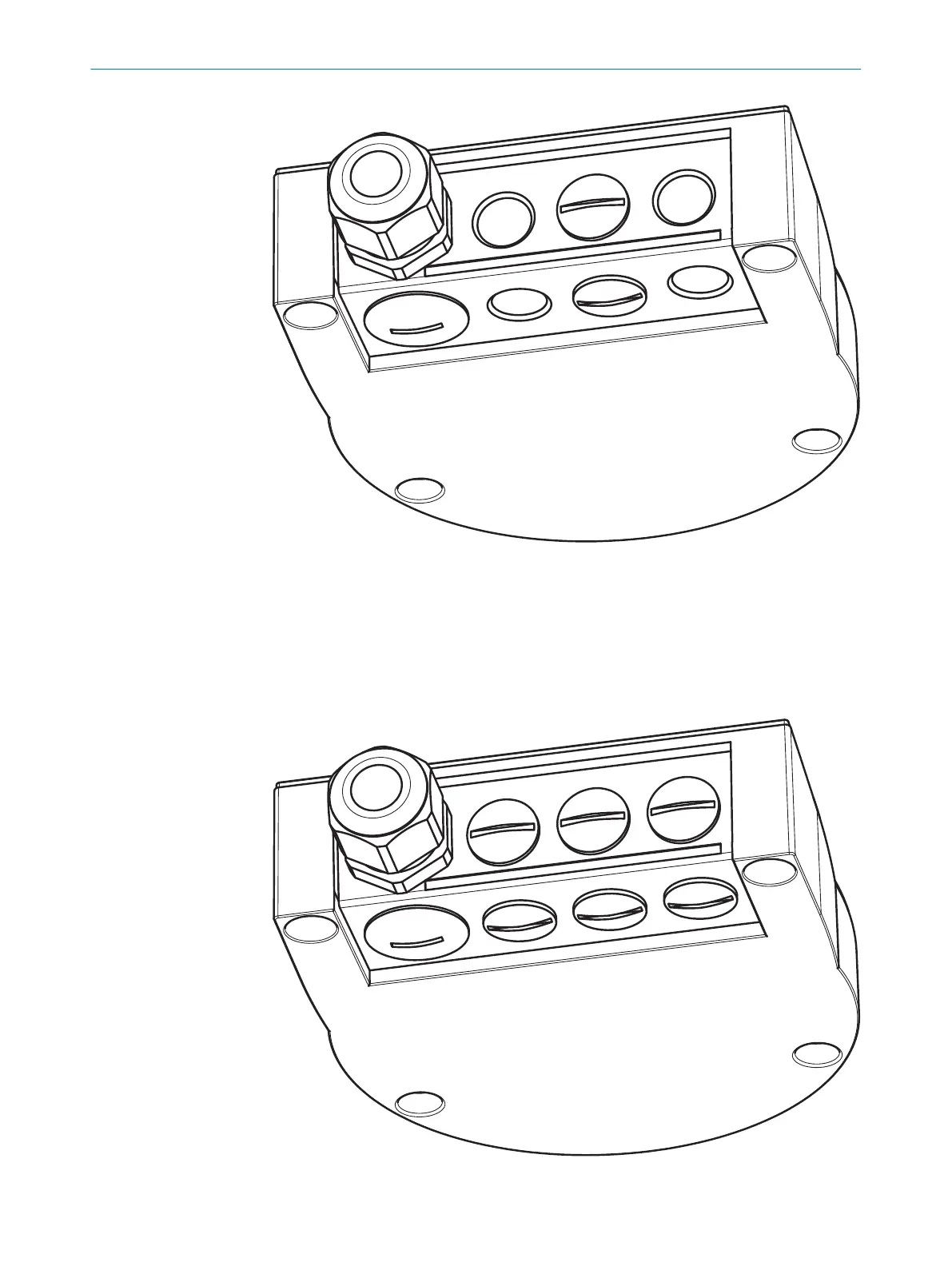

Figure 54: SX0B-A0000G system plug
SX0B-
A0000J system plug:
•
For S300 Professional and Expert
•
1 cable entry with M16 cable gland
•
1 cable entry without M16 cable gland (blind plug)
•
6 cable entries without M12 cable gland (blind plug)
•
2 M12 cable glands, enclosed loosely
Figure 55: SX0B-A0000J system plug
6 ELE
CTRICAL INSTALLATION
70
O P E R A T I N G I N S T R U C T I O N S | S300 8010948/ZA21/2020-06-18 | SICK
Subject to change without notice

SICK S300 Series Specifications

General

Scanning angle	270 °
Number of monitoring cases	4
Protection class	IP65
Number of scanning planes	1
Angular resolution	0.5°
Interface	RS-422, Ethernet
Supply voltage	24 V DC
Ambient operating temperature	0 °C ... +50 °C
Laser class	1 (IEC 60825-1)
Storage temperature	–25 °C ... +70 °C
Protective field range	0.1 m to 3 m
