SICK S300 Series User Manual

3 Product description
3.1 Construction and function
The safety laser scanner is an optical sensor that scans its environment in two dimen‐
sions w
ith infrared laser beams. It is used to monitor hazardous areas on machines or
vehicles.
1
2
1
2
Δt
t

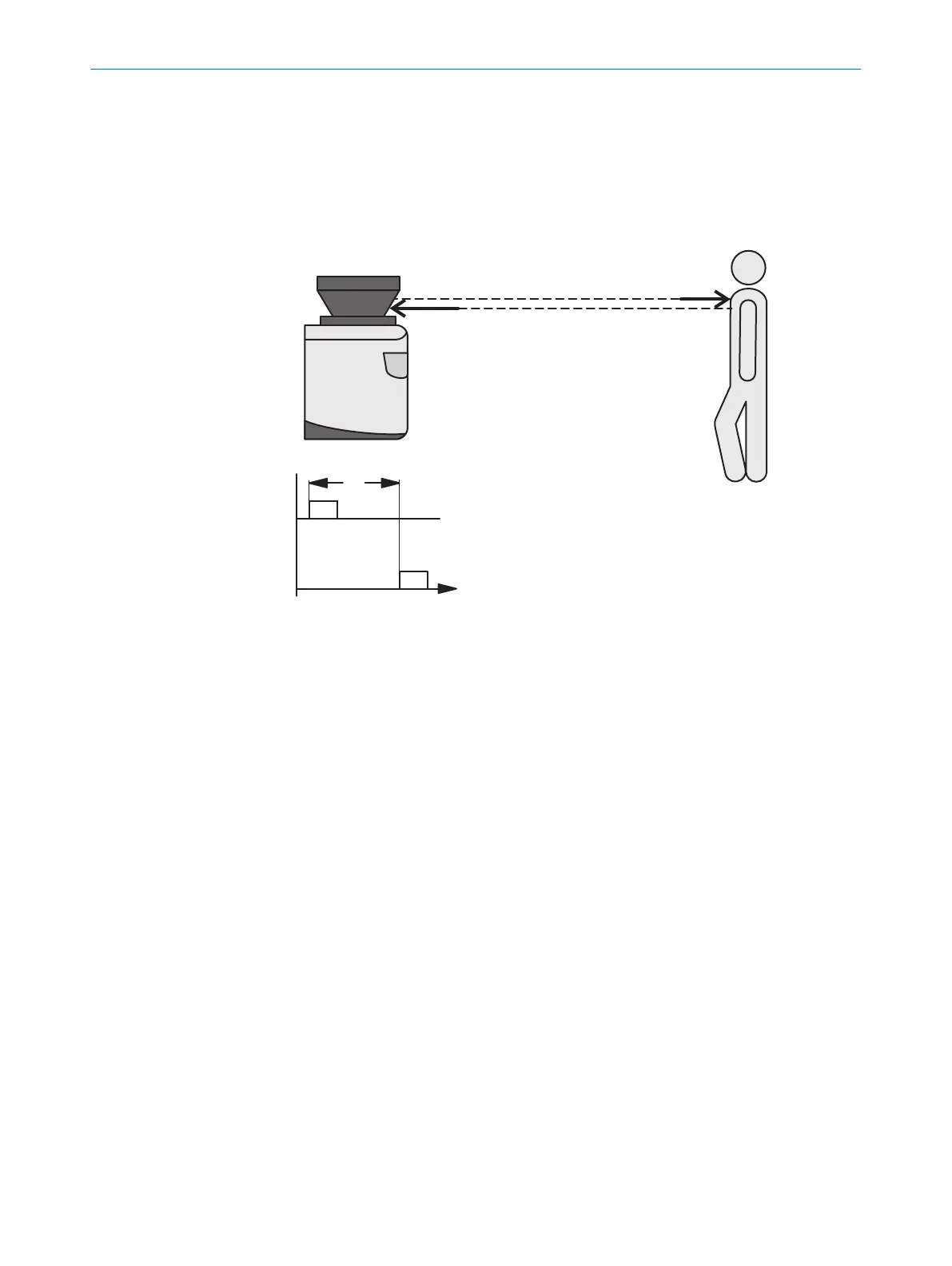

Figure 2: Principle of operation of the safety laser scanner time-of-flight measurement
1
Transmitted light pulse
2
Reflected light pulse
The device operates according to the time-of-flight measurement principle. The device
emit
s very short light pulses (transmitted light pulse). while an “electronic stopwatch”
runs simultaneously. If the light strikes an object, the object reflects the light which is
then received by the safety laser scanner (received light pulse). The device calculates
the distance to the object based on the time interval between the moment of transmis‐
sion and moment of receipt (∆t).
PRODUCT DESCRIPTION 3
8010948/ZA21/2020-06-18 | SICK O P E R A T I N G I N S T R U C T I O N S | S300
13
Subject to change without notice

SICK S300 Series Specifications

General

Scanning angle	270 °
Number of monitoring cases	4
Protection class	IP65
Number of scanning planes	1
Angular resolution	0.5°
Interface	RS-422, Ethernet
Supply voltage	24 V DC
Ambient operating temperature	0 °C ... +50 °C
Laser class	1 (IEC 60825-1)
Storage temperature	–25 °C ... +70 °C
Protective field range	0.1 m to 3 m
