WARNING
P
ersons or parts of the body to be protected may not be recognized or not recognized in
time in case of non-observance.
Before commissioning the machine or vehicle, check the configuration of the protective
fields, see "Commissioning", page 103, see "Checklist for initial commissioning and
commissioning", page 148.
b
Check the configured protective fields.
NOTE
If t
he protective field 3 or the warning fields 2 extend all the way to a wall or another
object (pillar, neighboring machine, shelf), there should be a distance of 100 mm
between the protective field or warning field and the object to prevent false triggering
1.

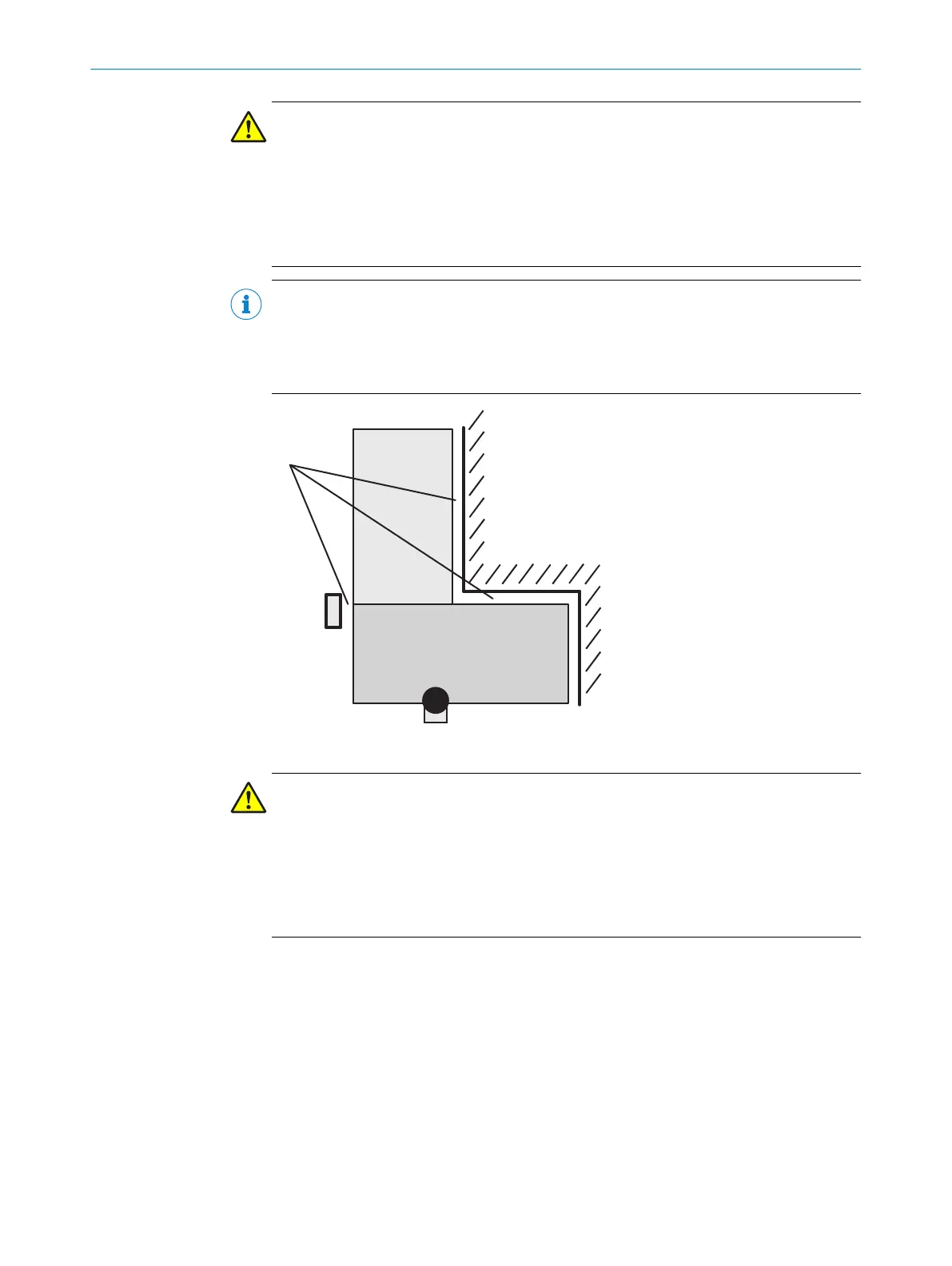

Figure 64: Configuring the protective field and warning field
DANGER
P
ersons or parts of the body to be protected may not be recognized or not recognized in
time in case of non-observance.
If it is possible to access a narrow strip between the protective field and a wall or
another object, this strip must be protected using additional measures (e.g., fence or
floor protection).
b
Secure unprotected areas.
Further topics
•
"Resolution", page 78
7.12.2 Importing and exporting field sets and fields
Overview
If y
ou need identical field sets or fields across different projects, you can export entire
field sets or individual fields out of one project and import them into another project.
7 C
ONFIGURATION
90
O P E R A T I N G I N S T R U C T I O N S | S300 8010948/ZA21/2020-06-18 | SICK
Subject to change without notice
