SICK S300 Series User Manual

Restart interlock and external device monitoring
S1
k1
k2
K1 K2 H8 H3 H2
E112692/00/2014-08-21
1
5
7
8
6
13
15
14
4
3
2
FE
+24 V
S300 Standard
k2k1
x
x
y
y
z
z
k2
k1
1)
FE
0 V

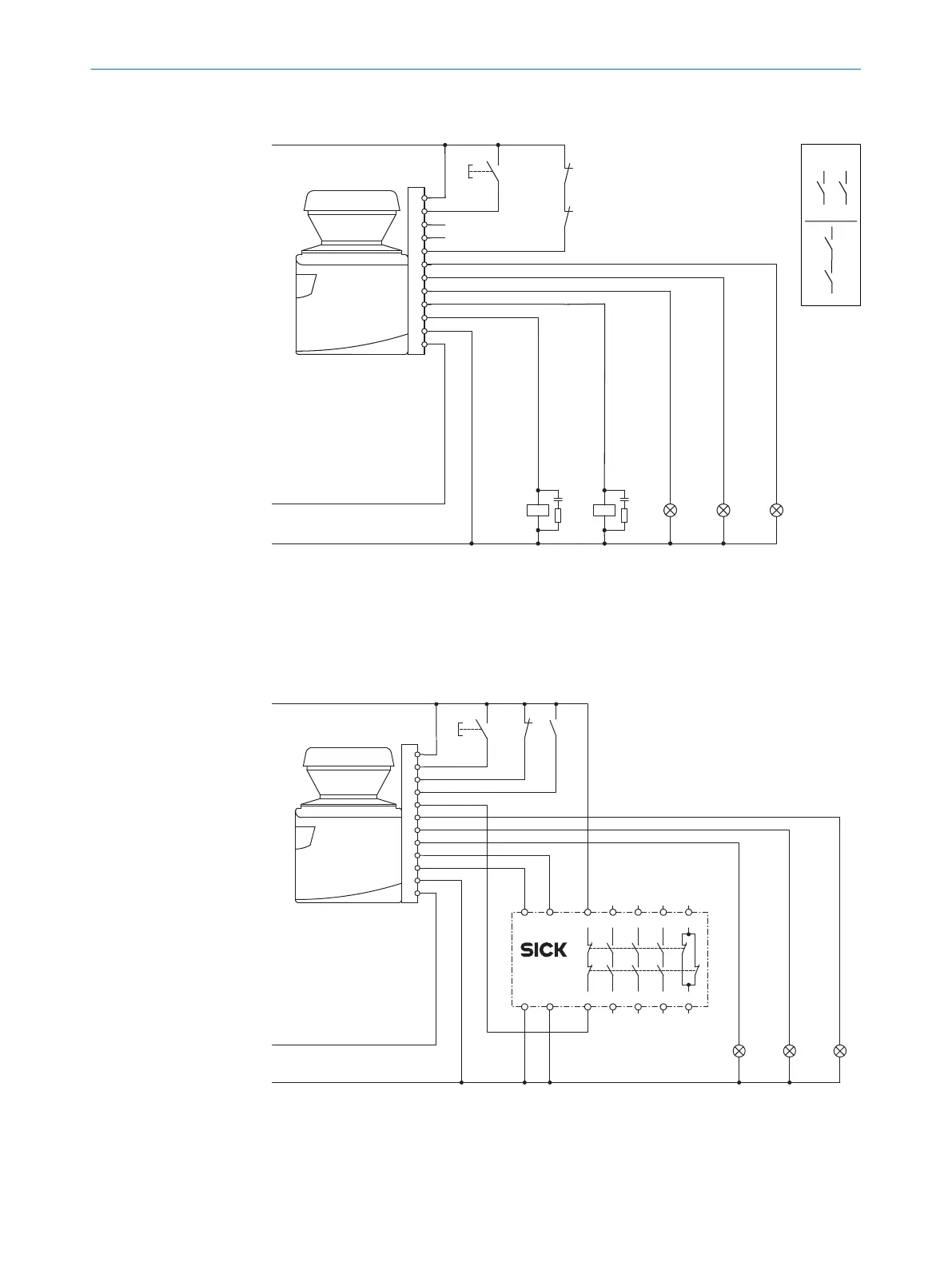

Figure 39: Connection diagram for restart interlock and external device monitoring
S300 S
tandard in conjunction with relays (contactors); Operating mode: with restart
interlock and external device monitoring.
Monitoring case switching using one static input pair
1
5
7
8
6
13
15
14
4
3
2
FE
+24 V
FE
0 V
S1 A1 A2
H2H8 H3
S300 Advanced
B1 B3 Y1 13 23 33 41
1)
B2 B4 Y2 14 24 34 42
UE10-3OS
E112694/00/2014-08-21
Figure 40: Connection diagram for monitoring case switching using one static input pair
S300 A
dvanced in conjunction with UE10-3OS; Operating mode: with restart interlock
and external device monitoring; Monitoring case switching by the control input A.
4 P
ROJECT PLANNING
52
O P E R A T I N G I N S T R U C T I O N S | S300 8010948/ZA21/2020-06-18 | SICK
Subject to change without notice

SICK S300 Series Specifications

General

Scanning angle	270 °
Number of monitoring cases	4
Protection class	IP65
Number of scanning planes	1
Angular resolution	0.5°
Interface	RS-422, Ethernet
Supply voltage	24 V DC
Ambient operating temperature	0 °C ... +50 °C
Laser class	1 (IEC 60825-1)
Storage temperature	–25 °C ... +70 °C
Protective field range	0.1 m to 3 m
