NCK start-up
10.2 System data
CNC Part 1 (NCK, PLC, drive)
Commissioning Manual, 11/2006, 6FC5397-2AP10-2BA0
101

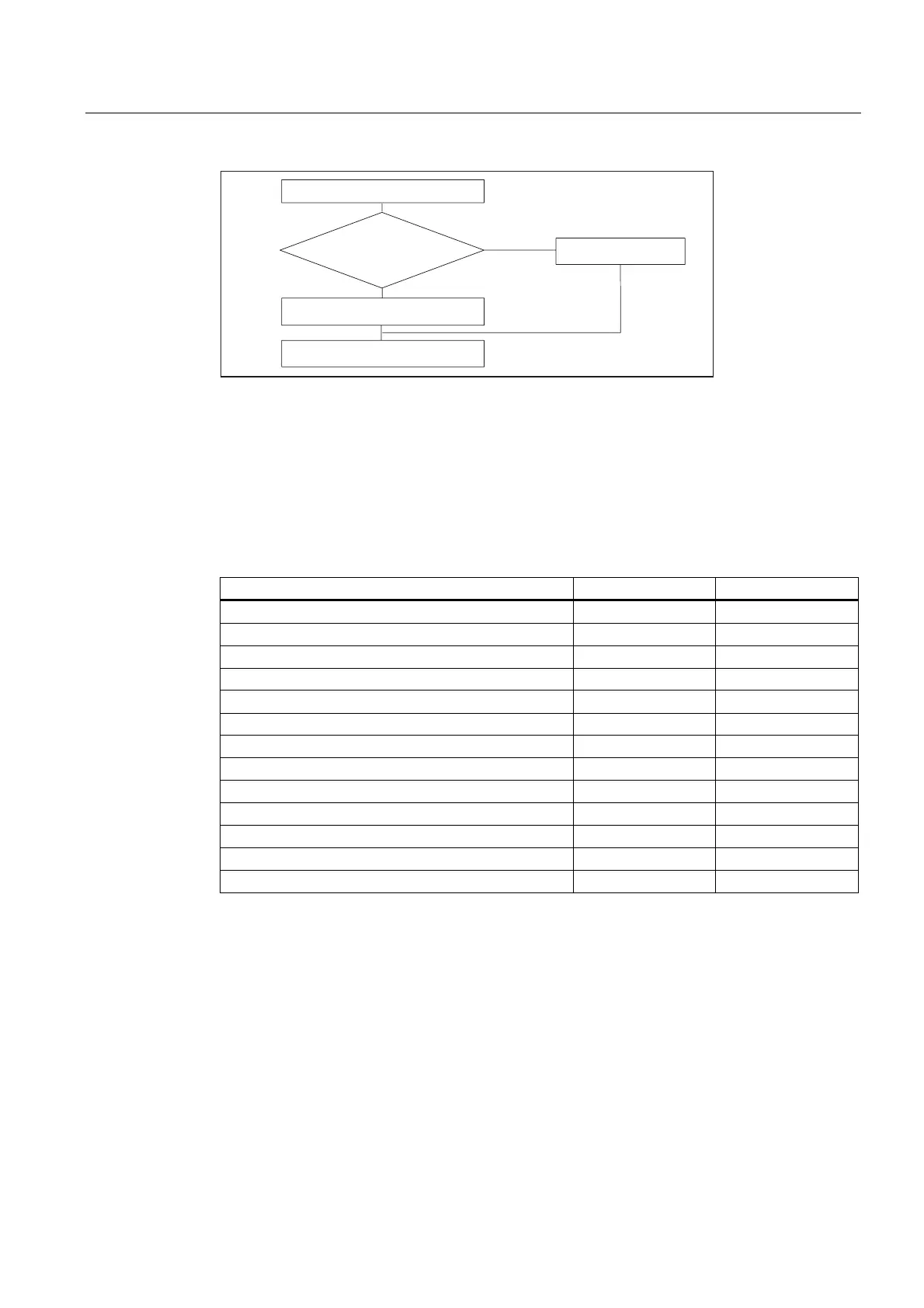

0'
1RUPDOL]DWLRQIDFWRU
DFWLYDWHG"
<H
V
QR
,QWHUQDOVFDOLQJ
0'1RUPDOL]DWLRQIDFWRU
,QWHUQDOSK\VLFDOXQLW
,QSXWYDOXHVIRUPDFKLQHGDWD
The following applies:
Input/output unit selected=
MD: SCALING_FACTORS_USER_DEF[n] * internal unit
In MD10230 SCALING_FACTORS_USER_DEF[n], the selected I/O device must be entered
expressed in the internal units mm, 1 degree and 1 sec.
Table 10-3 Bit number and index for user definition
Physical unit MD10220 bit number MD10230 index n
Linear position 0 0
Angular position 1 1
Linear velocity 2 2
Angular velocity 3 3
Linear acceleration 4 4
Angular acceleration 5 5
Linear jerk 6 6
Angular jerk 7 7
Time 8 8
K
V
factor 9 9
Rev. feedrate 10 10
Compensation value linear position 11 11
Compensation value angular position 12 12
Example 1:
Machine data input/output of the linear velocities is to be in m/min instead of mm/min (initial
state). The internal unit is mm/s.
MD10220 SCALING_USER_DEF_MASK bit2 = 1 is used to enter the scaling factor for linear
velocities as a user-defined value.
The scaling factor is calculated using the following formula:
To Next Page
