Siemens SINUMERIK 804D sl

CNC Part 1 (NCK, PLC, drive)
Commissioning Manual, 11/2006, 6FC5397-2AP10-2BA0
31
Example configuration
4
Overview
The commissioning described in this manual orientates itself on an example configuration of
the SINAMICS drive group.
The following figure roughly shows the components.
• A NCU 710 with:
– A single motor module for one motor with SMI (Sensor Module Integrated)
– A double motor module for two motors with SMI
• A NX 10 with:
– A single motor module for one motor with SMC (Sensor Module Cabinet)
• An active line module
'5,9(&/L4
;
1&8

$FWLYH
/LQH0RGXOH
;
6LQJOH
0RWRU0RGXOH
;
6LQJOH
0RWRU0RGXOH
;
'ULYHREMHFWIRU1;
;
1;

'RXEOH
0RWRU0RGXOH
;
6SLQGOH
=
;
<
'ULYHREMHFWV
IRU1&8
;
60&
;

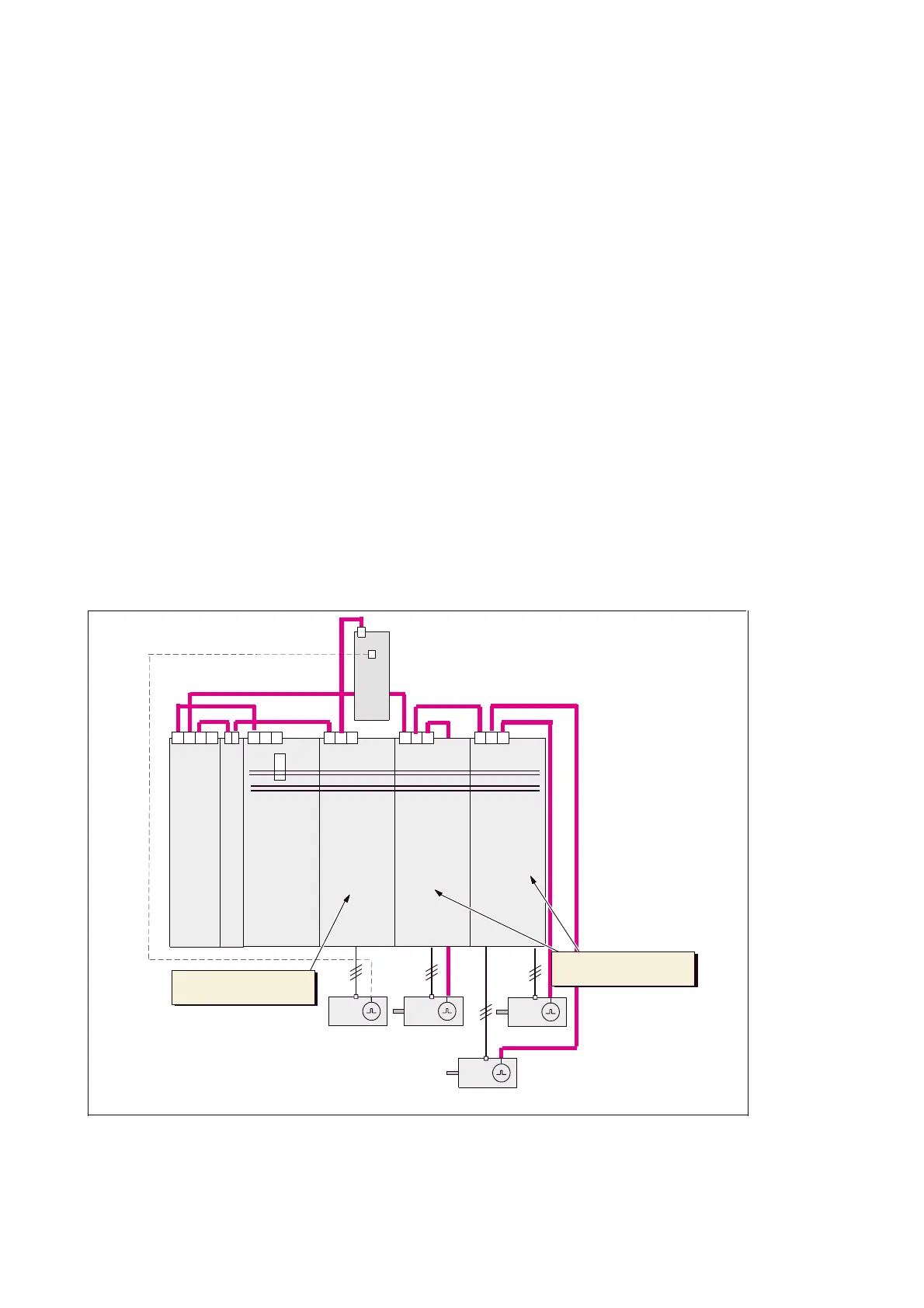

Figure 4-1 Example configuration
