Commissioning SINAMICS drives
8.6 Commissioning using a drive wizard
CNC Part 1 (NCK, PLC, drive)
76 Commissioning Manual, 11/2006, 6FC5397-2AP10-2BA0
8.6.2 Parameterization of the drives
Introduction
The following components are parameterize/configured with the drive wizard:
• Motor module (power section)
• Motor
• encoder
Parameterizing/configuring
You are in the "Commissioning > Drive systems" menu

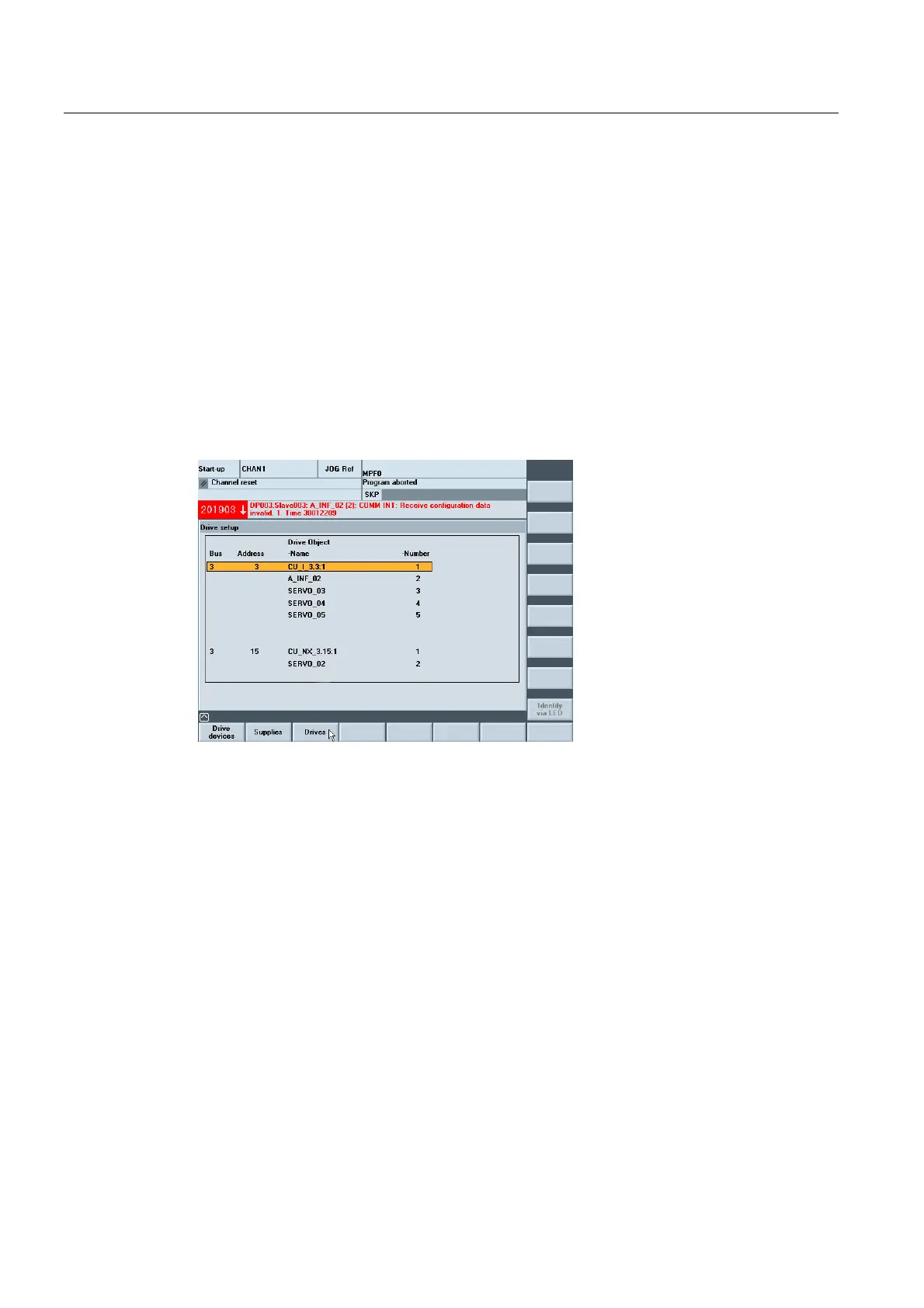

Figure 8-19 "Drive systems" menu after topology matching NX
1. Press the "Drives" softkey in order to parameterize/configure the following drives:
– Drives with externally supplied motor
– Drives with SMI (DriveCLiQ)
The drive wizard identifies the relevant design of the drives and takes you through
parameterization in the dialog.
