13.4 Integrating PG/PC into the network (NetPro)
CNC Part 1 (NCK, PLC, drive)
198 Commissioning Manual, 11/2006, 6FC5397-2AP10-2BA0
13.4.3 Assigning interfaces
Introduction
The interfaces configured in the previous chapter must now be assigned in a device-specific
manner to the available hardware interfaces on the PG/PC.
The following operator input sequence steps detail the assignment of the Ethernet interface.
Operator input sequence steps for assigning an Ethernet interface
1. Select the "Assign" tab.
2. Select "Ethernet interface(1)" in the selection field "Configured interfaces".
3. Select the installed network card "TCP/IP -> Realtek RTL8139/810xF…" in the selection
field "Interface parameterizations in PG/PC" (see figure below).

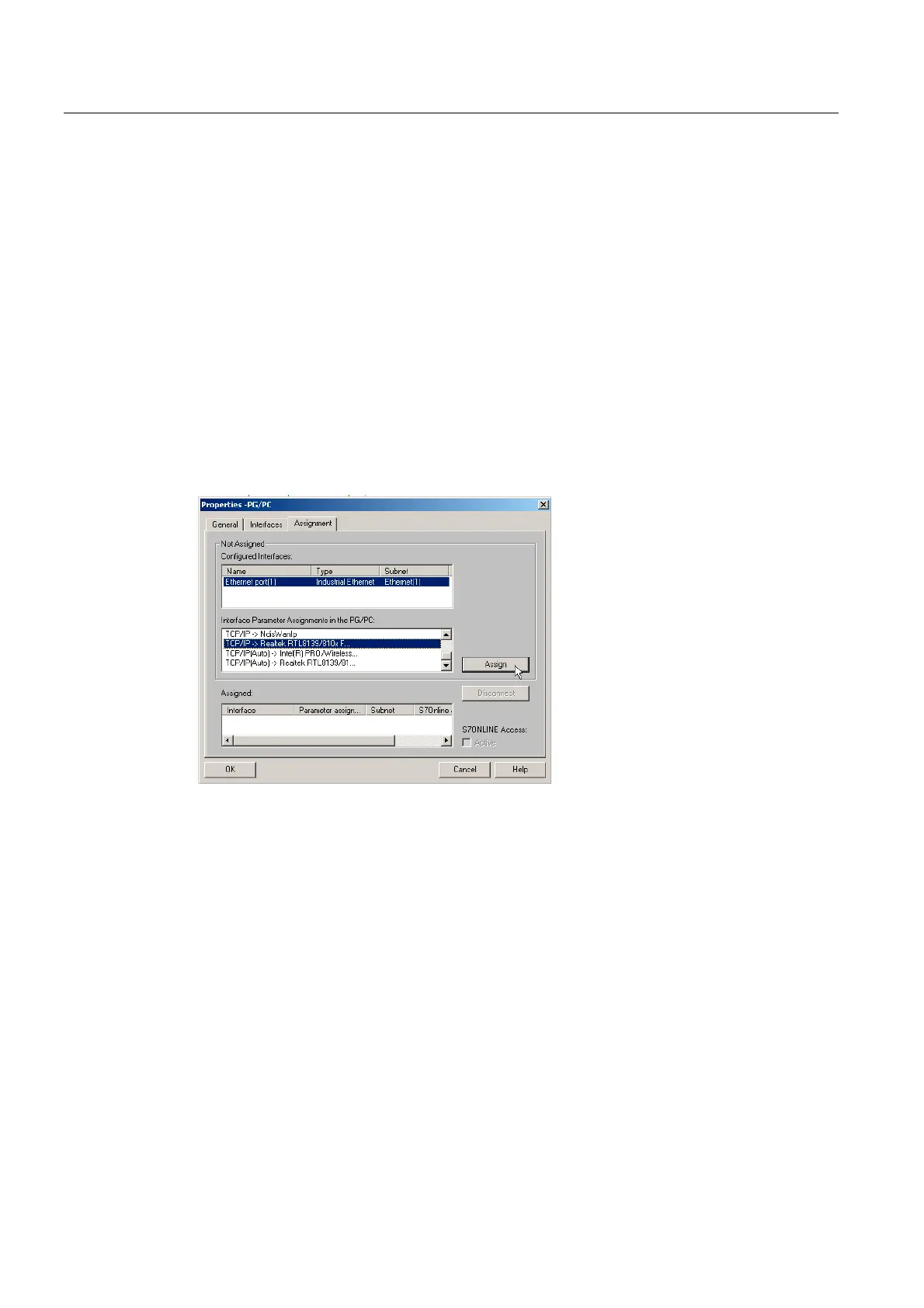

Figure 13-13 Selecting
4. Click on "Assign" and confirm the subsequent message on processing object properties
with "OK".
The assigned interfaces are deleted from the field "Configured interfaces" and these
assigned interfaces are displayed in the field "Assigned" (see figure below).
