Commissioning SINAMICS drives
8.1 Introduction to commissioning of SINAMICS drives
CNC Part 1 (NCK, PLC, drive)
64 Commissioning Manual, 11/2006, 6FC5397-2AP10-2BA0
8.1 Introduction to commissioning of SINAMICS drives
Introduction
Commissioning of the SINAMICS drives is done in the operating area "Commissioning".
Introduction to commissioning of SINAMICS drives
1. After having completed commissioning of the PLC, you proceed from the following
operating interface.

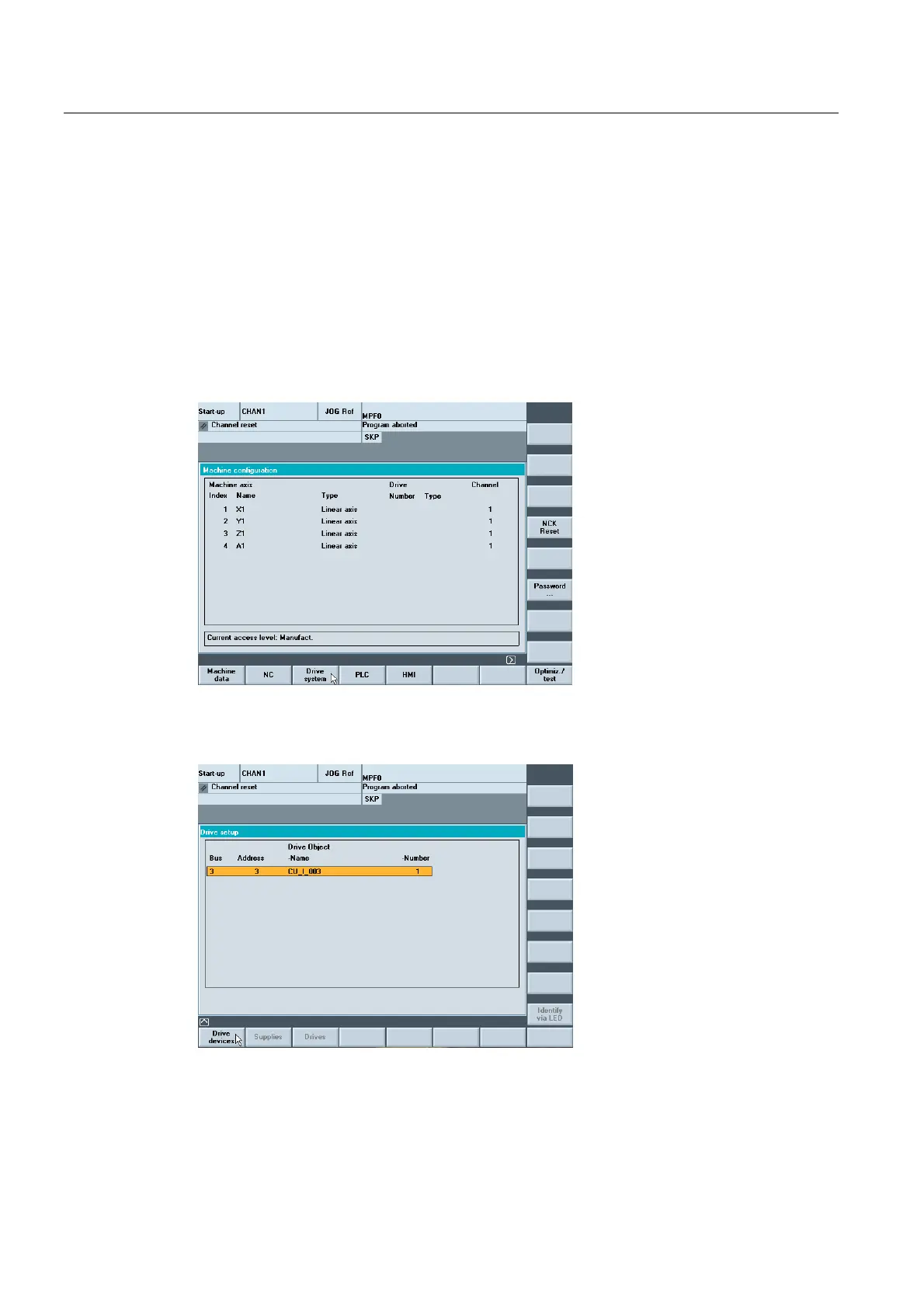

Figure 8-1 "Commissioning" menu
2. Press the "Drive system" softkey.
Figure 8-2 "Drive system" menu
Introduction to commissioning of SINAMICS drives is completed. In the next step you take
over the topology of the drive into the HMI via Quick Commissioning.
