PLC commissioning
7.1 Creating a SIMATIC S7 project
CNC Part 1 (NCK, PLC, drive)
44 Commissioning Manual, 11/2006, 6FC5397-2AP10-2BA0

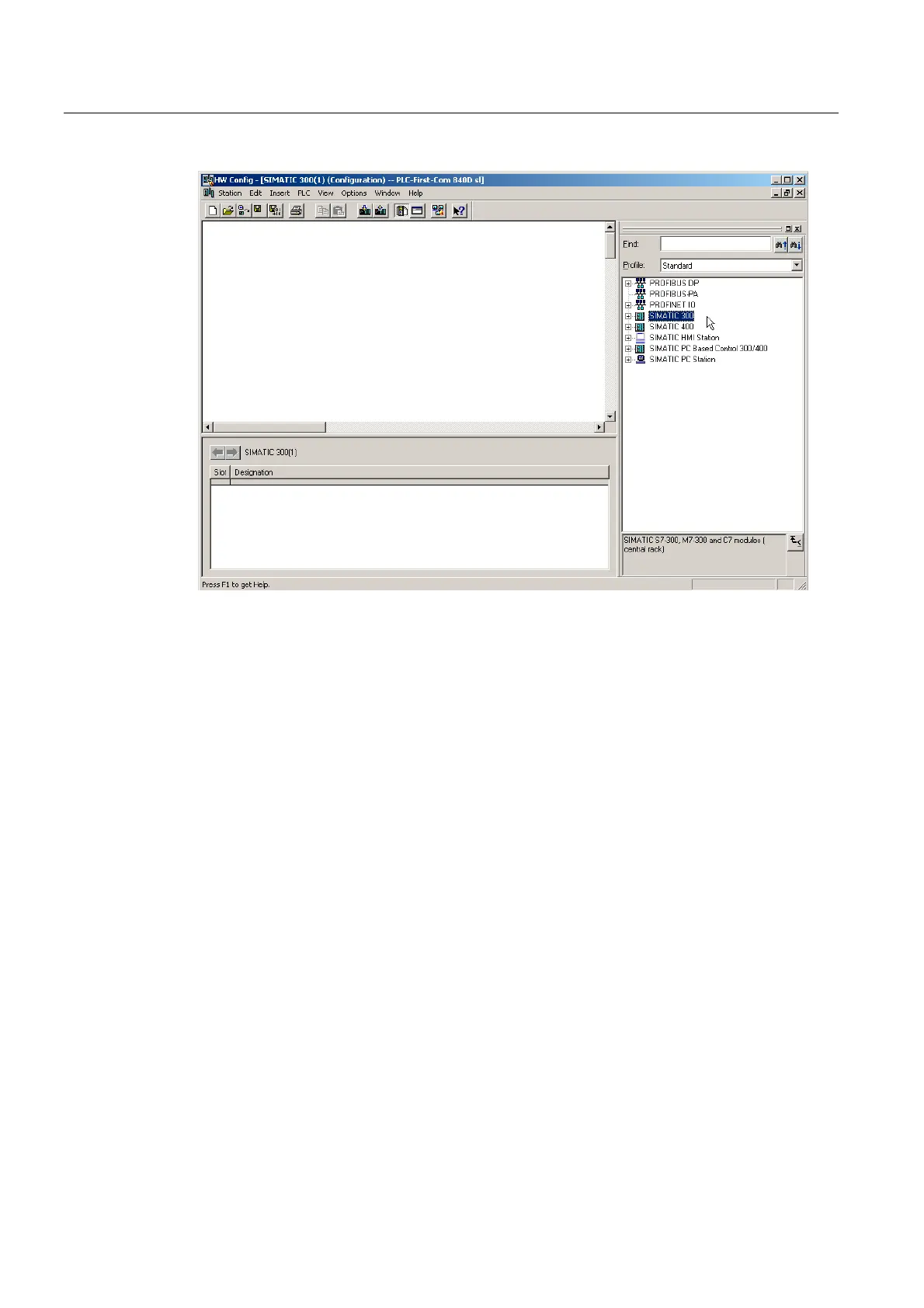

Figure 7-2 HW-Config
7.1.3 Insert NCU 7x0 in HW config
Introduction
The user interface of "HW config" mostly displays (see the following figure):
• Station window:
The station window is split. The upper part displays the structure of the station
graphically, and the lower part provides a detailed view of the selected module.
• Hardware catalog
In this catalog, the NCU 7X0 that you need for configuring the hardware is also included.
Use the operator input sequence steps described below to insert an NCU 720.1 as example.
Operating steps
1. Select "View > Catalog".
2. Search for the module in the catalog under "SIMATIC 300 > SINUMERIK > 840D sl >
NCU 720.1" (see following figure).
