10.5.12.2 Distancecoded reference marks
Distancecoded reference marks
When clearance-coded reference marks are used, referencing is divided into 2 phases:
1. Synchronize by overriding 2 reference marks
2. Traverse to target point
W
3KDVH 3KDVH
0'5()3B9(/2B326
5HIHUHQFHSRLQWSRVLWLRQLQJYHORFLW\
0'
5()3B9(/2B6($5&+B0$5.(5
5HIHUHQFHSRLQWFUHHSYHORFLW\
9HORFLW\
5HIHUHQFHPDUNVORQJLWXGLQDOPHDVXULQJ
V\VWHP
,65HIHUHQFHGV\QFKURQL]HG
'%'%;
,67UDYHONH\SOXVPLQXV
'%'%;DQG
,67UDYHUVHFRPPDQGPLQXV
'%'%;
,65HIHUHQFHSRLQWDSSURDFKGHOD\
'%'%;

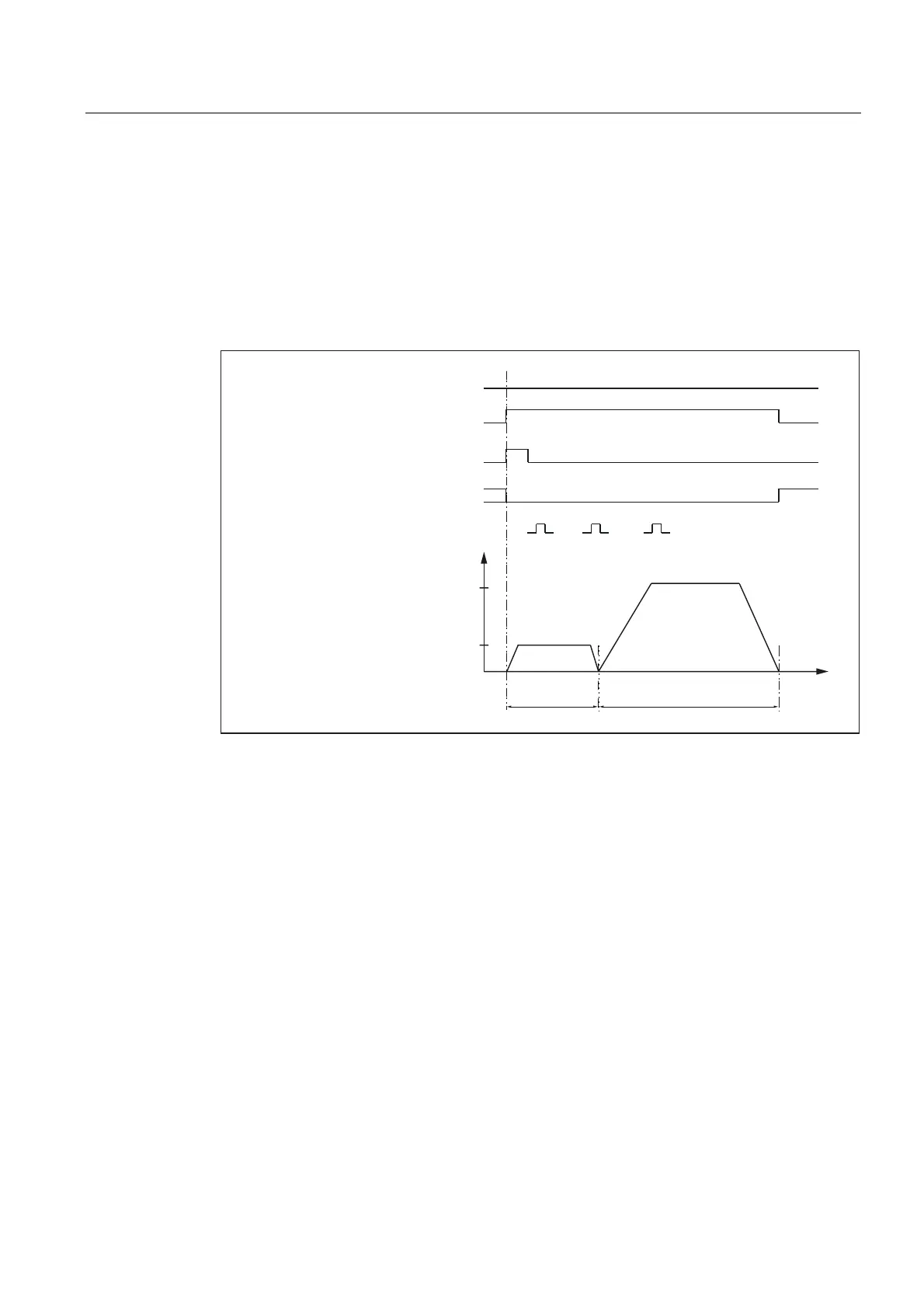

Figure 10-20 Signal chart: Distance-coded reference marks (principle)
Phase-independent data
The following machine data and interface signals are independent with respect to the
individual phases of reference point approach:
• MD11300 JOG_INC_MODE_LEVELTRIGGRD (INC/REF in jog mode)
• MD34000 REFP_CAM_IS_ACTIVE (axis with reference cam)
• MD34110 REFP_CYCLE_NR (Axis sequence for channel-specific reference point
approach)
• MD30240 ENC_TYPE (encoder type)
• MD34200 ENC_REFP_MODE (Referencing mode)
• MD34310 ENC_MARKER_INC (interval between two reference marks)
• MD34320 ENC_INVERS (inverse measuring system)
• IS: DB21, ... DBX1.0 ("Activate referencing")
• IS: DB21, ... DBX33.0 ("Referencing active")
