Tips
13
13.1 Configuration of the properties of the network interface for PROFIBUS
Introduction
In the STEP7 project, you configure the network interfaces PROFIBUS DP, via which you
want to reach the machine control panel:
Steps for PROFIBUS DP
1. You used the left mouse button to select NCU 720.1 and while holding down the mouse
button you dragged it to the "Station design" station window.
2. After you release the mouse button, configure the properties of PROFIBUS DP interface
for socket X126 (machine control panel) in the dialog box (see figure below).

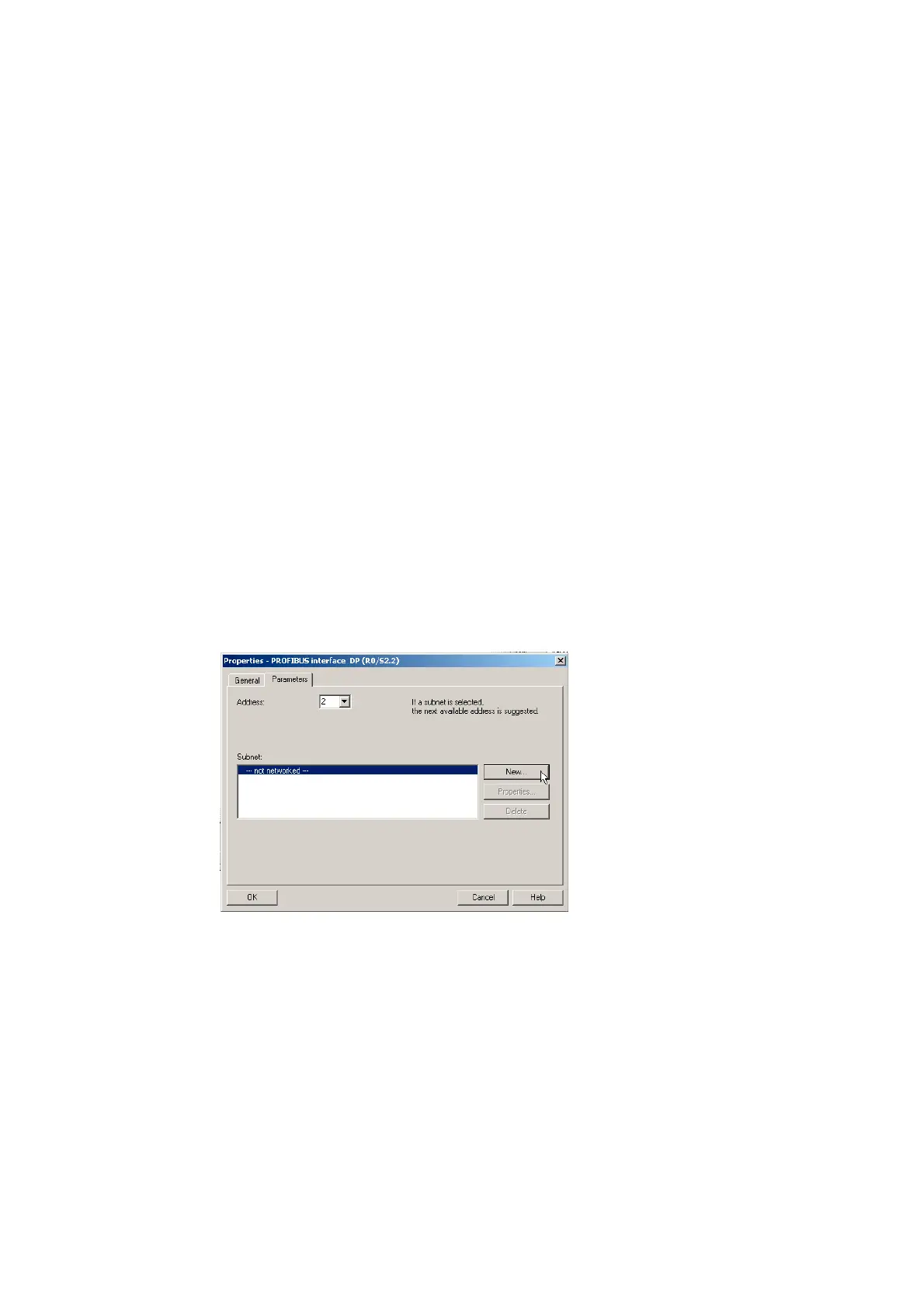

Figure 13-1 Properties of PROFIBUS DP
3. Click the following menu items one after the other:
– the "New..." button,
– the "Network settings" tab in the "Properties new subnet PROFIBUS Subnet" dialog
box.
4. Select the transmission rate "12 Mbps" for the "DP" profile (see figure below).
