13.4 Integrating PG/PC into the network (NetPro)
CNC Part 1 (NCK, PLC, drive)
Commissioning Manual, 11/2006, 6FC5397-2AP10-2BA0
195
13.4.2 PG/PC interface configuration
Introduction
Under NetPro, configure the interfaces required for commissioning at the PG/PC. These may
include the following interfaces:
• Ethernet for the communication for NCU socket X127
• PROFIBUS
Operator input sequence steps for configuring interfaces
1. Highlight the symbol "PG/PC" under NetPro.
2. Select "Object properties" <right mouse button >.
3. In the "Properties - PG/PC" dialog box displayed, select the "Interfaces" tab in the dialog
(see figure below).
Under this tab, define/configure all the required interfaces.

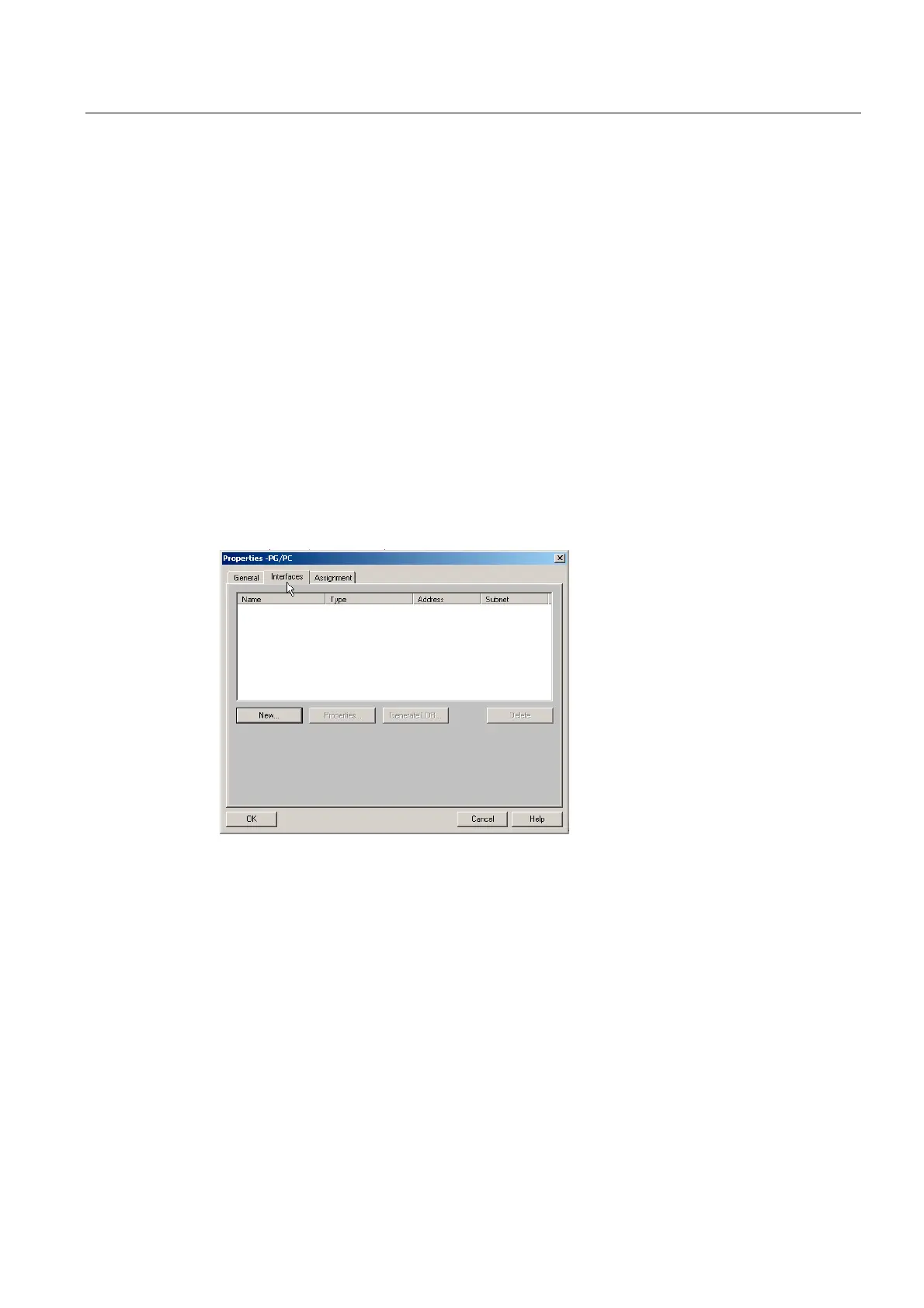

Figure 13-9 Properties - PG/PC
