Commissioning SINAMICS drives
8.3 Quick Commissioning NX (topology takeover)
CNC Part 1 (NCK, PLC, drive)
Commissioning Manual, 11/2006, 6FC5397-2AP10-2BA0
67
8.3 Quick Commissioning NX (topology takeover)
Introduction
You have completed a topology takeover of the associated drive components for the NCU.
You have inserted a NX in the HW Config for the NCU.
If you change to the "Drive system" menu with the <Recall> key, you will get an overview of
the associated components.
The NX ("CU_CX32_126") is he only drive system which does not yet have any sub-
ordinated drive components (see following figure).

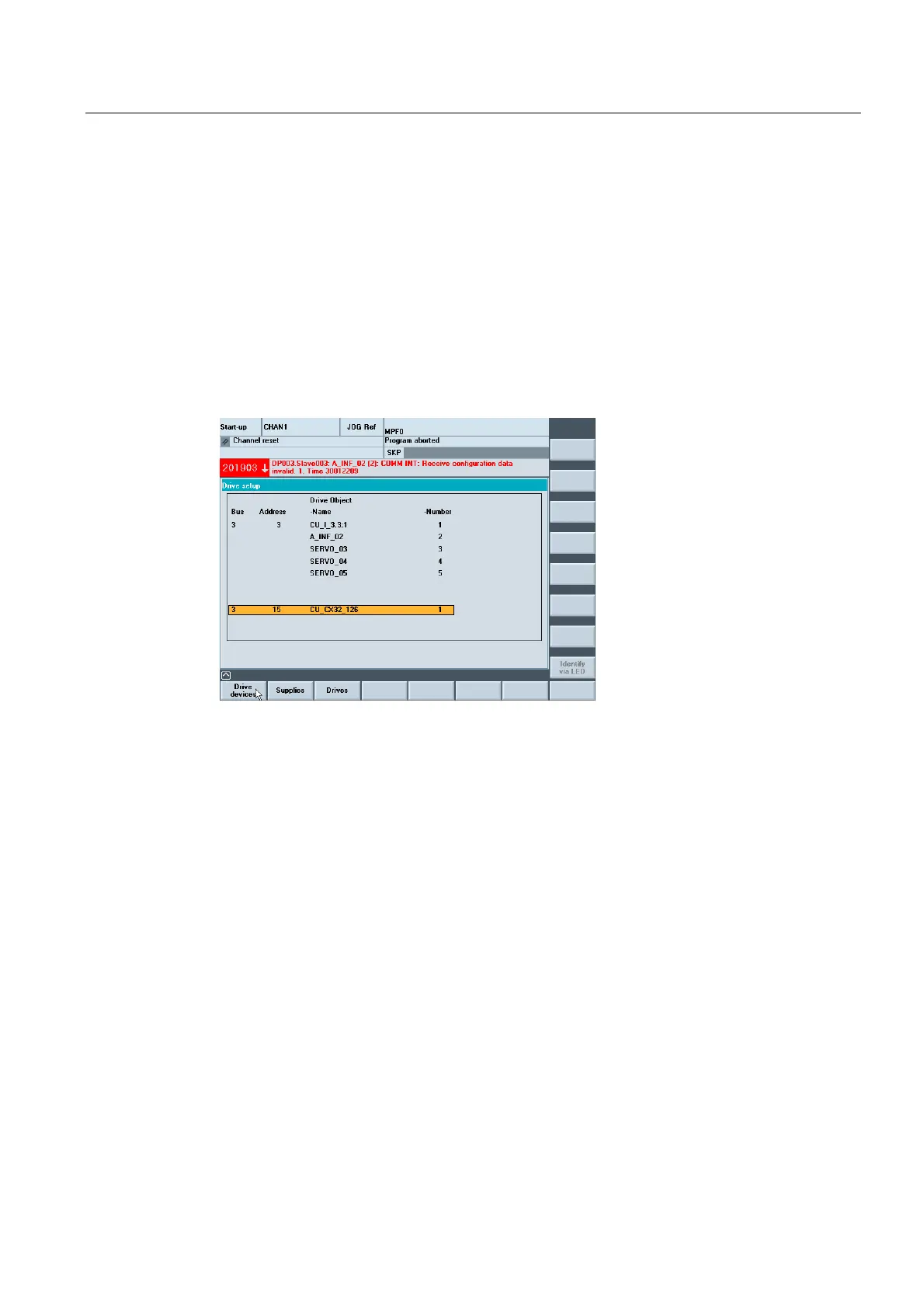

Figure 8-8 "Drive systems" menu after topology matching
You have the following two options to execute topology recognition for additional drive
modules.
• Topology recognition via the "Drive system" menu
• Topology recognition via the "Drive units" menu
Operating sequences via the "Drive system" menu
1. Select the NX with the cursor keys (e.g. "CU_CX32_126").
2. Press the "Drive units" softkey.
The HMI recognizes, that topology takeover has not yet taken place.
Quick Commissioning starts.
3. Start the topology takeover queries by clicking on "OK" twice.
