Commissioning SINAMICS drives
8.2 Quick Commissioning NCU (topology takeover)
CNC Part 1 (NCK, PLC, drive)
66 Commissioning Manual, 11/2006, 6FC5397-2AP10-2BA0
Figure 8-5 Topology matching 3
Figure 8-6 Topology matching 4
4. Confirm the information with "OK".
Topology matching for drive components of the NCU has been completed.

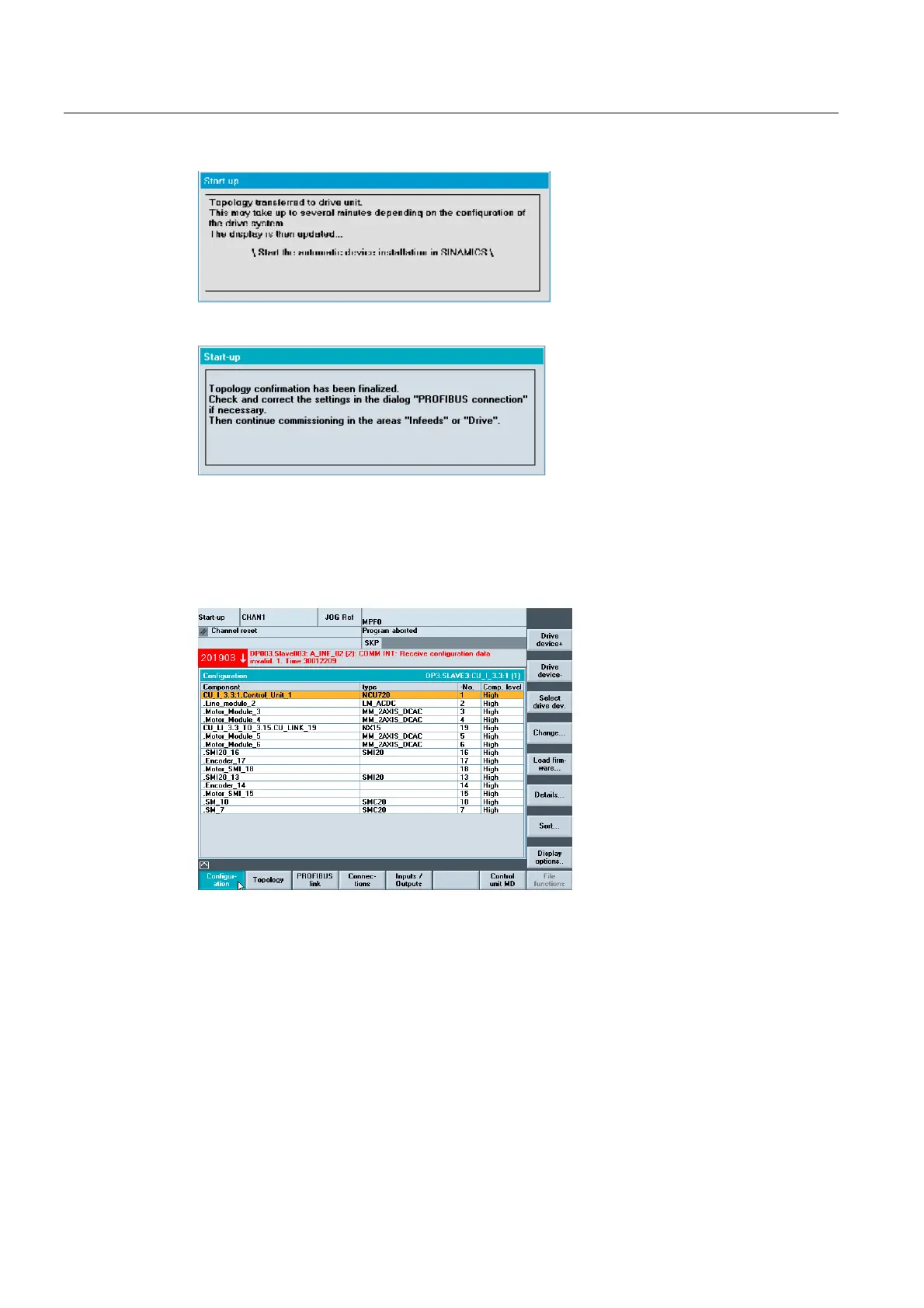

The following components, recognized in the drive group, are displayed:
Figure 8-7 "Drive units" menu after topology matching
The NX with associated drive components is commissioned in the next step.
