Commissioning SINAMICS drives
8.3 Quick Commissioning NX (topology takeover)
CNC Part 1 (NCK, PLC, drive)
68 Commissioning Manual, 11/2006, 6FC5397-2AP10-2BA0

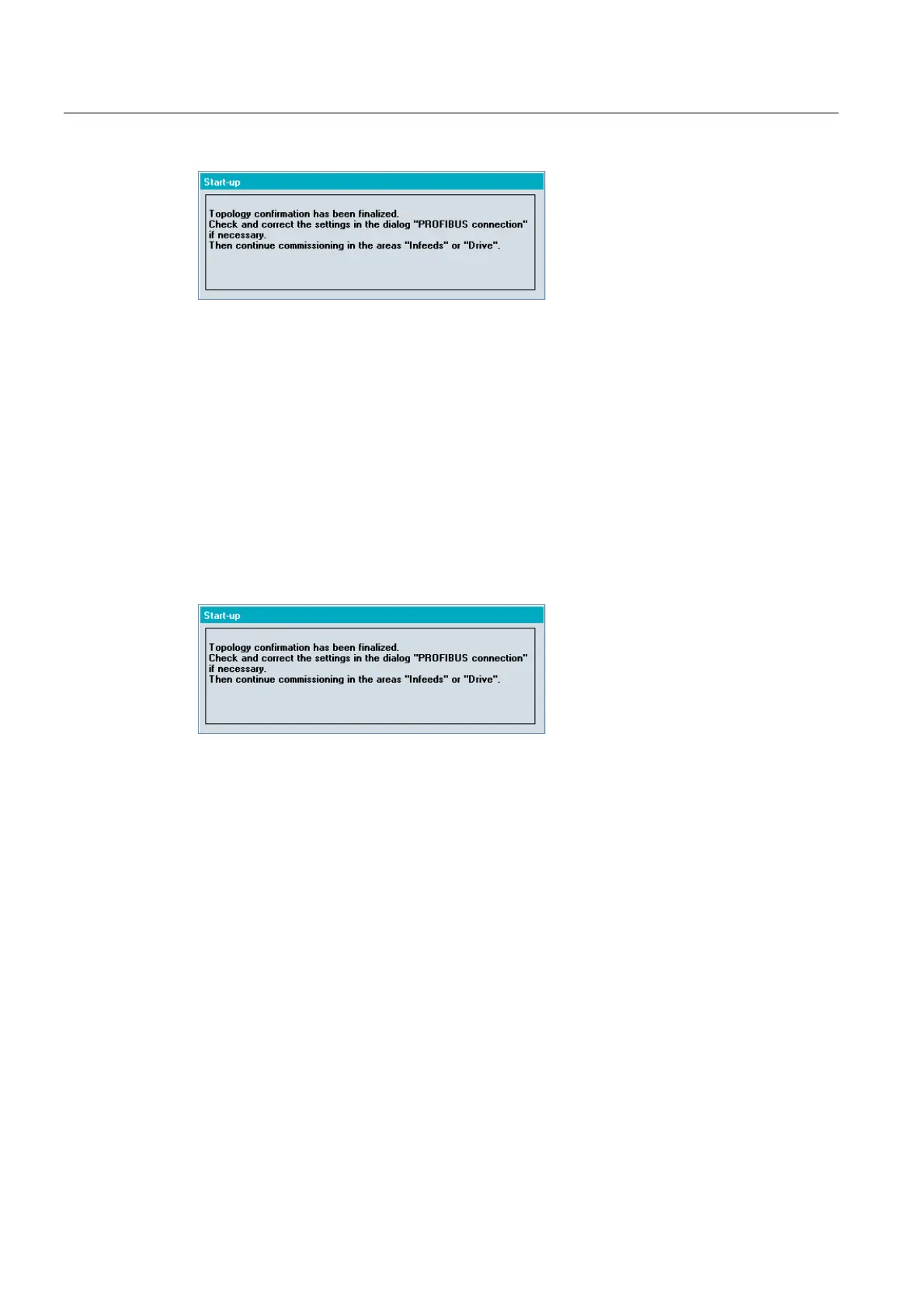

Figure 8-9 Topology matching completed
4. Close the information with "OK".
Operating sequence via the "Drive units" menu
1. You are in the "Drive units" menu (see last figure "Drive units menu" after topology
matching).
2. Select the next drive module, the NX (e.g. " CU_CX32_126") with the vertical softkey
"Drive unit+/Drive unit-".
3. The HMI recognizes, that topology takeover has not yet taken place.
Quick Commissioning starts.
Start the topology takeover queries by clicking on "OK" twice.
Figure 8-10 Topology matching completed
4. Close the information with "OK".
Topology matching completed
Topology matching for drive units with the associated drive components has been
completed.
As the next step you can perform the factory settings.
Factory settings are preset when the software is supplied on the CompactFlash card.
For first commissioning you can use the
operating steps for performing the update of
component frimware (Page
70) to continue.
If you have already performed a commissioning, then proceed with the operating steps for
establishing factory settings.
