13.4 Integrating PG/PC into the network (NetPro)
CNC Part 1 (NCK, PLC, drive)
Commissioning Manual, 11/2006, 6FC5397-2AP10-2BA0
199

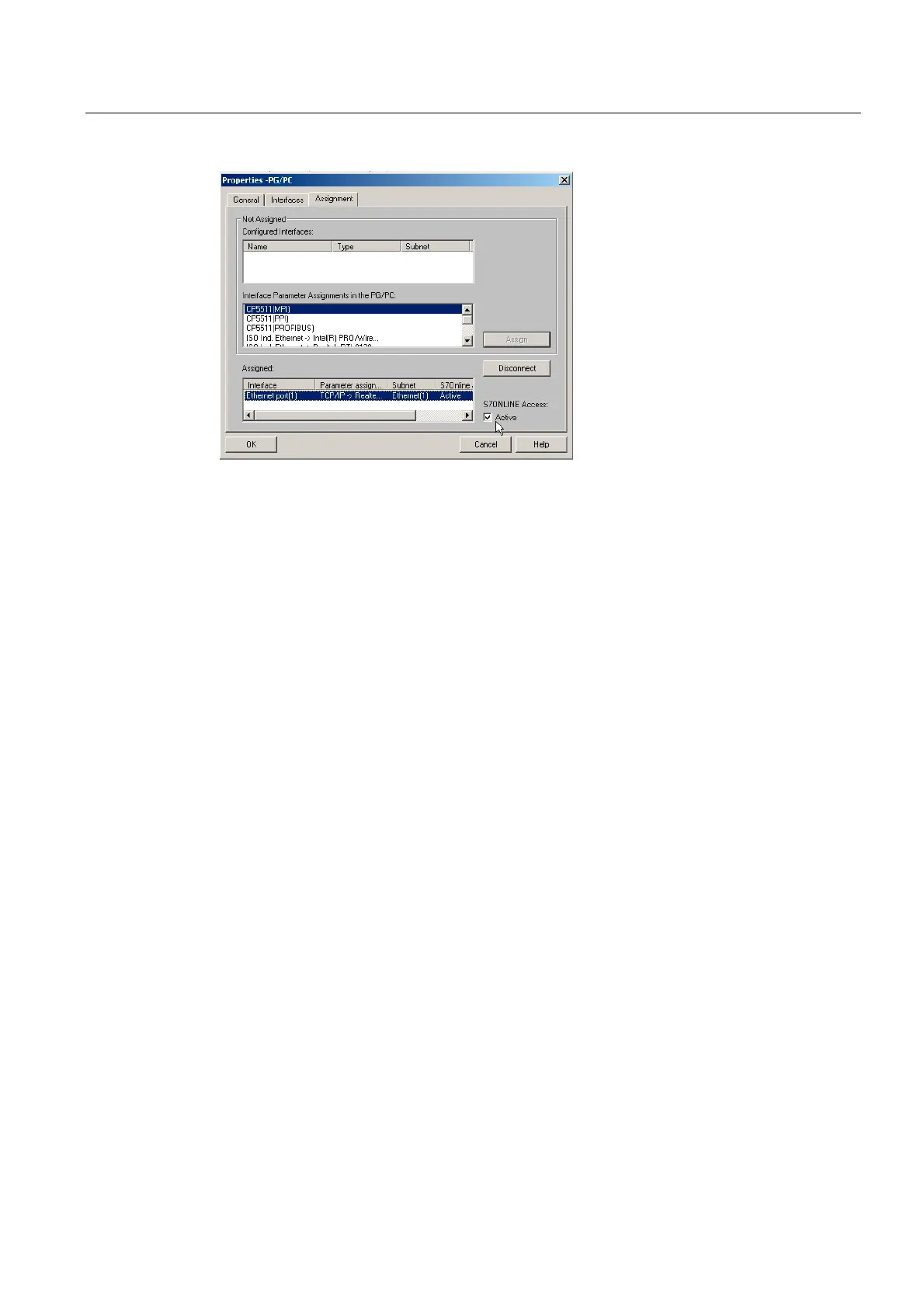

Figure 13-14 Assigning Ethernet interface
5. Now assign the remaining configured interfaces (PROFIBUS).
From those interfaces assigned, one must be marked as "active".
6. Select "Ethernet interface" in the field "Assigned" and mark the field next to it as "active".
7. Click on "OK" to end the dialog "Properties - PG/PC".
In NetPro, the PG/PC interface declared as "active" is highlighted in YELLOW (see figure
below).
