13.3 Configuring the communication between the PLC and the drive
CNC Part 1 (NCK, PLC, drive)
Commissioning Manual, 11/2006, 6FC5397-2AP10-2BA0
191
entered in MD13050 DRIVE-LOGIC_ADRESS[0]. The addresses have a gap of 40 bytes.

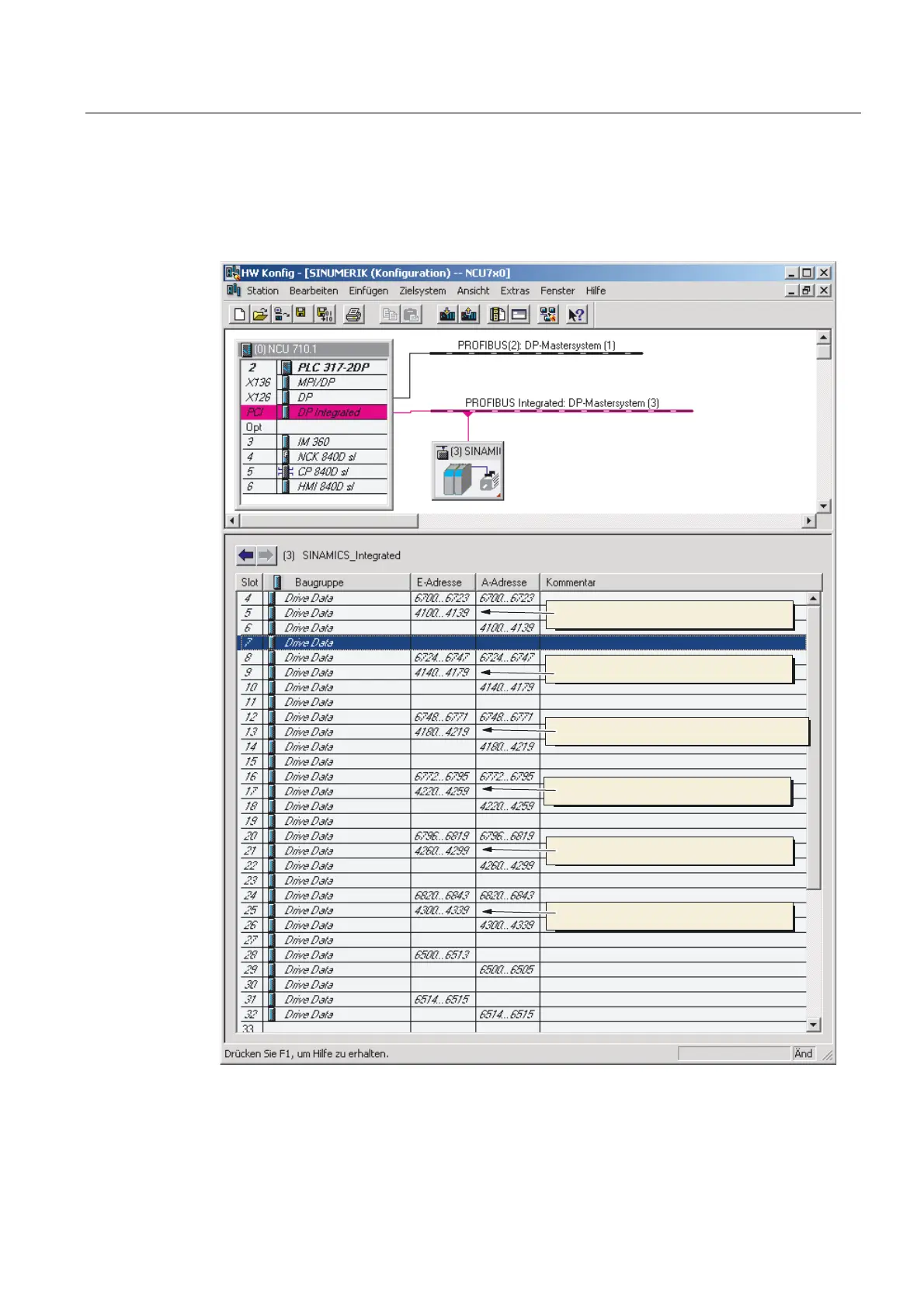

The following figure shows how the default values MD13050 DRIVE-
LOGIC_ADRESS[0…5] correspond to the input/output addresses for standard
configuration of the PLC.
0''5,9(B/2*,&B$''5(66>@
0''5,9(B/2*,&B$''5(66>@
0''5,9(B/2*,&B$''5(66>@
0''5,9(B/2*,&B$''5(66>@
0''5,9(B/2*,&B$''5(66>@
0''5,9(B/2*,&B$''5(66>@
Figure 13-6 SINAMICS Integrated addresses
