– The fields "Time Ti" and "Time To" must contain a value "< 2ms".
7. Click on "OK" three times.
8. Module NCU 720.1 with SINAMICS S120 is inserted into the HW config (see figure
below).
Note
With the <F4> key and confirmation of the question regarding "Reorganize", you can
reorganize the display in the station window.

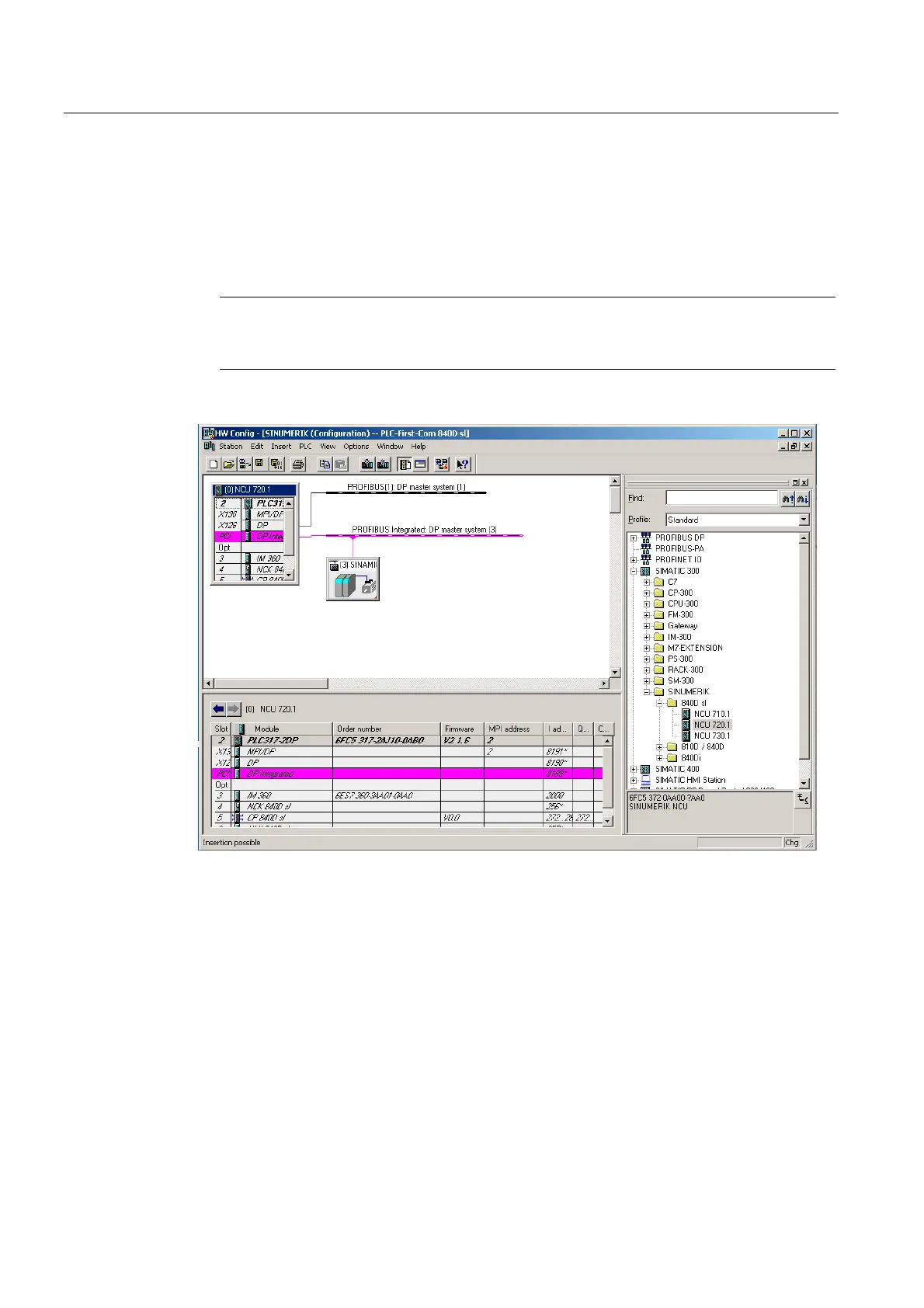

Figure 13-21 HW config with NCU 7x0
As the next step configure a machine control panel with hand wheel.
