PLC commissioning
7.1 Creating a SIMATIC S7 project
CNC Part 1 (NCK, PLC, drive)
52 Commissioning Manual, 11/2006, 6FC5397-2AP10-2BA0

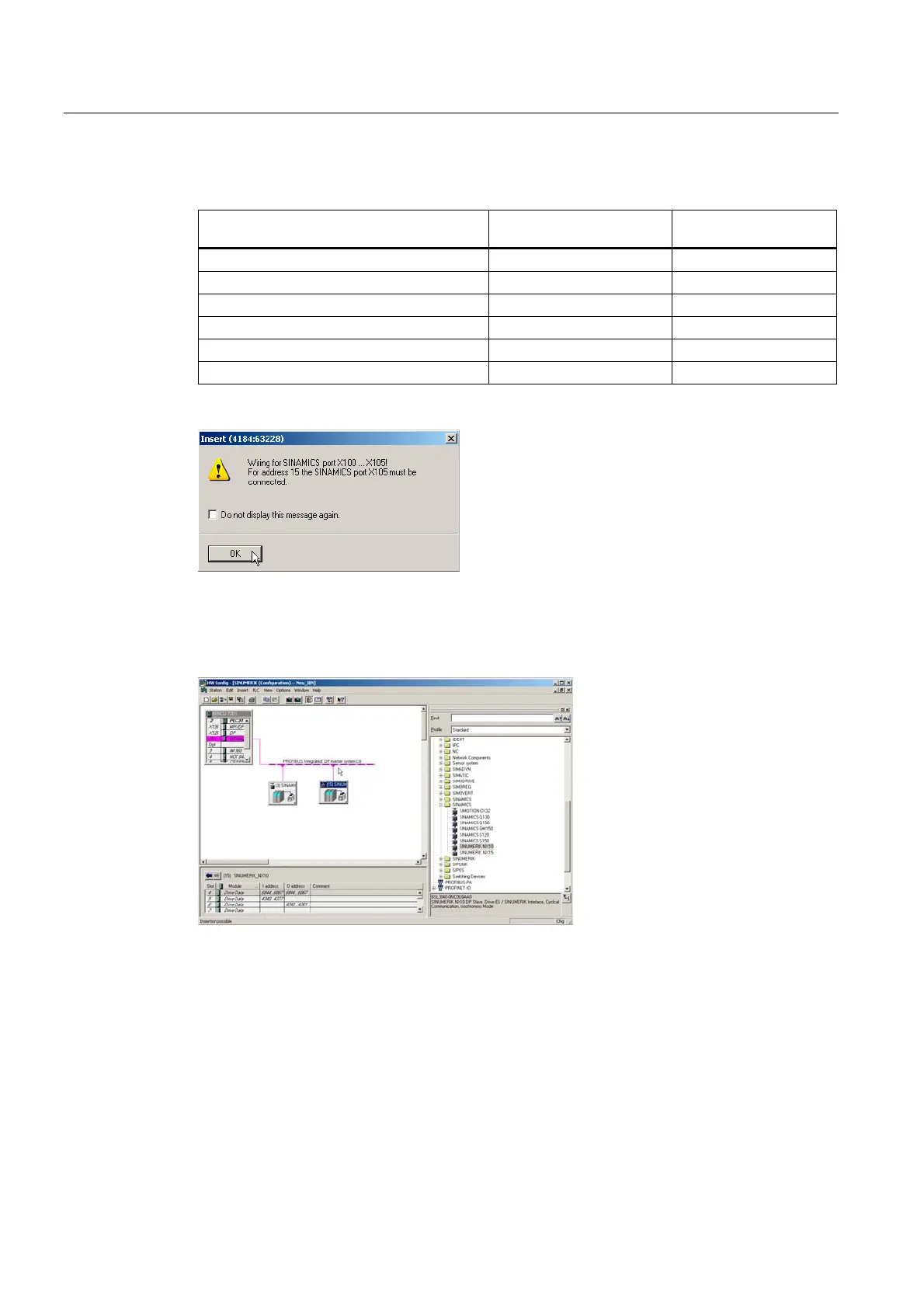

The following table contains the wiring:
Integrated PROFIBUS address DRIVE-CLiQ Socket
NCU720
DRIVE-CLiQ Socket
NCU710
10 X100 X100
11 X101 X101
12 X102 X102
13 X103 X103
14 X104 -
15 X105 -
1. Enter the address and press "OK".
Figure 7-10 Insert NX
2. Confirm the wiring notification with "OK".
3. After releasing the mouse button, the NX module is added (see figure below).
Figure 7-11 NX in HW Config
See also
Commissioning NX <-> Drive (Page 208)
