PLC commissioning
7.2 Creating a PLC program
CNC Part 1 (NCK, PLC, drive)
Commissioning Manual, 11/2006, 6FC5397-2AP10-2BA0
55
2. Select the library for the PLC basic program, e.g. "bp7x0_11" and confirm the dialog with
"OK".
You have inserted the library and selected the PLC program under "PLC-Erst-IBN 840D
sl > SINUMERIK > PLC 317 2DP > S7 Program" (see figure below).
&RS\VRXUFHVEORFNVDQGV\PEROVLQWR
WKHIROGHUIRUWKH3/&SURJUDP

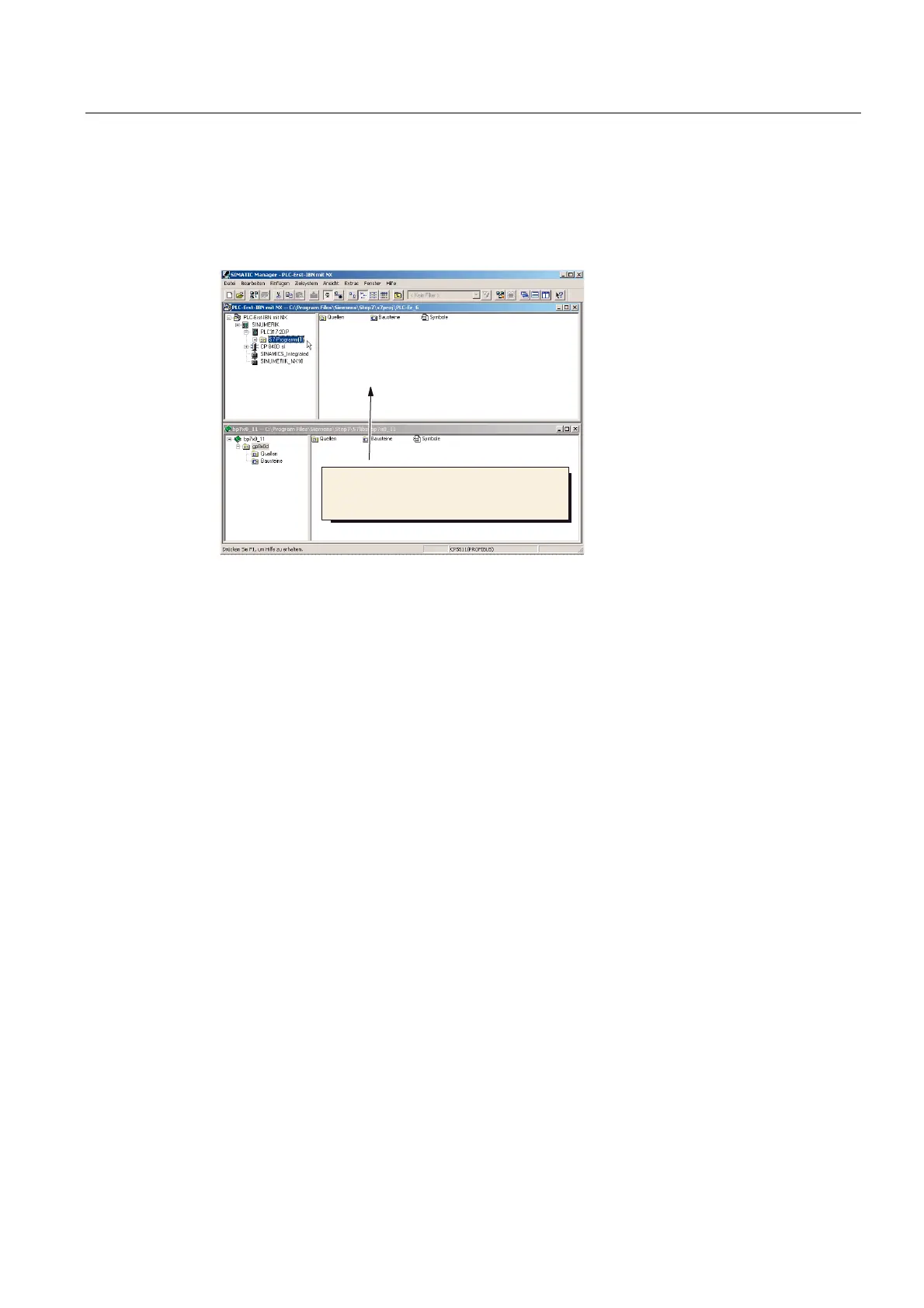

Figure 7-14 Copy the PLC program
3. Copy the sources, modules and symbols to the PLC program
Overwriting OB 1
Inserting blocks overwrites the existing organization block OB1. Confirm the query as to
whether you want to overwrite the block with "Yes".
You have now created the PLC basic program.
In the next section you will modify some of the data for the machine control panel in OB100.
