Commissioning SINAMICS drives
8.6 Commissioning using a drive wizard
CNC Part 1 (NCK, PLC, drive)
74 Commissioning Manual, 11/2006, 6FC5397-2AP10-2BA0

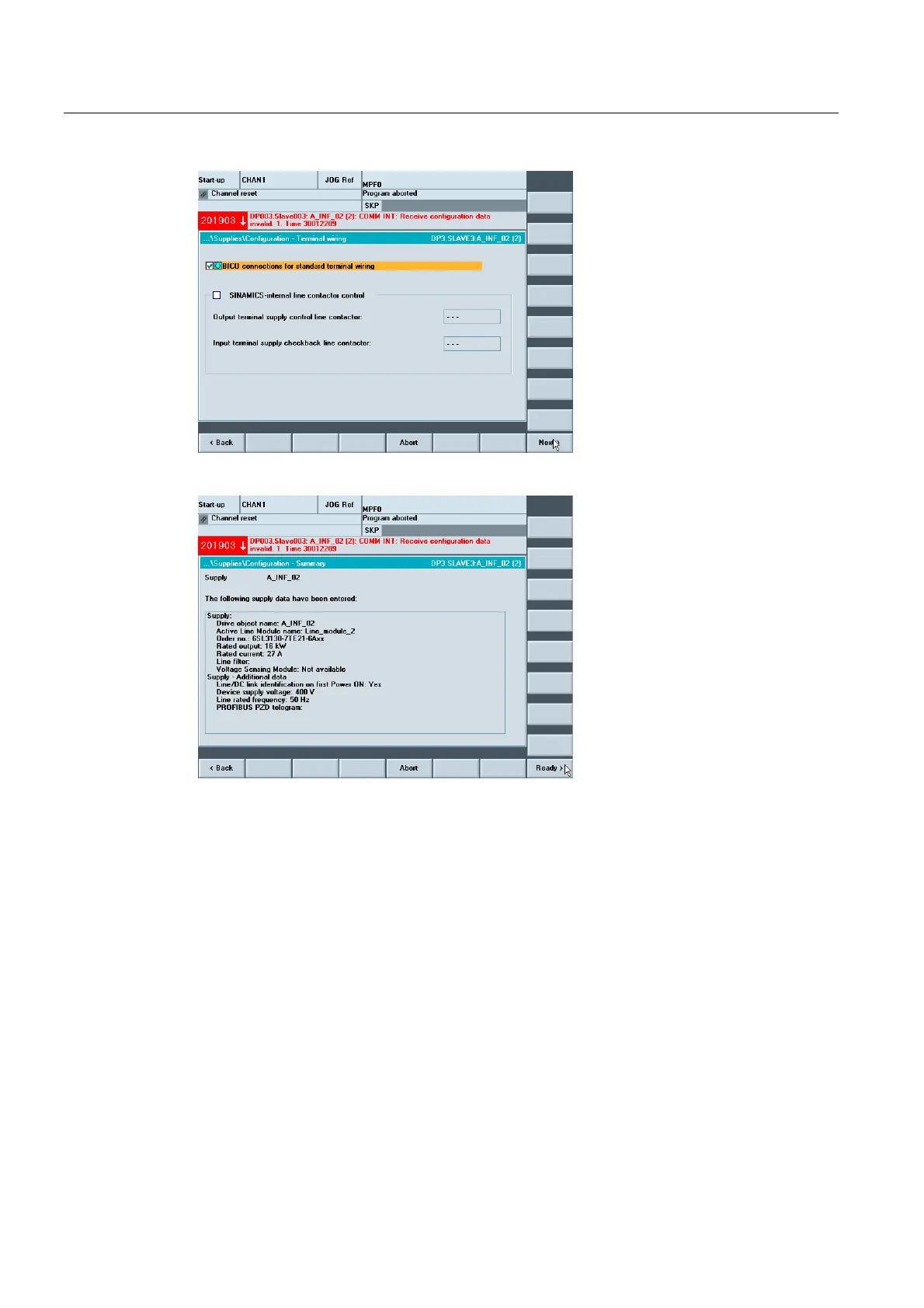

Figure 8-16 Menu "Infeed > Configuration" "BICO terminal wiring" (Next 3)
Figure 8-17 Menu "Infeed > Configuration" "Summary" (Next 4)
7. This completes the configuration for the infeed. You can check the configuration in the
summary.
8. Press the "Finish >" softkey.
The HMI transfers the configuration to the infeed and saves it.
