Commissioning SINAMICS drives
8.6 Commissioning using a drive wizard
CNC Part 1 (NCK, PLC, drive)
82 Commissioning Manual, 11/2006, 6FC5397-2AP10-2BA0

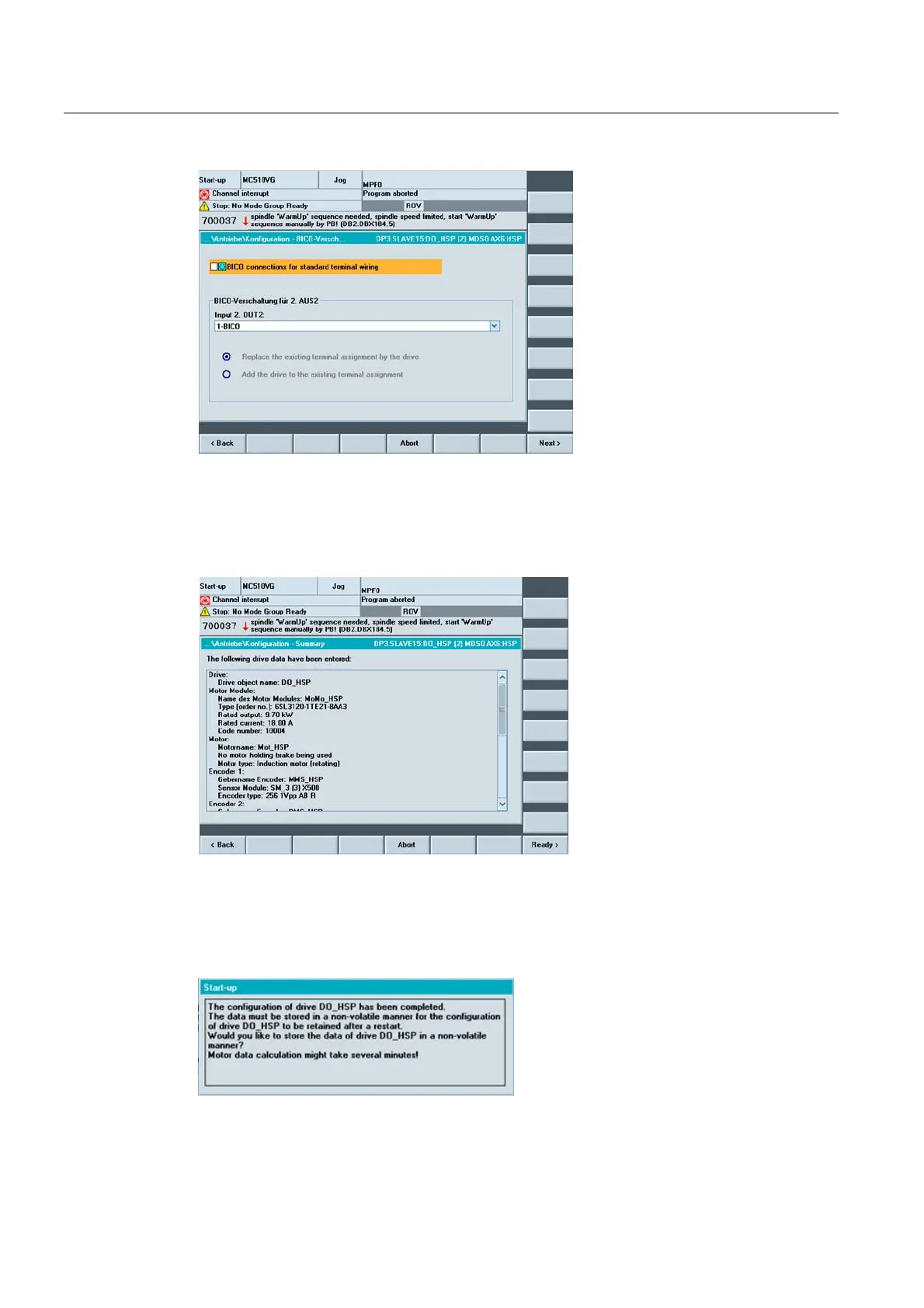

Figure 8-29 Menu "Drives > Configuration" "BICO connection" (Next 8)
23. Select the assignment for the terminal for Input 2. AUS2 (see NCU 7x0 and NX1x
Terminal Assignment (Page
270) ).
24. Press "Next >".
Figure 8-30 Menu "Drives > Configuration" "Summary" (Next 9)
25. The configuration of the drive module with externally supplied motor is completed. You
can check the configuration in the summary.
26. Press the "Finish >" softkey.
Figure 8-31 Menu "Drives > Configuration" "...save permanently..." (Finish)
