Commissioning SINAMICS drives
8.6 Commissioning using a drive wizard
CNC Part 1 (NCK, PLC, drive)
Commissioning Manual, 11/2006, 6FC5397-2AP10-2BA0
85

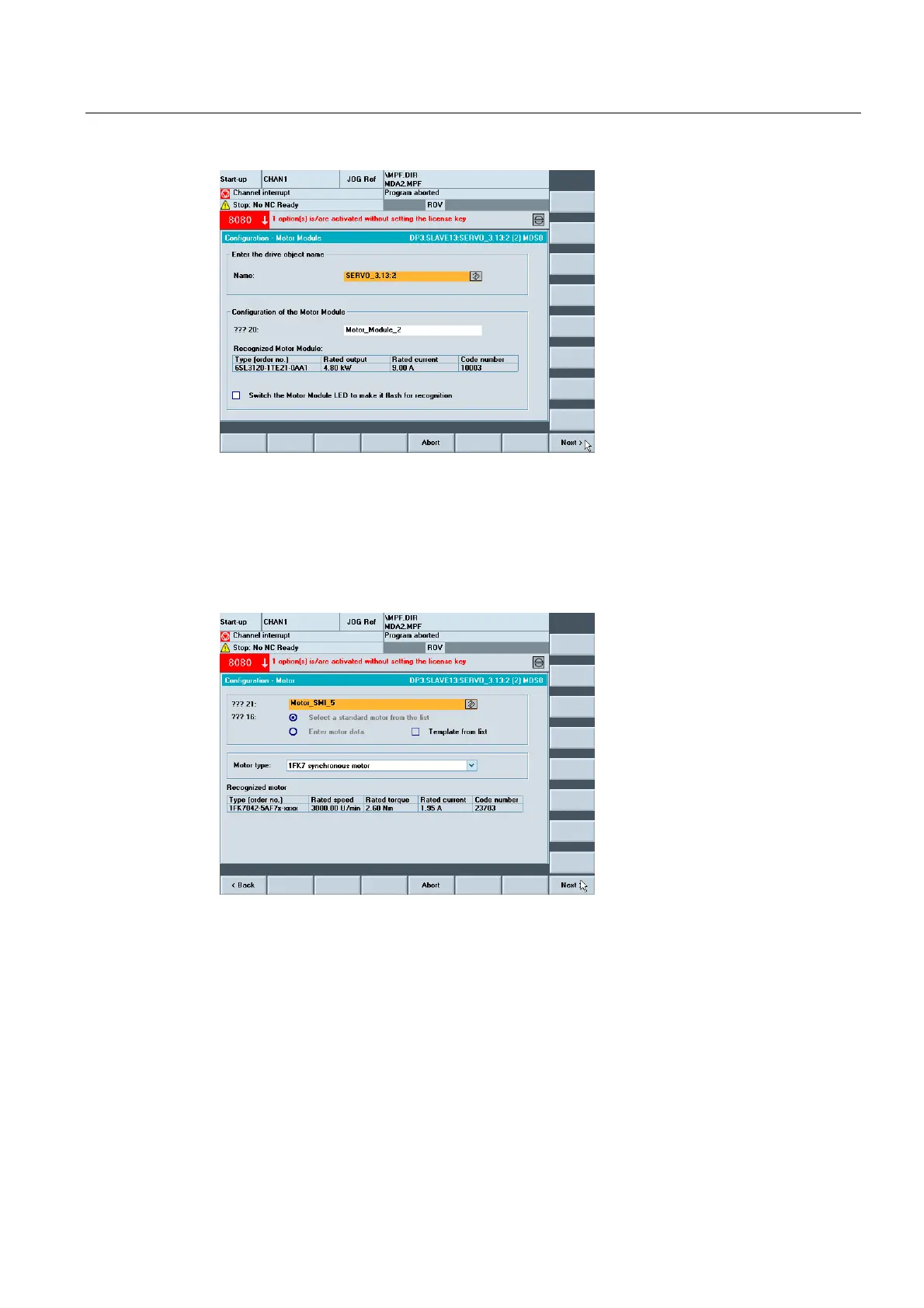

Figure 8-34 Menu "Drives > Configuration" "Motor module (SMI)" (Change)
4. The drive wizard identifies the power section (Motor module).
You can enter a name of your own choice.
Follow the drive wizard with the horizontal softkey "Next >".
5. The following dialogs are displayed in succession for parameterization:
Figure 8-35 Menu "Drives > Configuration" "Motor with SMI) (Next 1)
6. The drive wizard identifies the motor.
7. Press "Next >".
