Siemens SINUMERIK 840Di sl User Manual

5
Parameters operating area 01/2008
5.1 Tool data
5
©Siemens AG 2008 All rights reserved.
5-160 SINUMERIK 840Di sl/840D sl/840D Operating Manual HMI-Advanced (BAD) - 01/2008 Edition
Tool types
Tool type classification:
• Group type 1xx (milling cutters):
100 Milling cutter to CLDATA
110 Ball-end cylindrical die-sinking cutter
111 Ball-end tapered die-sinking cutter
120 End mill (without corner rounding)
121 End mill (with corner rounding)
130 Angle head cutter (without corner rounding)
131 Angle head cutter (with corner rounding)
140 Facing tool
145 Thread cutter
150 Side mill
151 Saw
155 Bevel cutter
156 Bevel cutter with rounding
157 Tapered die-sinking cutter
160 Drill and thread milling cutter

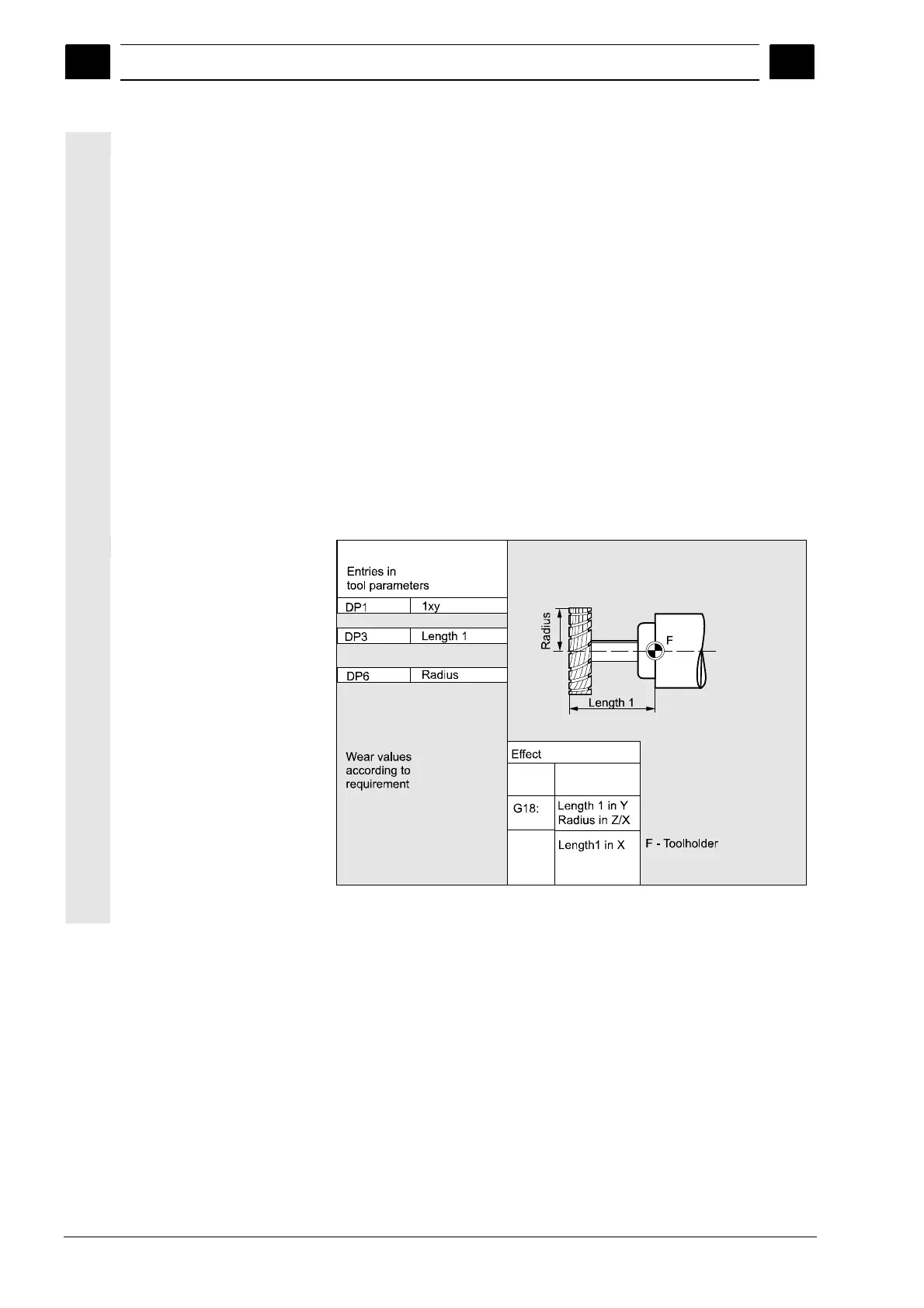

Required offset values
for a milling cutter
G17:
Length 1 in Z
Radius in X/Y
Radius in Y/Z
G19:
Other values must
be set to zero
reference point
