01/2008 Parameters operating area
5.6 Zero/work offset
5
© Siemens AG 2008 All rights reserved.
SINUMERIK 840Di sl/840D sl/840D Operating Manual HMI-Advanced (BAD) - 01/2008 Edition 5-235
5.6.4 Displaying an active settable work offset
Function
The active settable work offsets (selected from part program or MDA)
can be displayed.
Sequence of operations
Work
offset
Go to...
Press the "Work offset" and "Go to ..." softkeys.
The vertical softkey bar changes.
Active
settable WO
The "Active settable WO" window opens.
You can edit these values if necessary.
References /PGA/, Programming Guide Advanced

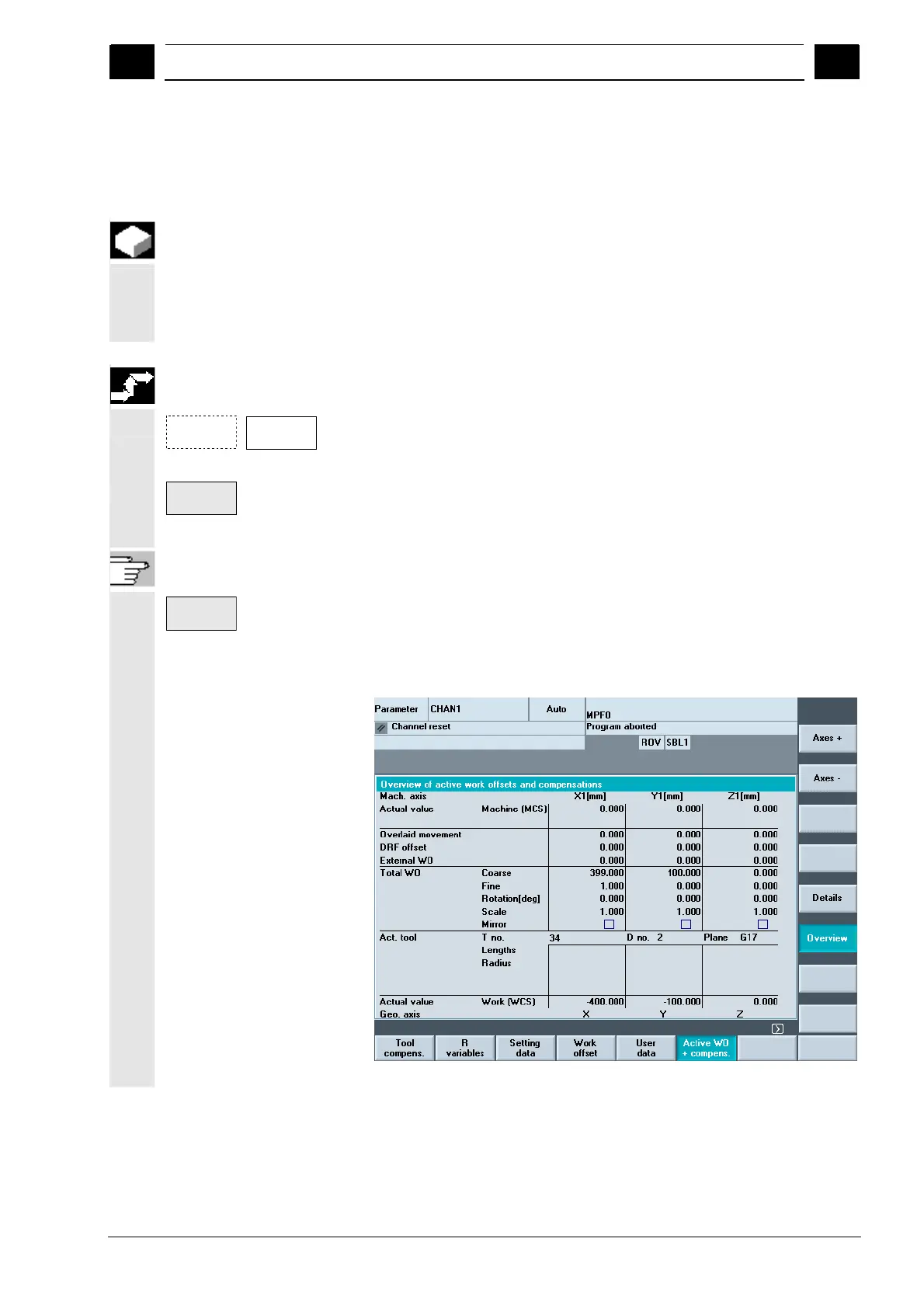

Overview
An overview shows all values of the active work offset and offsets (no
changes possible) including a selection of tool data (T number, D
number, etc.). The basic work offset and the settable work offset are
displayed as the sum.
