You can use the administration functions to copy and paste template
objects to the directories and use the above mentioned naming
conventions to rename the templates e.g., for specific languages or
workpiece names.
Save templates You can save existing templates under Services "Data out" or
read saved templates back in with "Data in".
6.2 Main screen program

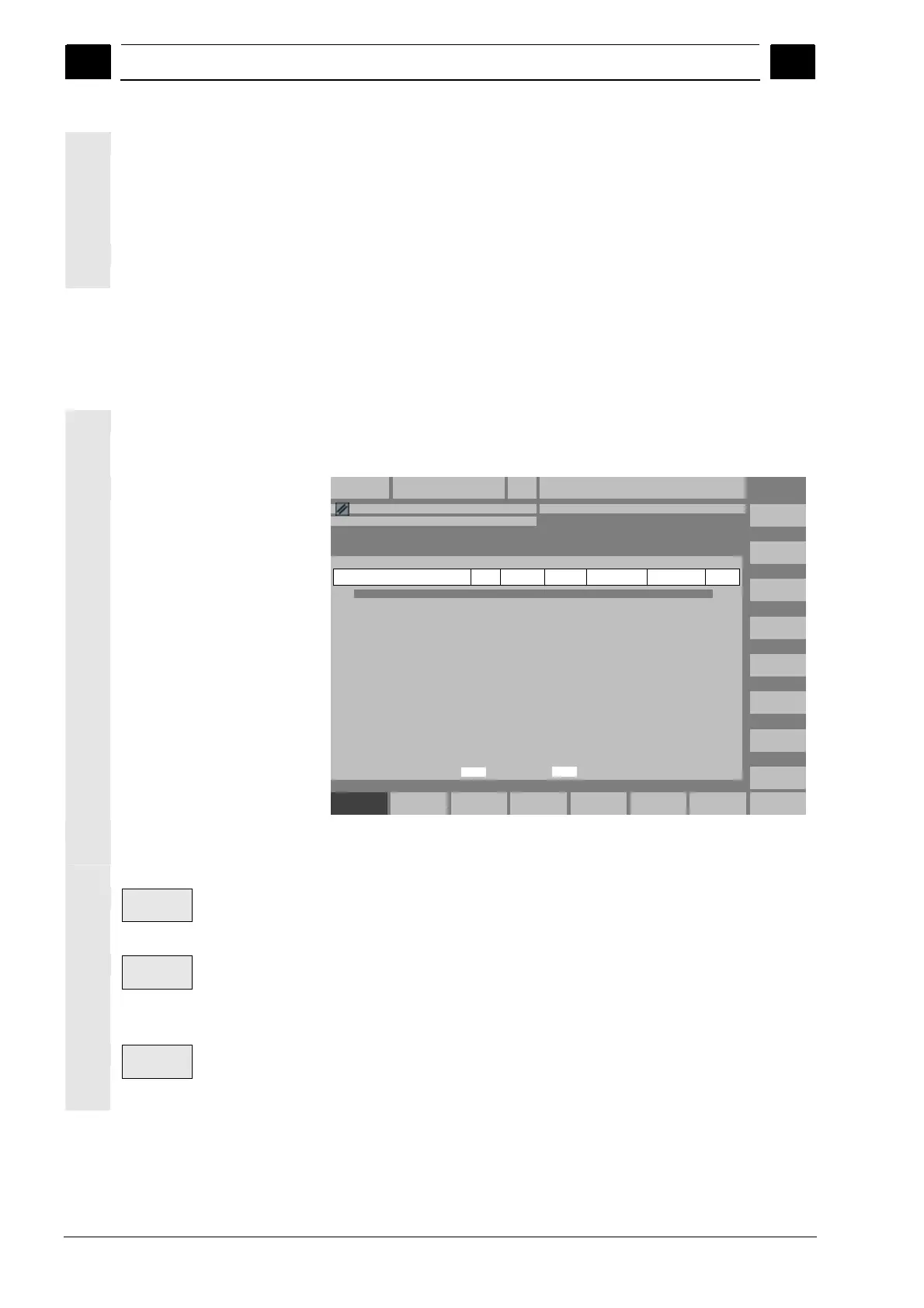

The program’s main screen contains a complete overview of all
workpiece and program directories.
Program
Channel reset
Load
HD->NC
New...
Unload
NC->HD
Simulation
Manage
programs...
Select
Sub-
programs
Parts
programs
Work-
pieces
User
cycles
Program aborted
Mda
Program overview
HUG0
WPD 01.06.2000 x
WKS WPD 01.06.2000
WKS WPD 01.06.2000
Free memory: Hard disk: NCU:
Standard
cycles
CHAN1
Save
setup data
Press INPUT key for program overview
Name
Type Loaded
Length
Date Enable
Manufact.
cycles
Horizontal softkeys
Part
programs
An overview of all part programs (main programs) stored in the
selected directory is displayed.
Sub-
programs
An overview of all subprograms stored in the selected directory is
displayed. Subprograms are processed in the same way as described
for "Process main programs".
<External
drive>
If external drives are configured, up to three softkeys can be found in
the softkey bar with the configured drive/computer designation.
