01/2008 Parameters operating area
5.3 Tool management
5
© Siemens AG 2008 All rights reserved.
SINUMERIK 840Di sl/840D sl/840D Operating Manual HMI-Advanced (BAD) - 01/2008 Edition 5-195
5.3.3 Change in the significance/representation of tool wear values
In the tool list screens, additional symbols indicate whether special
features have to be taken into account for the current tool according to
G code 56 and setting data SD 42935: WEAR_TRANSFORM.
Symbols
/
The G56 reset value is TOWSTD
/ and at least 1 bit in
$SC_WEAR_TRANSFORM is set.

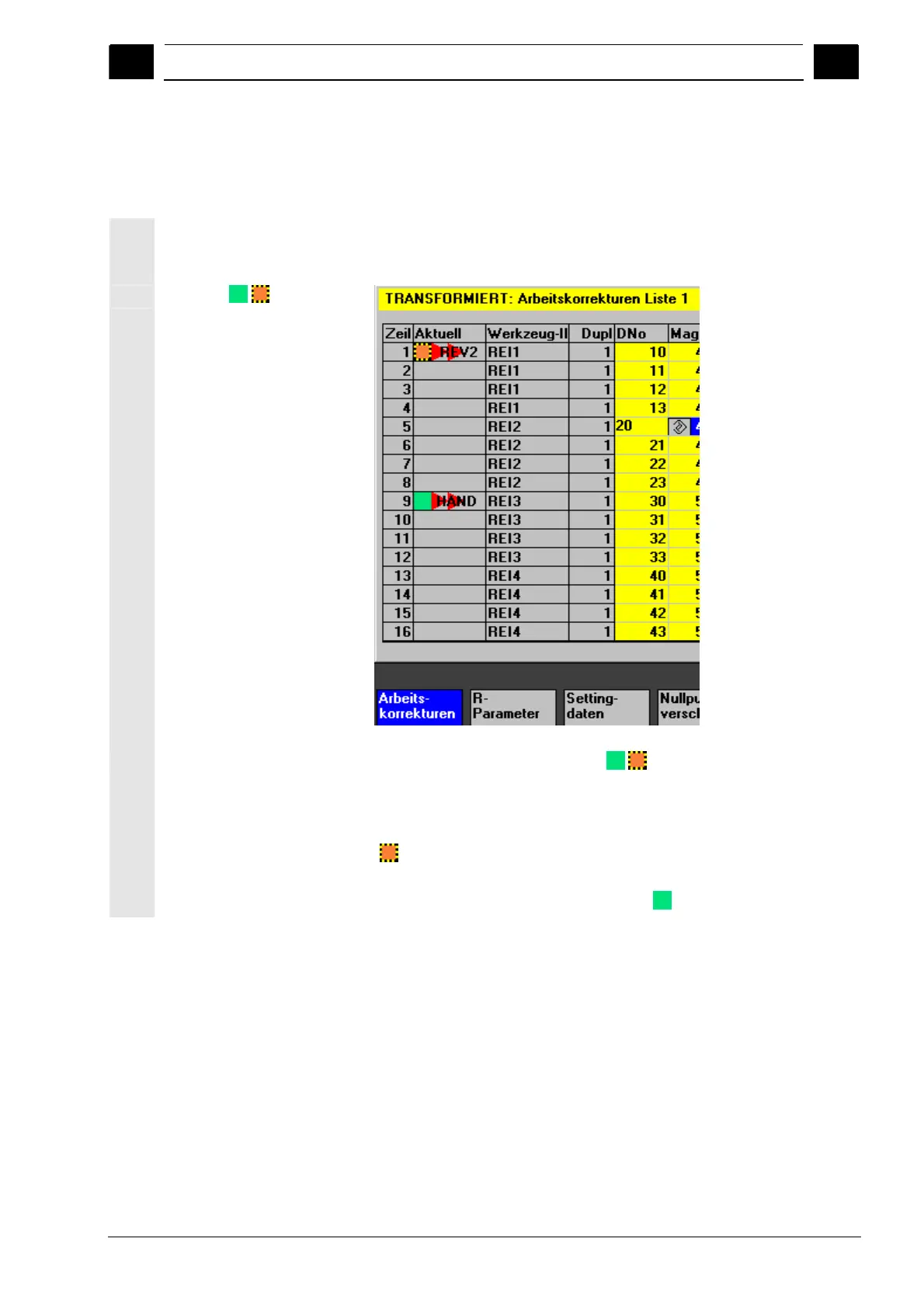

The current tool for channel "REV2" is indicated in row 1. The current
value of G56 on channel "REV2" deviates from the G56 reset value
(
).
Row 9 displays the current tool for channel "HAND". There the current
value of G56 is equal to the reset value (
).
