01/2008 Machine operating area
4.1 CNC data structure
4
© Siemens AG 2008 All rights reserved.
SINUMERIK 840Di sl/840D sl/840D Operating Manual HMI-Advanced (BAD) - 01/2008 Edition 4-89

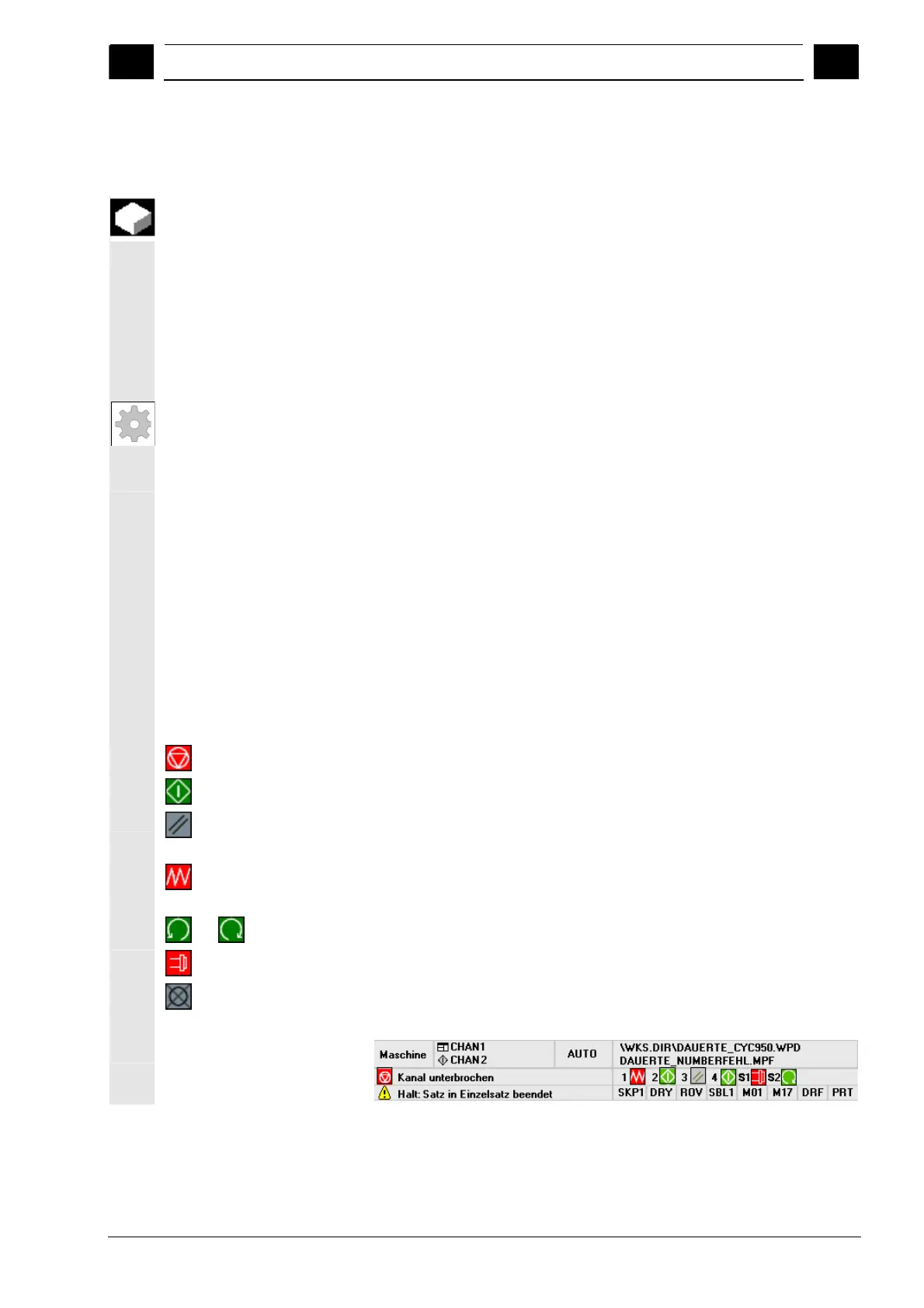

4.1.3 Cross-channel status display via symbols
Function
The status of channels, feedrate and spindles are output for a number
of channels via symbols in the program status line as well as the
machine status, if applicable - or the machine status only.
The machine manufacturer can customize the display; custom
symbols can be displayed in addition to the standard symbols.
Initially, this only applies to permanent one-to-one links involving one
HMI and one NCK.
Machine manufacturer
Please follow the instructions of the machine manufacturer.
The following SINUMERIK-specific status displays are
available:
• Channel status with overlaid spindle and feedrate stop
• Channel status with overlaid feedrate stop
• Channel status
• Spindle status
Significance of colors:
Red Machine/control stopped
Yellow Waiting for operator to take action
Green Machine/control running
Gray Miscellaneous
Channel status
Channel interrupted
Channel active
Channel RESET
Feedrate status
Feedrate is not enabled
or
Spindle status
Spindle rotating counterclockwise or clockwise
Spindle is not enabled
Spindle stop
Application example with 4 channels and 2 spindles:
