Swivel
adjustment

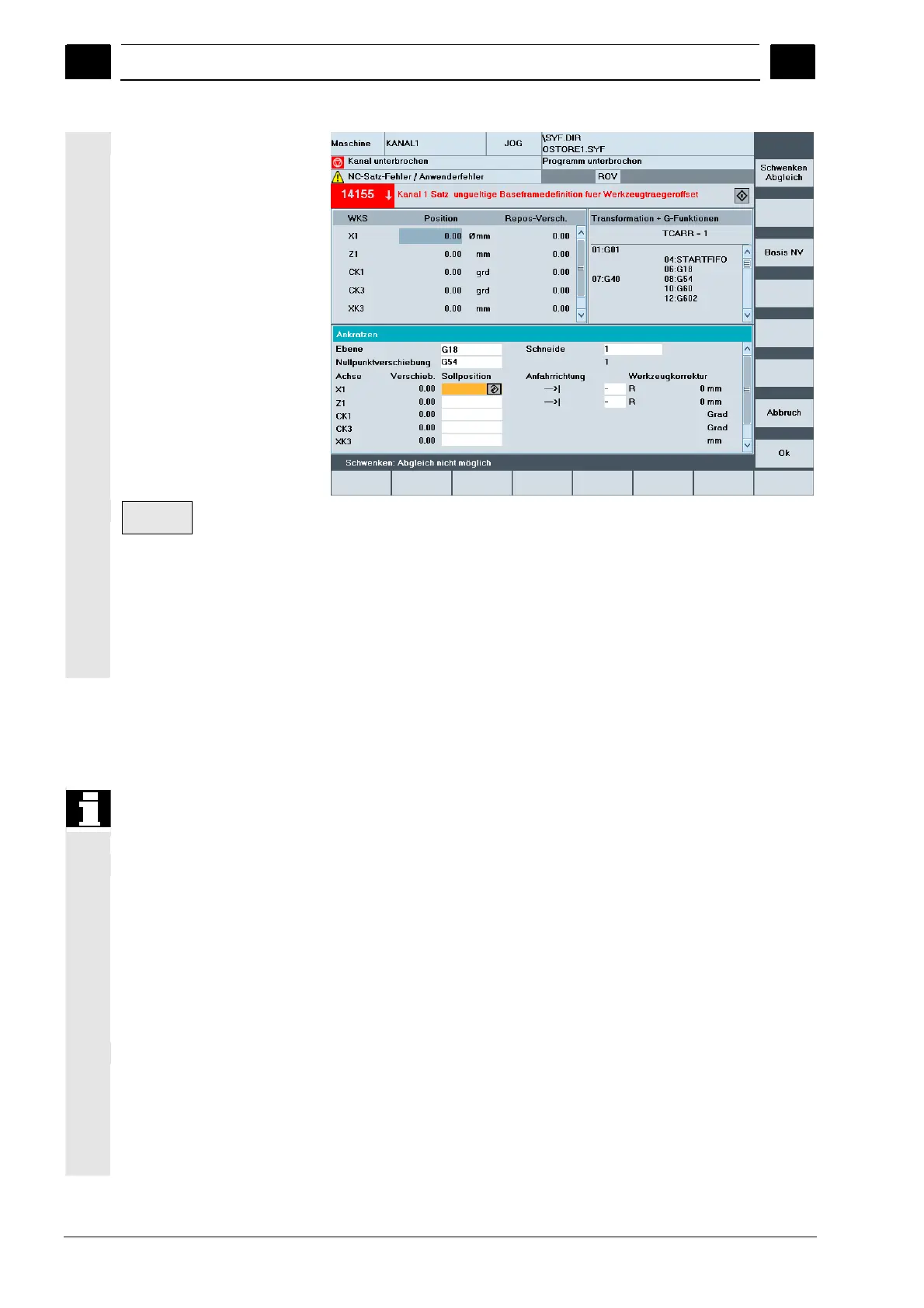

With scratching in a swiveled level with rotary axes without encoder,
the "Swivel adjustment" vertical softkey appears in addition to the
toolholder information in the "Transformations + G functions" window.
Upon activation, the NC updates the toolholder data after scratching.
If this operation is successful, "Swivel adjustment completed" is output
in the message line. If an error occurs, e.g. the channel is in "active"
state or the connection with the NC is disrupted, "Swiveling:
adjustment not possible" is displayed in the message line.
4.4.7 Displaying system frames
If system frames have been activated via MD, they can be displayed
via the Parameters operating area, Active WO + Override, Details.
The following assignment is applicable:
$P_SETFR System frame for actual value setting, scratching
$P_EXTFR System frame for work offset external
$P_PARTFR System frame for TCARR and PAROT
$P_TOOLFR System frame for TOROT and TOFRAME
$P_WPFR System frame for workpieces
$P_CYCFR System frame for cycles
Both the offset set via frames (coarse and fine) and the rotation and
mirroring defined there are displayed. Display is according to the
position in the frame chain.
You can choose between the system frames and basic frames by
scrolling through the desired section.
To Next Page
