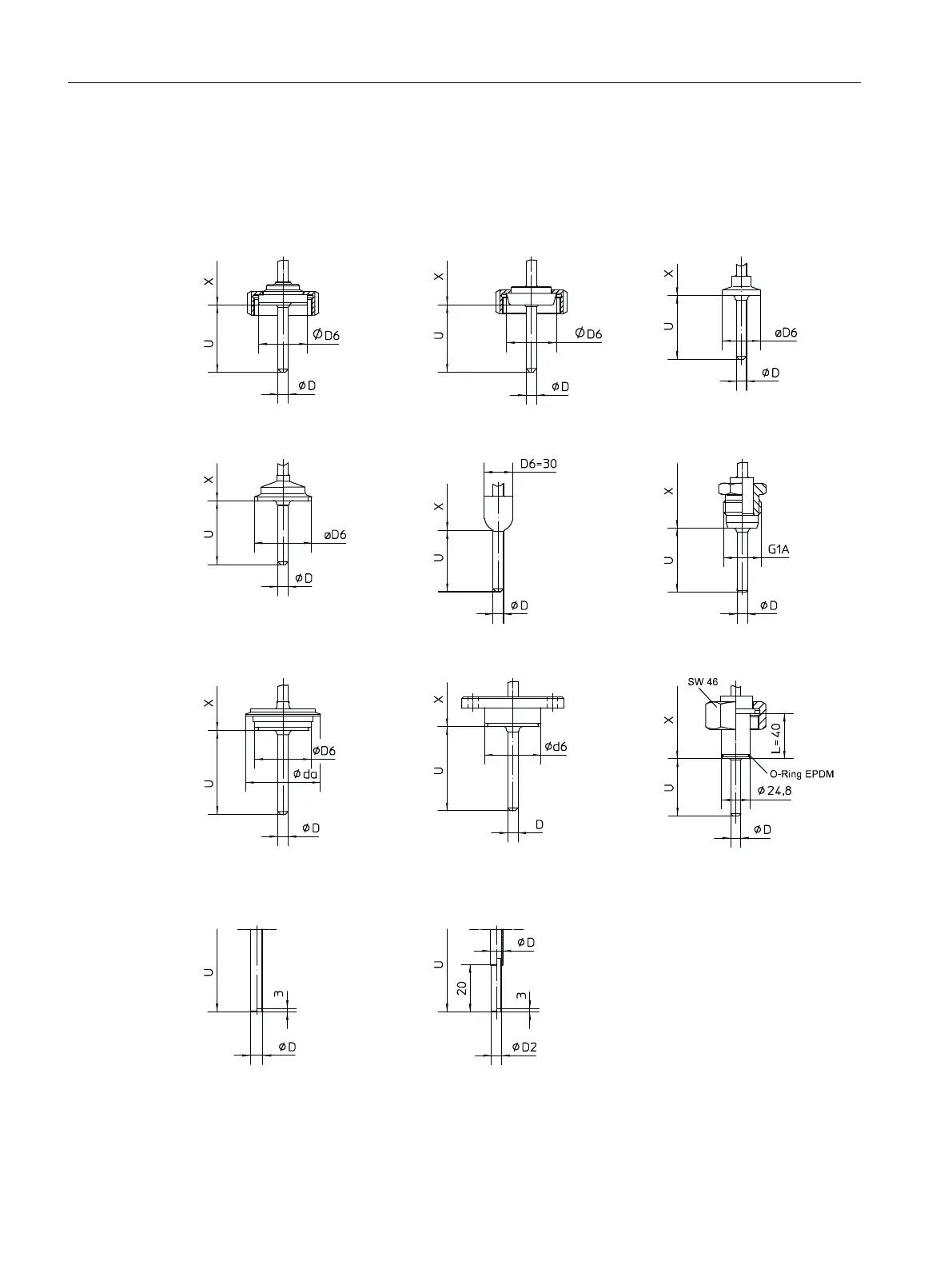

Process connection options:
tapered coupling with
groove union nut asep‐
tic design per
DIN 11864-1
tapered coupling with
groove union nut per
DIN 11851
tri-clamp connection
clamp connection per
DIN 32676 or ISO 2852
thermowell with weld‐
ing ball 30 x 40 mm
G1A dead-zone free (con‐
ical metal taper)
Varivent connection NEUMO connection connection per INGOLD
DN 25 with coupling nut
neck tube according to DIN 43772
model 2 similar model 3 reduced
tip
Dimension drawings
12.4 SITRANS TS300
SITRANS TS100/TS200/TS300/TS500/TSinsert/TSthermowell
156 Operating Instructions, 08/2020, A5E47810090-AA
