Automatic
Placement
Afterplacingseveralobjectsonthebuildtray,youcanletObjetStudio
arrangethembeforeprinting.Thisensuresthattheobjectsarepositioned
properly,andthattheywillbeprintedintheshortesttimeandwitha
minimumofmaterial.
To automatically arrange objects on the build tray:
¾
OntheTraySettingsribbon,click .
or—
FromtheToolsmenu,select
Automatic Placement.

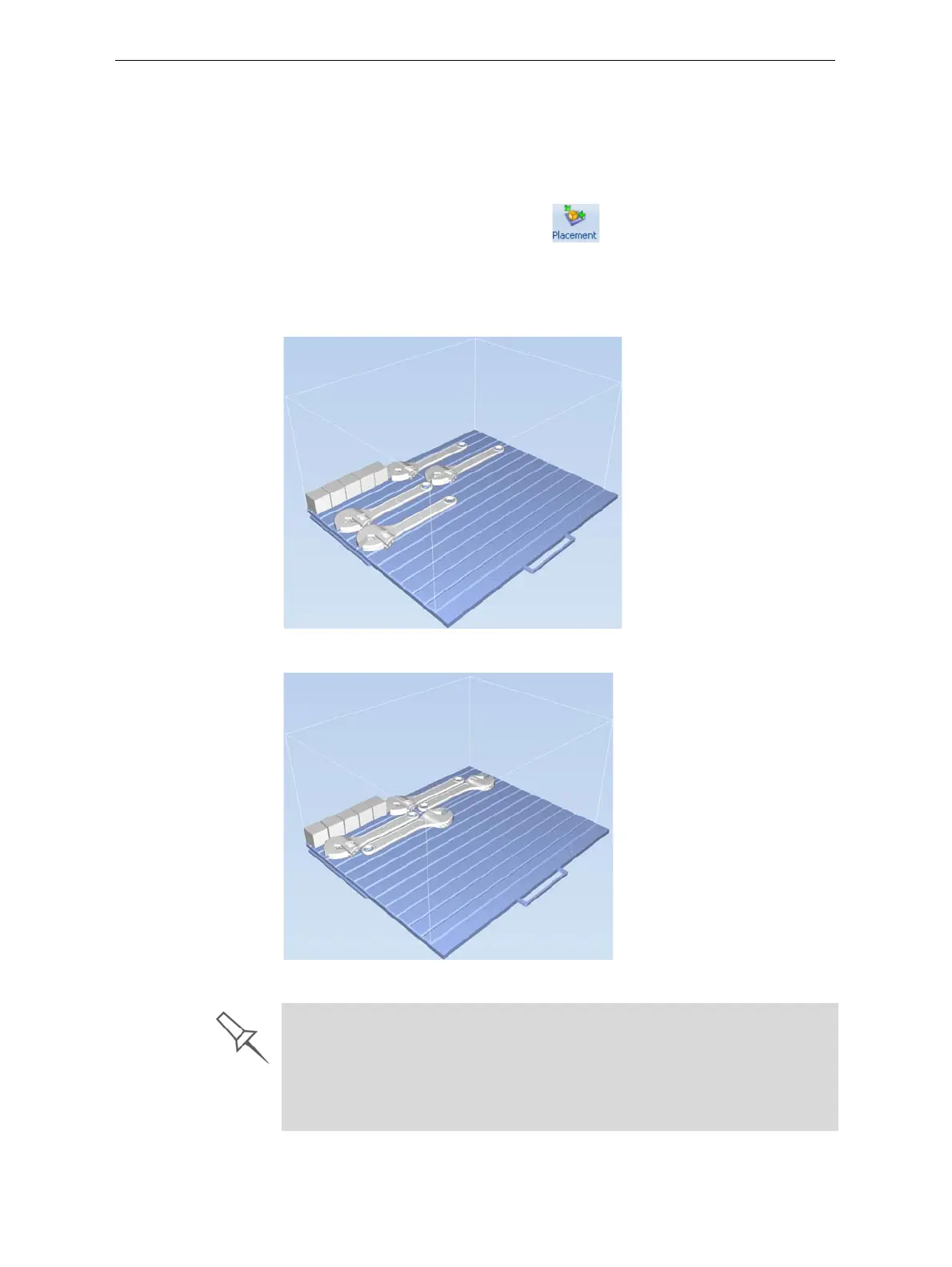

Theeffectsofautomaticpositioningareshowninthefiguresbelow.
Figure 5-34: Tray before objects are properly arranged
Figure 5-35: Tray arrangement after applying Automatic Placement
¾ For best results, arrange the tray with Automatic Placement, on the Tray
Settings ribbon, even if you inserted the objects with the Orient
Automatically option.
¾ The physical characteristics of each type of Model material you use can
affect the positioning of objects on the tray. Therefore, select materials
before running Automatic Placement.
