Stratasys Objet260 Connex - Replacing the Roller Waste Tube

Operating & Maintaining the Objet1000 Plus 3D Printer
6–58 DOC-06810 Rev. A
After examining the UV calibration results:
1. ClickNext.
2. RemovetheUVmeterandclosetheprintercover.Afterconfirmingthe
itemslistedinthewizardscreen,click
Next.

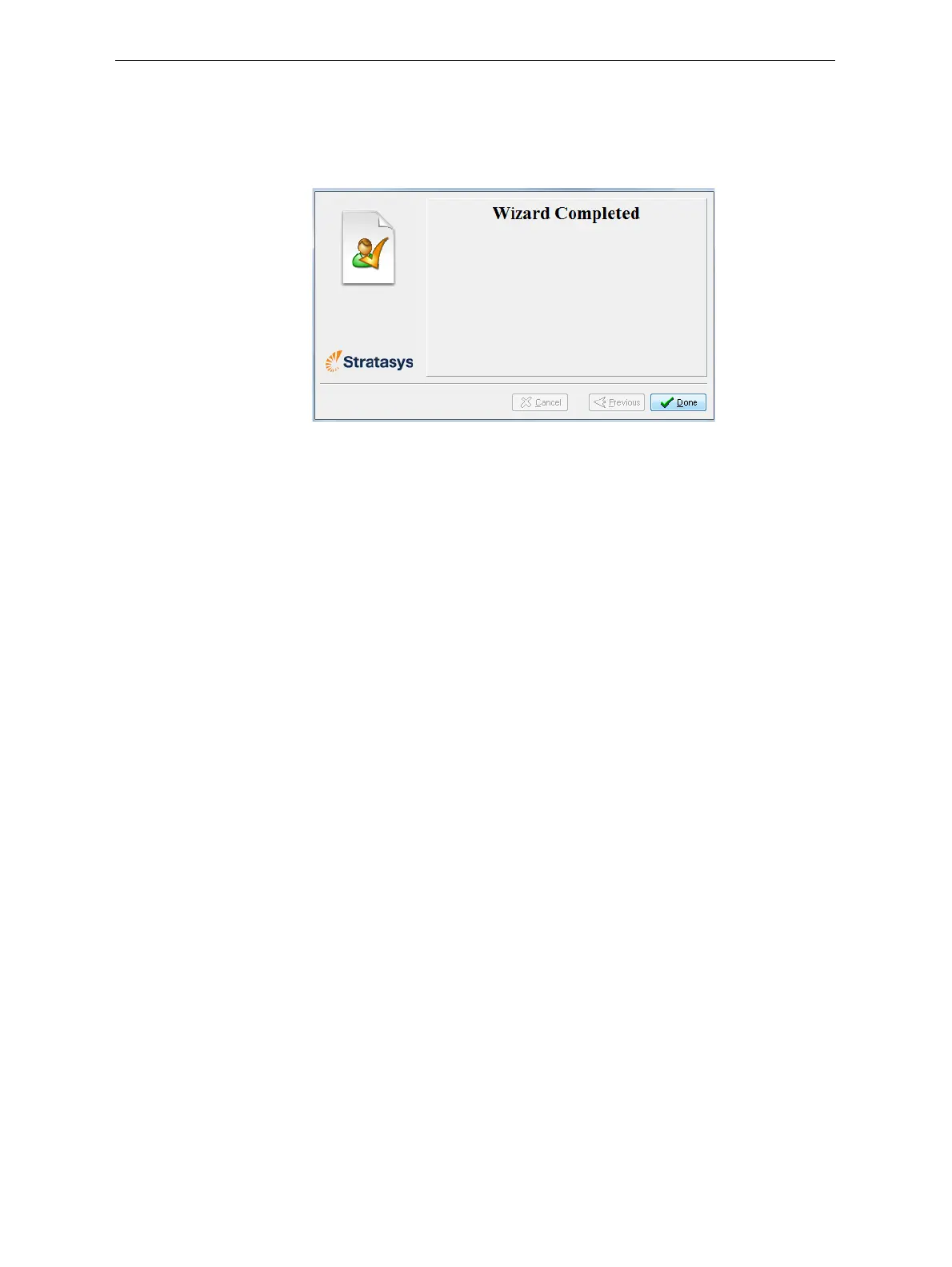

Figure 6-90: Final UV Calibration Wizard screen
Replacing the
Roller Waste
Tube
Asroutinemaintenance,youshouldreplacetherollerwastetubeevery500
hoursofprinting.
To replace the roller waste tube:
1. Prepare—
• twocleaningcloths
• oneNorprene
®
tube(suppliedintheStart‐UpKit)
2. MakesurethattheprinteriseitherinStandby2orinIdlemode.
3. Press
F8.
or—
FromtheOptionsmenu,select
Go to Head Inspection.
Theprintblockmovesforwardandthebuildtraylowers.
